WL300e

WL300E(A15-01) tilt ram Diagram

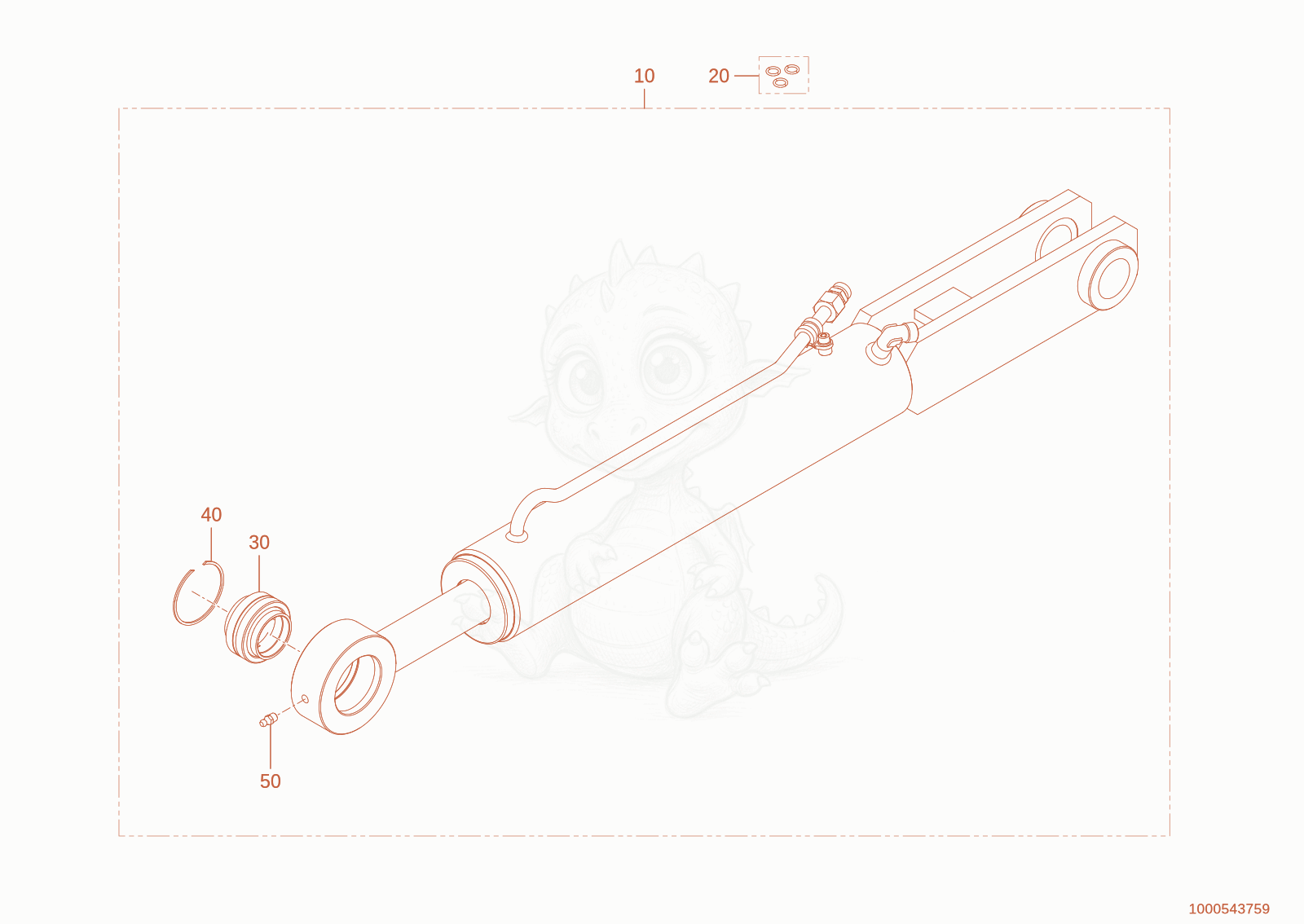

Exploded parts diagram of the tilt ram of a Wacker Neuson WL300E(A15-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000508149Not stocked
    hydraulic cylinder×1
  • 201000548832Not stocked
    cylinder seal kit×1
  • 301000224830
    $20.09
    Bearing - 1000224830×1
  • 401000223598
    $2.83
    LOCK RING - 1000223598×1
  • 501000050469
    $1.68
    grease nipple - 1000050469×1
