WL300e

WL300E(A15-01) Locking device Diagram

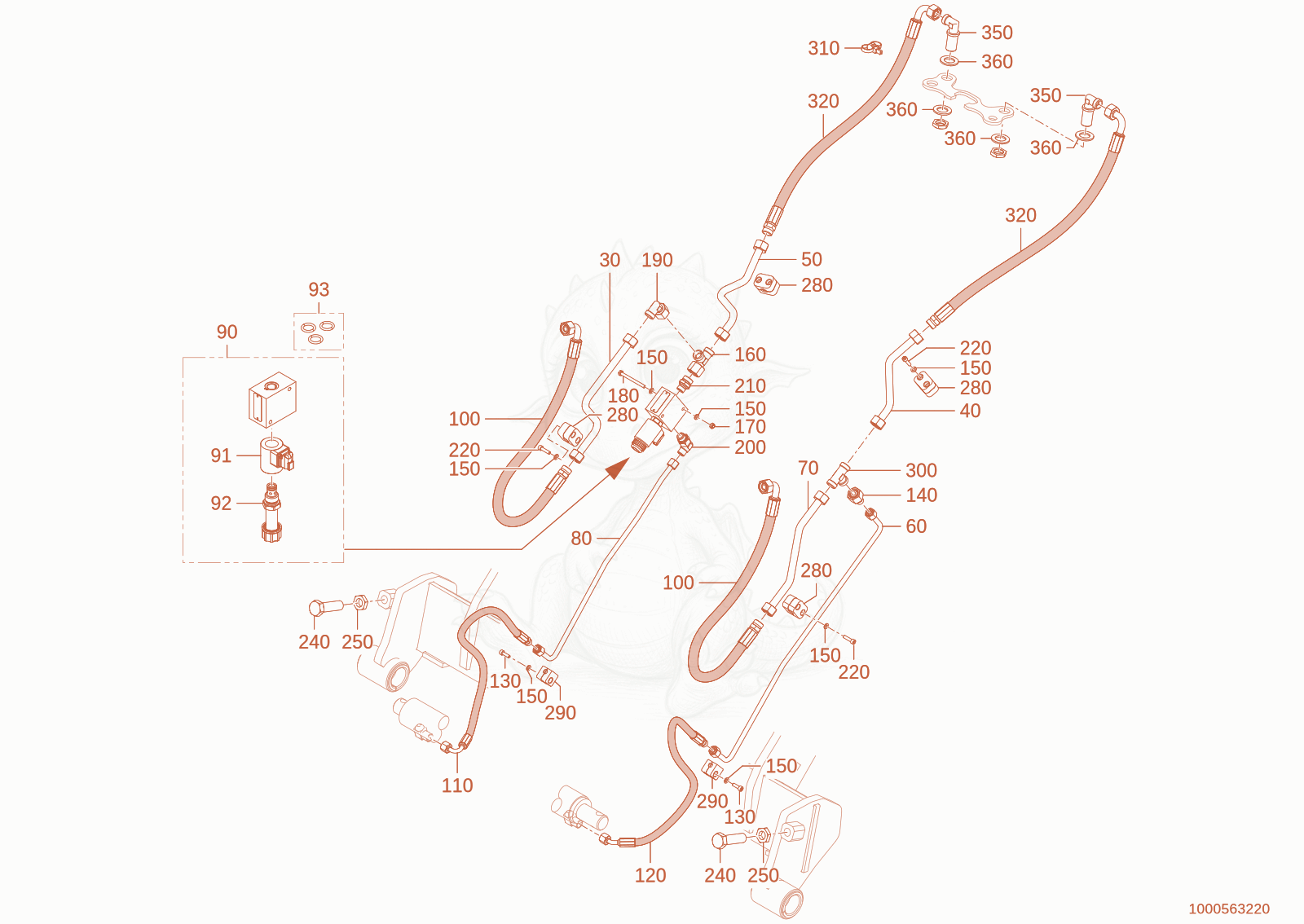

Exploded parts diagram of the Locking device of a Wacker Neuson WL300E(A15-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 301000548517Not stocked
    hydraulic pipe×1
  • 401000548518Not stocked
    hydraulic pipe×1
  • 501000548516Not stocked
    hydraulic pipe×1
  • 601000523624Not stocked
    hydraulic pipe×1
  • 701000548519Not stocked
    hydraulic pipe×1
  • 801000553123Not stocked
    hydraulic pipe×1
  • 901000335644
    $216.58
    Valve - 1000335644×1
  • 911000346390
    $64.57
    Solenoid - 1000346390×1
  • 921000265570
    $198.75
    drive valve - 1000265570×1
  • 931000367370Not stocked
    seal kit valve cartridge×1
  • 1001000555863Not stocked
    Hose×2
  • 1101000552039Not stocked
    Hose×1
  • 1201000552041Not stocked
    Hose×1
  • 1301000085456
    $0.05
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×2
  • 1401000020688Not stocked
    screw joint×1
  • 1501000015430Not stocked
    u-washer×11
  • 1601000015539Not stocked
    screw joint×1
  • 1701000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 1801000085313
    $0.78
    hex screw - 1000085313×2
  • 1901000015512Not stocked
    screw joint×1
  • 2001000264768
    $54.49
    EWE10LR 3/8" - 1000264768×1
  • 2101000226439
    $18.82
    GES15L/R 3/8" KONISCH.EINSCHR. - 1000226439×1
  • 2201000085457
    $0.13
    allen screw M6x25-8.8 A2C DIN912 - 1000085457×5
  • 2401000082423
    $2.84
    hex screw - 1000082423×2
  • 2501000433510Not stocked
    hexagon nut×2
  • 2801000222581
    $2.02
    CLAMP SHOE - 1000222581×4
  • 2901000434738Not stocked
    pipe clamp×2
  • 3001000085126
    $8.48
    T15LA3CX - 1000085126×1
  • 3101000399434Not stocked
    mounting×8
  • 3201000539041Not stocked
    Hose×2
  • 3501000028318Not stocked
    lock screw connection×2
  • 3601000082620
    $0.08
    washer 23 - 1000082620×4
