WL300e

WL300E(A15-01) wiring harness heating Diagram

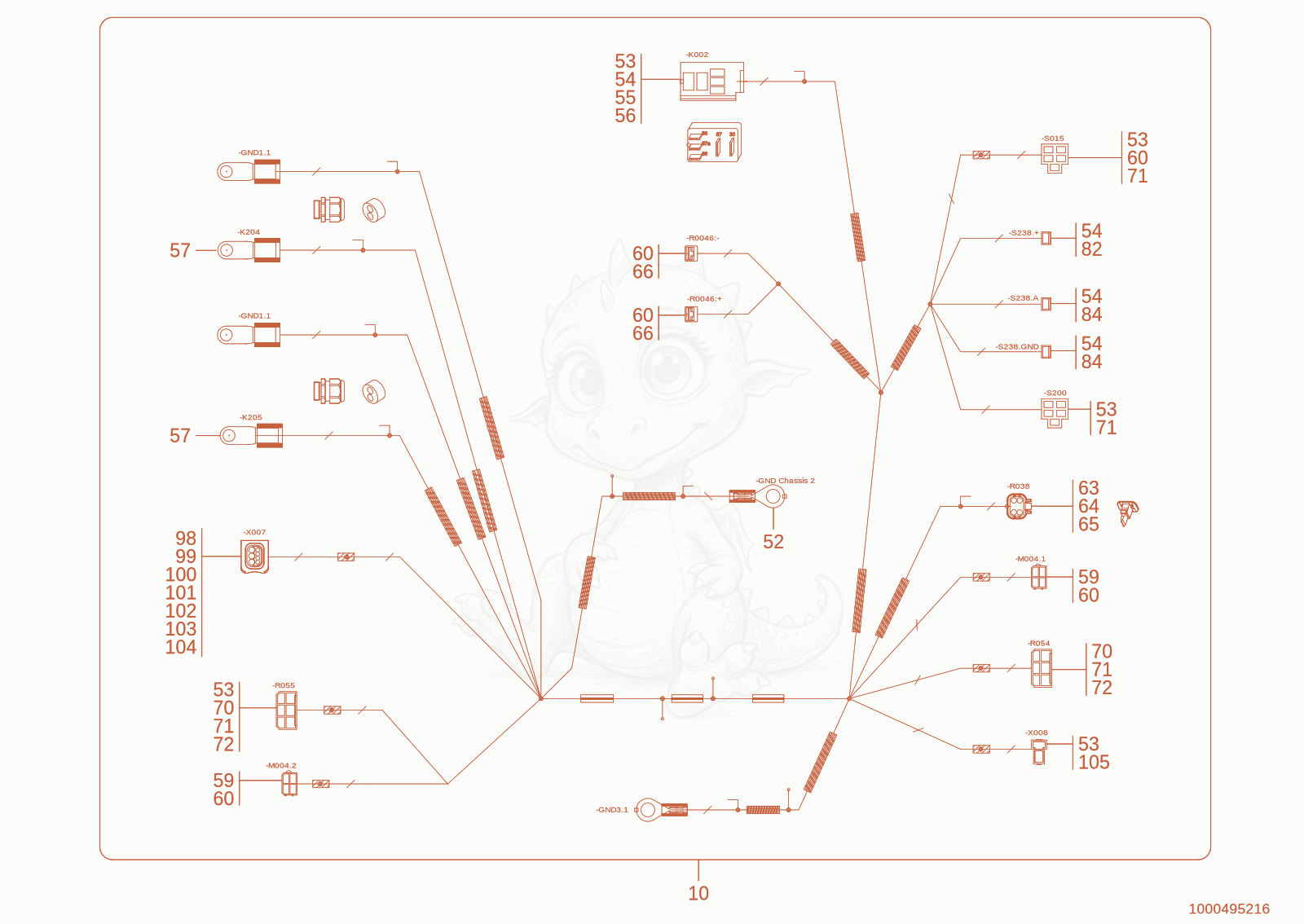

Exploded parts diagram of the wiring harness heating of a Wacker Neuson WL300E(A15-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000463938Not stocked
    wiring harness heating×1
  • 521000050028Not stocked
    cable lug×1
  • 531000095370
    $0.66
    plug sleeve - 1000095370×1
  • 541000106792
    $0.44
    plug sleeve - 1000106792×1
  • 551000100593
    $6.63
    sockets - 1000100593×1
  • 561000333390Not stocked
    relay×1
  • 571000454331Not stocked
    cable lug×1
  • 591000095325
    $2.11
    plug sleeve housing - 1000095325×1
  • 601000095371Not stocked
    plug sleeve×1
  • 631000359612Not stocked
    plug connection×1
  • 641000104286
    $11.39
    bushing housing - 1000104286×1
  • 651000104287
    $0.99
    wedge - 1000104287×1
  • 661000019583Not stocked
    plug sleeve housing×1
  • 701000095337
    $2.68
    plug sleeve housing - 1000095337×1
  • 711000295703
    $3.20
    plug sleeve - 1000295703×1
  • 721000095372
    $2.77
    plug sleeve - 1000095372×1
  • 771000086664
    $4.92
    plug sleeve housing - 1000086664×1
  • 821000104405
    $1.41
    Insulating sleeve - 1000104405×1
  • 841000104405
    $1.41
    Insulating sleeve - 1000104405×1
  • 991000303822
    $1.13
    Tube - 1000303822×1
  • 1001000171552
    $1.32
    TUBE - 1000171552×1
  • 1011000170628
    $2.97
    Pin contact - 1000170628×1
  • 1021000104738
    $1.51
    seal - 1000104738×1
  • 1031000246747
    $1.41
    seal - 1000246747×1
  • 1041000104739
    $16.29
    seal - 1000104739×1
  • 1051000095323
    $3.39
    plug sleeve housing - 1000095323×1
