WL34 Wheel Loader

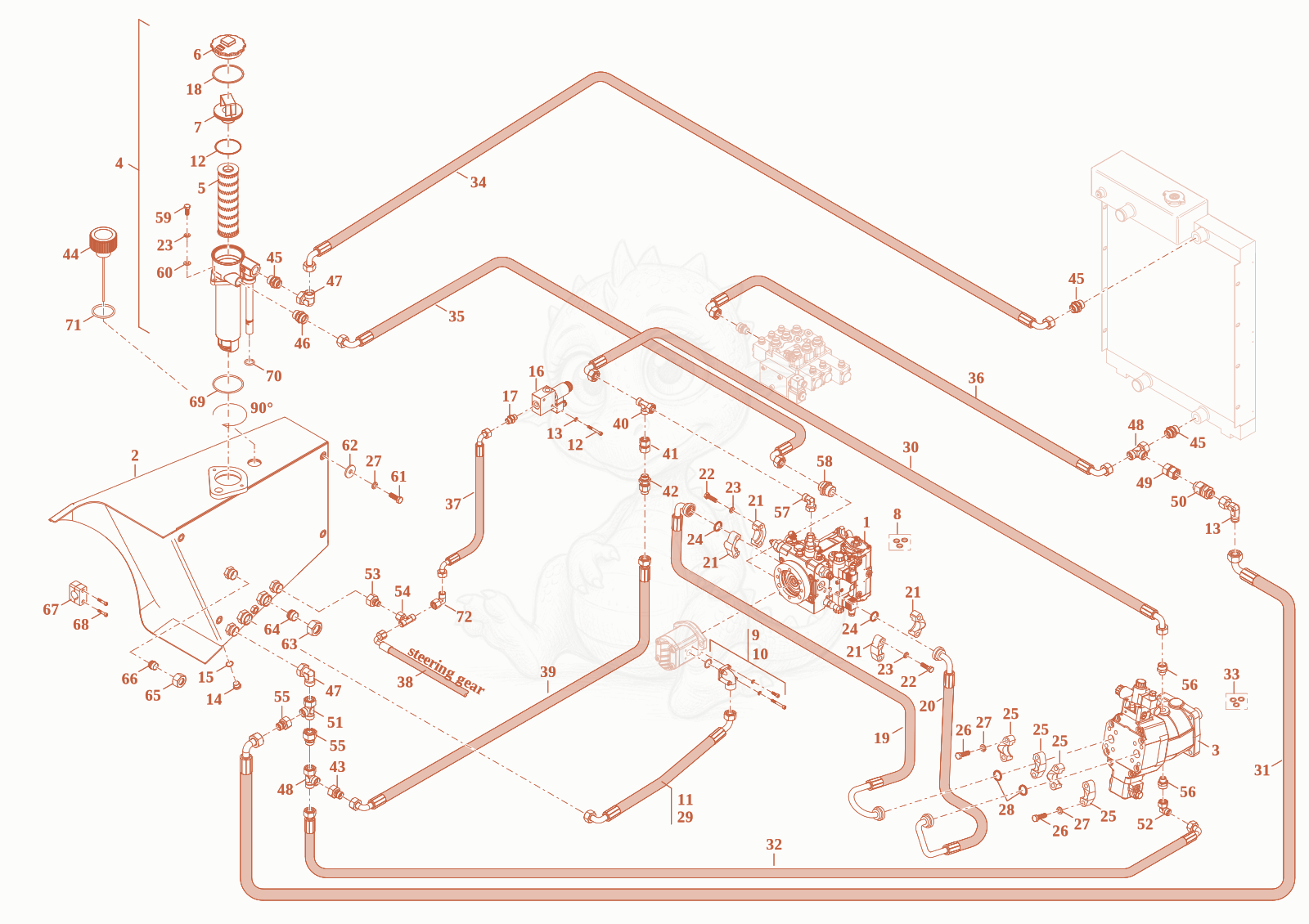

WL34 drive unit Diagram

Exploded parts diagram of the drive unit of a Wacker Neuson WL34, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000207374
    $5,652.01
    Displacementpump 1000207374×1
  • 21000213093
    $2,192.71
    Tank Hydraulic 1000213093×1
  • 31000203034
    $4,751.80
    Displacementmotor 1000203034×1
  • 41000553808Not stocked
    Conversion kit return-suction filter×1
  • 51000537153Not stocked
    filter element×1
  • 61000223085
    $81.55
    Cover - 1000223085×1
  • 71000226496
    $39.06
    SOCKET - 1000226496×1
  • 81000224309
    $927.36
    seal kit displace. Pump - 1000224309×1
  • 91000021697Not stocked
    screw joint×1
  • 101000236176
    $84.52
    PUMP FLANGE - 1000236176×2
  • 111000254447
    $45.78
    SLHYDR 2SN 20 PN22 90 PN22 0 L570,0 - 1000254447×1
  • 121000224914
    $3.07
    Ring - 1000224914×1
  • 131000015513Not stocked
    screw joint×1
  • 141000222699
    $14.02
    DIN 908, M18x1,5 124318 15 000 1 - 1000222699×1
  • 151000222584
    $2.07
    CU-Ring 18x 24x1.5 046018 24 000 100 - 1000222584×1
  • 161000199114
    $211.27
    Valve - 1000199114×1
  • 171000015491Not stocked
    screw joint×1
  • 181000225482
    $13.33
    Gasket - 1000225482×1
  • 191000377603Not stocked
    Hose×1
  • 201000221694
    $200.20
    Slhydr4Sh20Sf3490Sf1180L60000 1000221694×1
  • 211000028689Not stocked
    half flange×4
  • 221000015346Not stocked
    hex screw×8
  • 231000022016Not stocked
    spring washer×10
  • 241000224256
    $5.02
    Ring - 1000224256×2
  • 251000100531
    $10.08
    half flange - 1000100531×4
  • 261000085419
    $1.05
    hex screw - 1000085419×8
  • 271000022017Not stocked
    spring washer×12
  • 281000225273
    $8.25
    Ring - 1000225273×2
  • 291000221370Not stocked
    Hose×1
  • 301000222281
    $42.08
    SLHYDR 1SN 12 PN15 90 PN15 90 L700,0 135 - 1000222281×1
  • 311000383188Not stocked
    Hose×1
  • 321000221729
    $54.03
    SLHYDR 1SN 16 PN18 0 PN18 90 L890,0 - 1000221729×1
  • 331000224307
    $582.34
    KIT-SEAL - 1000224307×1
  • 341000221227
    $61.84
    SLHYDR 1SN 16 PN18 90 PN18 90 L690,0 0 - 1000221227×1
  • 351000217992
    $78.55
    SLHYDR 1SN 20 PN22 45 PN22 90 L1050 0 - 1000217992×1
  • 361000221688
    $75.72
    Slhydr1Sn16Pn1845Pn1845L1600S90 1000221688×1
  • 371000217728
    $47.72
    SLHYDR 1SN 12 PN15 90 PN15 90 L750,0 0 - 1000217728×1
  • 381000220971
    $54.16
    SLHYDR 1SN 8,0PN10 75 PN10 90 L2000 180 - 1000220971×1
  • 391000217727
    $38.12
    SLHYDR 1SN 12 PN15 0 PN15 90 L750,0 - 1000217727×1
  • 401000015539Not stocked
    screw joint×1
  • 411000020801
    $12.87
    GZ15LA3C - 1000020801×1
  • 421000194724
    $41.60
    Valve - 1000194724×1
  • 431000085037
    $8.78
    RED18/15LOMDA3C - 1000085037×1
  • 441000231370
    $51.35
    FILTER-HYDRAULICS - 1000231370×1
  • 451000015565Not stocked
    screw joint×3
  • 461000085096
    $9.05
    GE22LREDOMDA3C - 1000085096×1
  • 471000020261
    $17.85
    EW22LOMD - 1000020261×2
  • 481000015517Not stocked
    screw joint×3
  • 491000018398
    $21.62
    GZ18LA3C - 1000018398×1
  • 501000194721
    $61.00
    Valve - 1000194721×1
  • 511000085045
    $31.31
    EL22LOMDA3C - 1000085045×1
  • 521000015513Not stocked
    screw joint×1
  • 531000181410
    $29.56
    SCREW JOINT - 1000181410×1
  • 541000417279
    $17.79
    EL10LOMD - 1000417279×1
  • 551000028177Not stocked
    screw joint×2
  • 561000085088
    $9.17
    GE18LM18X1,5EDOMDA3C - 1000085088×2
  • 571000015512Not stocked
    screw joint×1
  • 581000417356
    $31.72
    GE22LM33X2EDOMD - 1000417356×1
  • 591000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 601000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 611000085404
    $0.93
    hex screw - 1000085404×4
  • 621000223005
    $1.50
    Washer - 1000223005×4
  • 631000050508Not stocked
    union nut×1
  • 641000417359Not stocked
    blind screw union×1
  • 651000050507Not stocked
    union nut×1
  • 661000085041
    $4.67
    VKA22LA3C - 1000085041×1
  • 671000222615
    $3.49
    CLAMP SHOE - 1000222615×1
  • 681000015369Not stocked
    cheese head screw×2
  • 691000224909
    $8.05
    Ring - 1000224909×1
  • 701000224858
    $11.50
    Ring - 1000224858×1
  • 711000224937
    $2.34
    O-RING - 1000224937×1
  • 721000015510Not stocked
    screw joint×1
