WL52 Wheel Loader

WL52 Tubing traction drive hydraulic Diagram

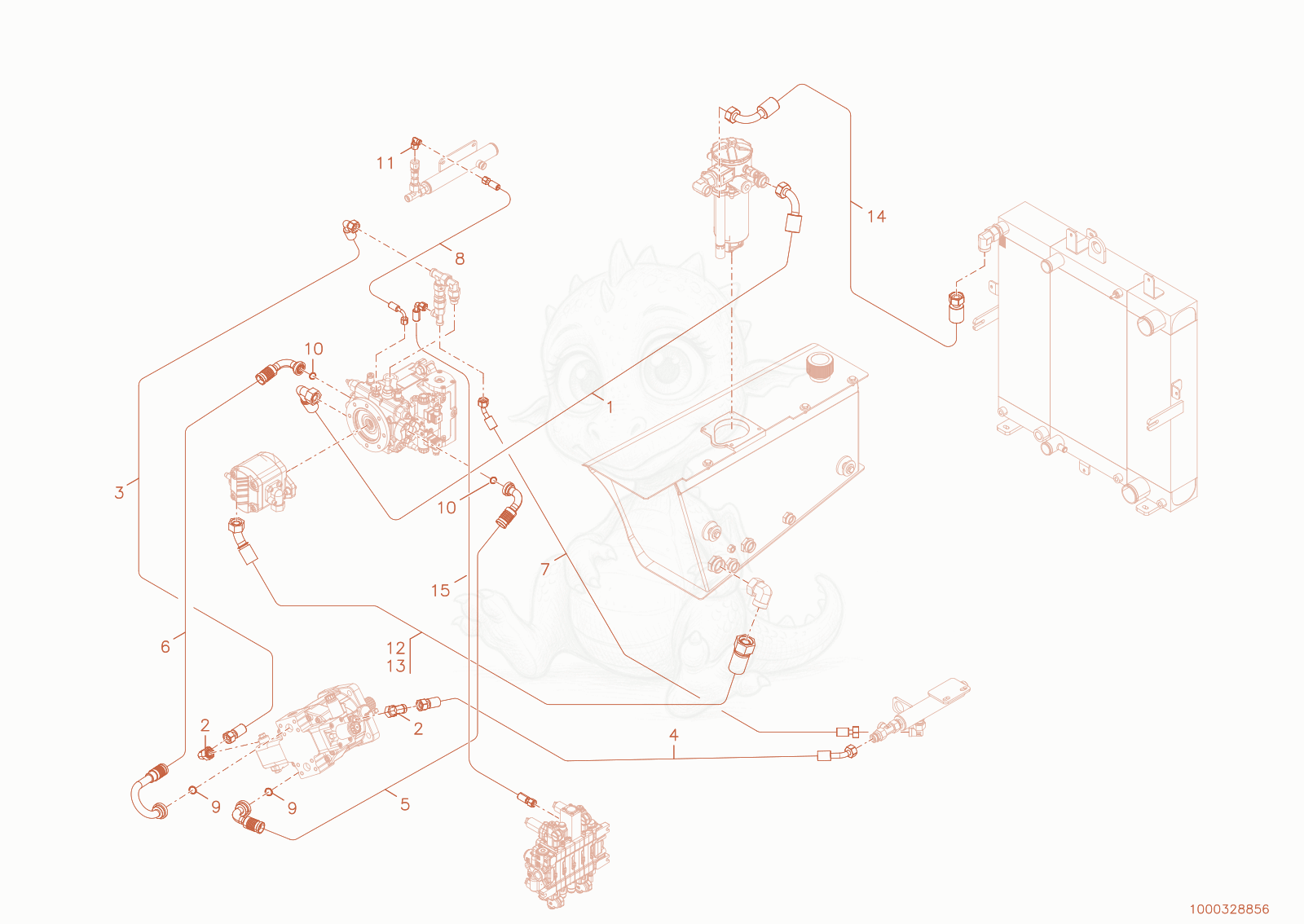

Exploded parts diagram of the Tubing traction drive hydraulic of a Wacker Neuson WL52, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000221885
    $112.72
    Slhydr1Sn25Pn2875Pn2890L1100180 1000221885×1
  • 21000015513Not stocked
    screw joint×2
  • 31000307521Not stocked
    Hose×1
  • 41000104106
    $56.19
    SLHYDR 2SC 16 PN18 0 PN18 45 L800,0 - 1000104106×1
  • 51000221869
    $310.23
    Slhydr4Sh25Sf190Sf1190L10000 1000221869×1
  • 61000305349
    $232.11
    Slhydr4Sh25Sf190Sf11180L6300355 1000305349×1
  • 71000307547Not stocked
    Hose×1
  • 81000188350
    $46.68
    SLHYDR 2SC 8,0PN10 90 PN10 0 L550,0 0 - 1000188350×1
  • 91000225254
    $4.34
    SQUARE RING - 1000225254×2
  • 101000225273
    $8.25
    Ring - 1000225273×2
  • 111000015510Not stocked
    screw joint×1
  • 121000314852Not stocked
    Hose×1
  • 131000332745Not stocked
    Hose×1
  • 141000307525Not stocked
    Hose×1
  • 151000313781Not stocked
    Hose×1
