WL52 Wheel Loader - Canopy

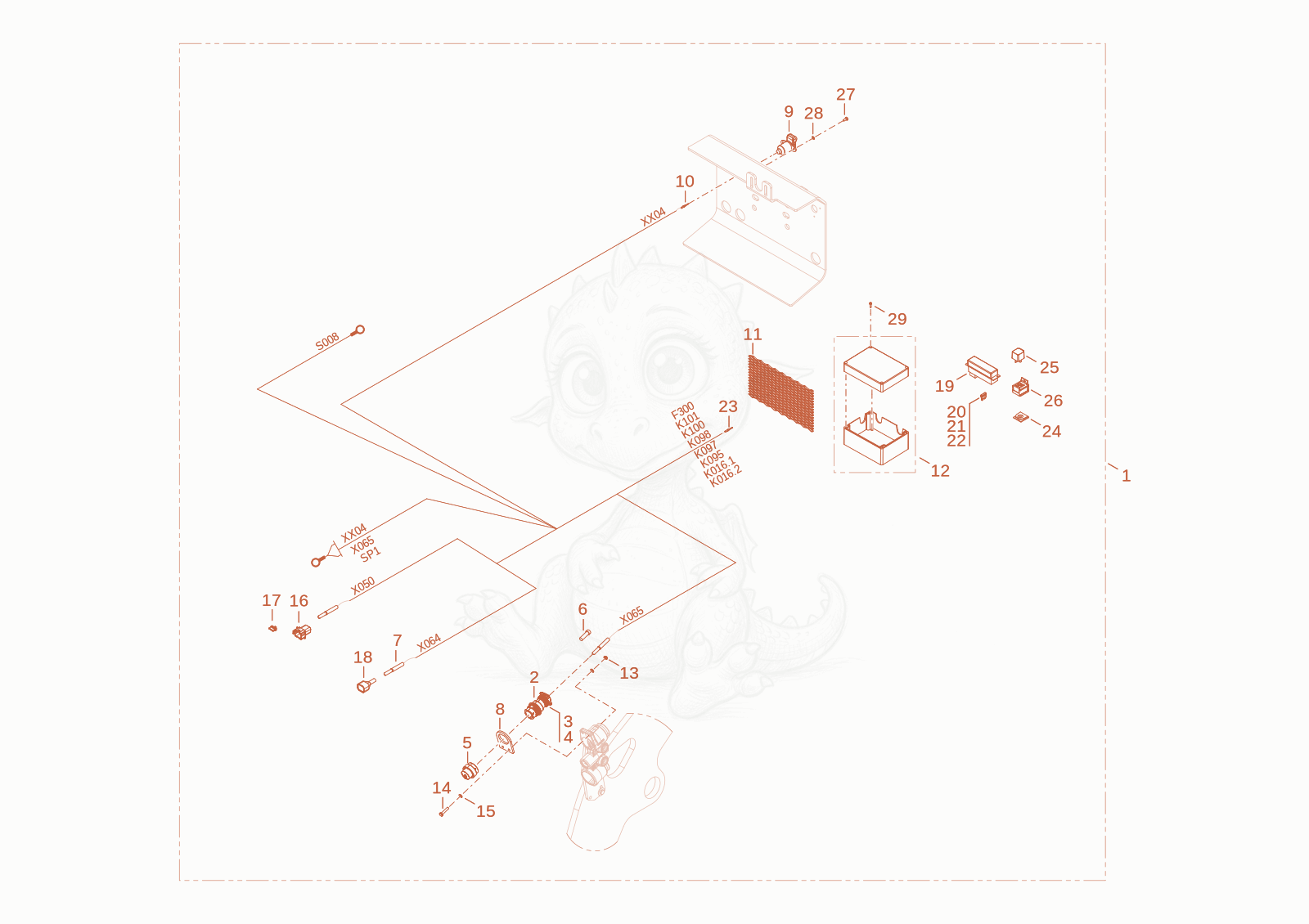

WL52CANOPY socket Diagram

Exploded parts diagram of the socket of a Wacker Neuson WL52CANOPY, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000307859Not stocked
    connection cable×1
  • 21000275852
    $183.05
    Pin housing - 1000275852×1
  • 31000275853
    $6.15
    Spring washer - 1000275853×1
  • 41000275854
    $9.69
    Nut - 1000275854×1
  • 51000051980
    $38.40
    Cover - 1000051980×1
  • 61000030446Not stocked
    plug×7
  • 71000229896
    $2.77
    PIN-WIRE,ELECTRICAL - 1000229896×12
  • 81000276162
    $59.68
    Bracket - 1000276162×1
  • 91000229809
    $23.63
    socket - 1000229809×1
  • 101000229925
    $1.41
    PLUG SLEEVE - 1000229925×11
  • 111000335241Not stocked
    protecting screen×1
  • 121000190311
    $247.40
    Housing - 1000190311×1
  • 131000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 141000015339Not stocked
    hex screw×2
  • 151000015430Not stocked
    u-washer×4
  • 161000229856
    $24.66
    HOUSING-PLUG - 1000229856×1
  • 171000229852
    $1.41
    locking - 1000229852×1
  • 181000145426
    $11.06
    Rubber cap - 1000145426×1
  • 191000102290
    $77.37
    Fuse box - 1000102290×1
  • 201000052491Not stocked
    fuse×1
  • 211000085684
    $0.63
    FUSE - 1000085684×1
  • 221000085683
    $0.55
    FUSE - 1000085683×1
  • 231000229869
    $1.41
    PLUG SLEEVE - 1000229869×30
  • 241000100642
    $8.58
    sleeve - 1000100642×1
  • 251000193647
    $16.60
    relay - 1000193647×7
  • 271000085494
    $1.08
    allen screw M 5x12-8.8 A2C DIN912 - 1000085494×2
  • 281000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×2
  • 291000082474
    $0.80
    allen screw M4x16-8.8 A2C-DIN912 - 1000082474×4
