Wheel Loader

WL55/WL57 harness wiring chassis Diagram

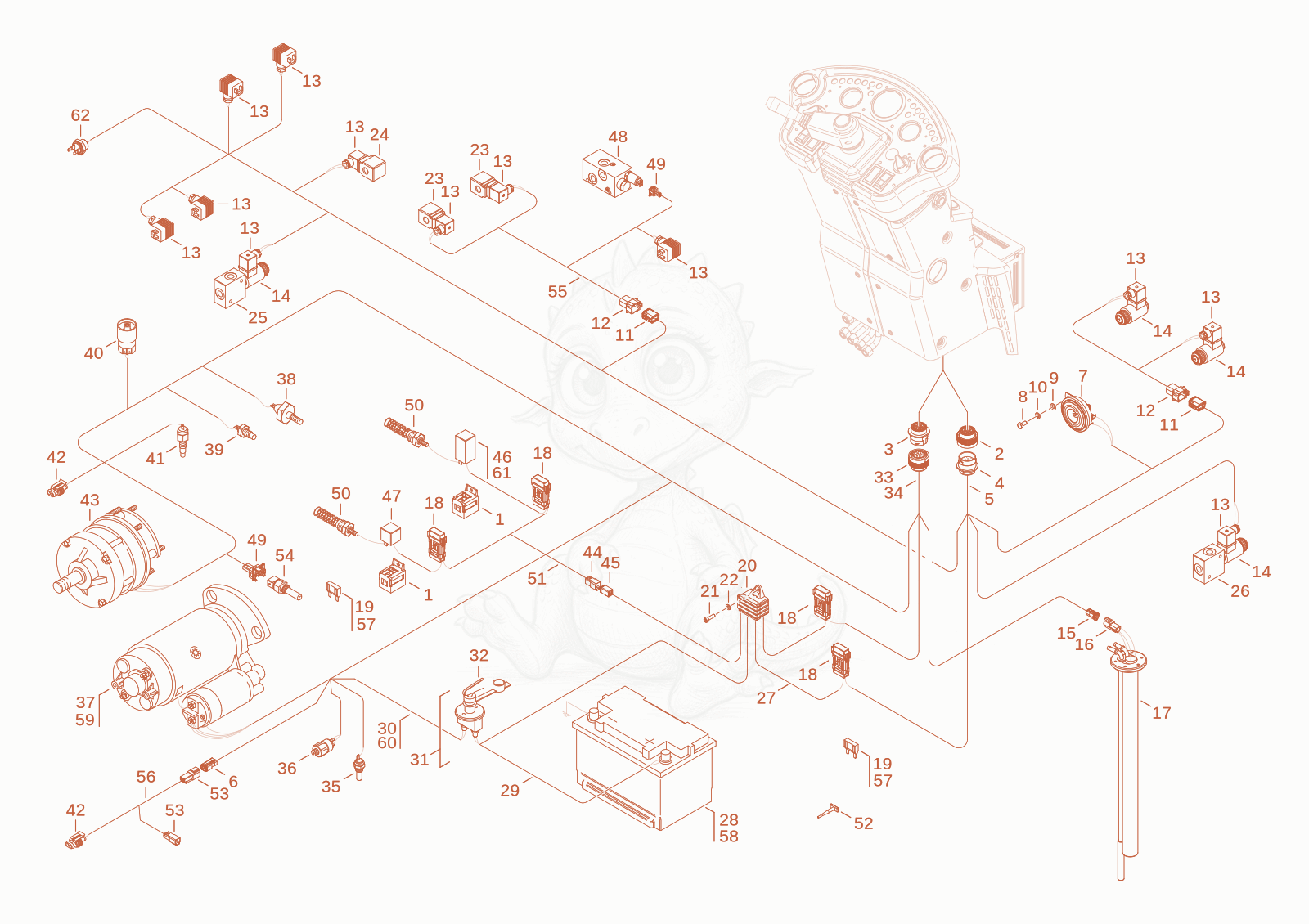

Exploded parts diagram of the harness wiring chassis of a Wacker Neuson WL55/WL57, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000207057
    $11.15
    bracket relay - 1000207057×2
  • 21000229799
    $113.05
    Housing - 1000229799×1
  • 31000229777
    $103.16
    Housing - 1000229777×1
  • 41000229798
    $125.88
    Housing - 1000229798×1
  • 51000274682
    $2,437.83
    Mainhairness 1000274682×1
  • 61000229795
    $9.42
    HOUSING-PLUG - 1000229795×1
  • 71000310585Not stocked
    signal horn×1
  • 81000019136Not stocked
    hex screw×1
  • 91000015431Not stocked
    washer×1
  • 101000030951Not stocked
    spring washer×1
  • 111000229857
    $49.27
    HOUSING-PLUG - 1000229857×2
  • 121000229856
    $24.66
    HOUSING-PLUG - 1000229856×2
  • 131000229813
    $19.48
    plug sleeve housing - 1000229813×11
  • 141000226077
    $86.05
    MAGNET SPOOL - 1000226077×4
  • 151000229808
    $8.99
    HOUSING-PLUG - 1000229808×1
  • 161000229812
    $8.84
    HOUSING-PLUG - 1000229812×1
  • 171000210744
    $523.51
    SENSOR-FUEL LEVEL - 1000210744×1
  • 181000155563
    $28.49
    fuse holder - 1000155563×4
  • 191000015302
    $3.50
    fuse - 1000015302×1
  • 201000224821
    $44.10
    Distributor - 1000224821×1
  • 211000222834
    $26.09
    SCREW - 1000222834×1
  • 221000015430Not stocked
    u-washer×1
  • 231000226145
    $261.43
    magnet spool - 1000226145×2
  • 241000226006
    $251.08
    magnet spool - 1000226006×1
  • 251000205490
    $262.98
    Valve 1000205490×1
  • 261000199114
    $211.27
    Valve - 1000199114×1
  • 271000213213
    $354.52
    Cable - 1000213213×1
  • 281000208090Not stocked
    starter battery×1
  • 291000213211
    $265.99
    Cable 1000213211×1
  • 301000208651
    $237.01
    cable - 1000208651×1
  • 311000254627
    $36.00
    BATTERY DISCONNECT SWITCH COMPLETE - 1000254627×1
  • 321000201894
    $18.95
    Key - 1000201894×1
  • 331000229778
    $194.93
    Housing - 1000229778×1
  • 341000214482
    $2,422.04
    Cableharness 1000214482×1
  • 351000157953
    $75.02
    Temperature switch - 1000157953×1
  • 361000216733
    $54.92
    pressure switch - 1000216733×1
  • 371000164332
    $1,067.26
    Starter 1000164332×1
  • 371000299602
    $457.41
    Starterreman 1000299602×1
  • 381000108972
    $31.23
    SWITCH-OIL PRESSURE - 1000108972×1
  • 391000000493Not stocked
    temperature sensor×1
  • 401000150373
    $17.18
    dirt indicator - 1000150373×1
  • 411000087381Not stocked
    temperature sensor×1
  • 421000110449
    $2.46
    plug bushing - 1000110449×1
  • 431000182341
    $425.29
    Generator 1000182341×1
  • 441000229841
    $36.42
    HOUSING-PLUG - 1000229841×1
  • 451000229839
    $23.27
    HOUSING-PLUG - 1000229839×1
  • 461000155720
    $542.63
    time relay - 1000155720×1
  • 471000207058
    $55.34
    Relais - 1000207058×1
  • 481000207433
    $1,253.31
    Valve 1000207433×1
  • 491000229787
    $27.86
    plug sleeve housing - 1000229787×2
  • 501000108967
    $99.08
    Glow plug - 1000108967×2
  • 511000212466
    $374.29
    CABLE HARNESS - 1000212466×1
  • 521000214150
    $15.43
    Tool - 1000214150×1
  • 531000229794
    $5.18
    HOUSING-PLUG - 1000229794×1
  • 541000170506
    $220.53
    Temperature sensor - 1000170506×1
  • 551000214486
    $238.70
    wiring harness valve - 1000214486×1
  • 561000199582
    $296.45
    wiring harness air condition - 1000199582×1
  • 571000015298
    $3.25
    FUSE - 1000015298×1
  • 581000301731
    $325.19
    Battery 1000301731×1
  • 591000254884
    $714.21
    Starter 1000254884×1
  • 591000299580
    $631.13
    Starterreman 1000299580×1
  • 601000254626
    $251.59
    battery cable - 1000254626×1
  • 611000248741
    $169.83
    preheating relay - 1000248741×1
  • 621000226308
    $63.44
    temperature switch - 1000226308×1
