WL60

WL60STAGEV drive lock Diagram

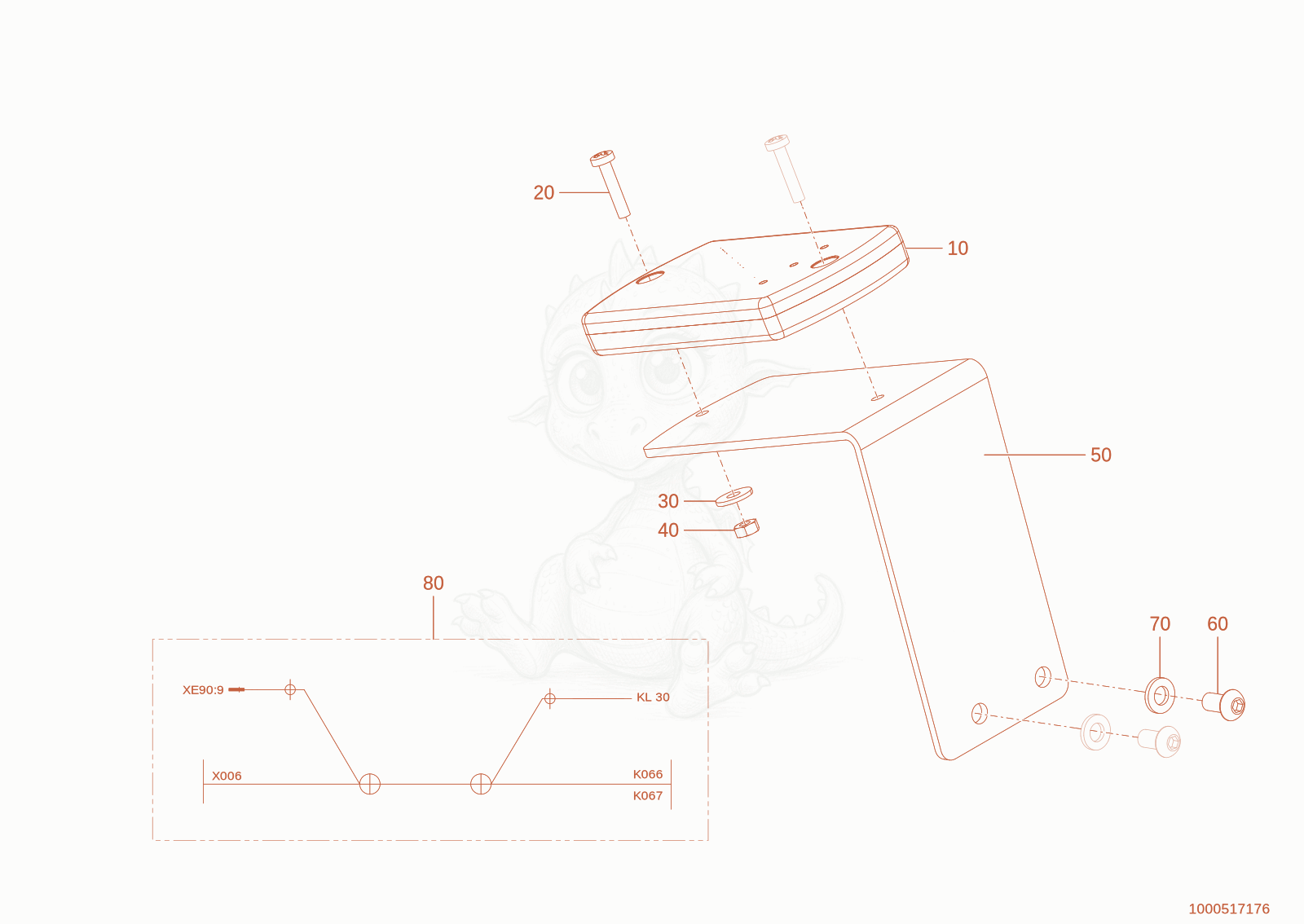

Exploded parts diagram of the drive lock of a Wacker Neuson WL60STAGEV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000533358Not stocked
    keypad×1
  • 201000082362
    $0.75
    ovalhead screw - 1000082362×2
  • 301000222990
    $1.42
    Washer - 1000222990×2
  • 401000085580
    $0.72
    hexagon nut - 1000085580×2
  • 501000405926
    $103.91
    Bracket - 1000405926×1
  • 601000165459
    $1.33
    screw M6x12 ISO7380-2 - 1000165459×2
  • 701000015430Not stocked
    u-washer×2
  • 801000406202Not stocked
    wiring harness×1
