WL70

WL70STAGEV lift cylinder Diagram

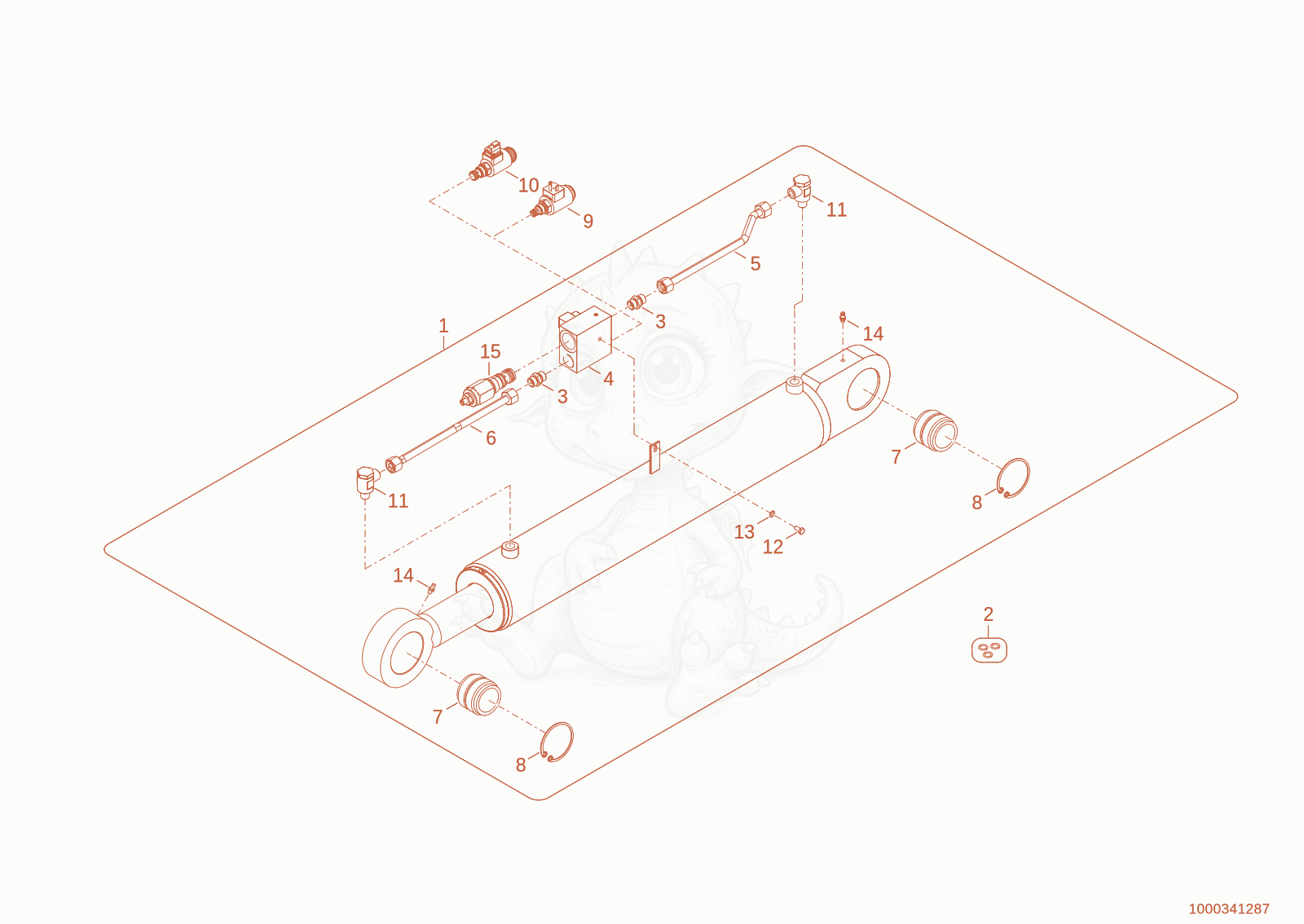

Exploded parts diagram of the lift cylinder of a Wacker Neuson WL70STAGEV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000338520Not stocked
    lift cylinder×1
  • 21000315393Not stocked
    cylinder seal kit×1
  • 31000028596Not stocked
    screw joint×2
  • 41000281616
    $511.61
    Loweringbrakevalveblockcpl75X80X40 1000281616×1
  • 51000341289Not stocked
    pipe line×1
  • 61000341481Not stocked
    pipe line×1
  • 71000224250
    $31.66
    Bearing - 1000224250×2
  • 81000255353
    $7.74
    LOCK RING - 1000255353×2
  • 91000208526
    $196.72
    Solenoid Valve - 1000208526×1
  • 101000310540
    $423.93
    Valve - 1000310540Unknown×1
  • 101000560203Not stocked
    magnet spool×1
  • 111000226055
    $64.53
    WE SCHWENK12L/ M18X1,5 - 1000226055×2
  • 121000020553Not stocked
    hex screw×1
  • 131000015430Not stocked
    u-washer×1
  • 141000015476Not stocked
    grease nipple×2
  • 151000255347
    $461.02
    VALVE CARTRIDGE - 1000255347×1
