WL70T4F Tubing cooler Diagram

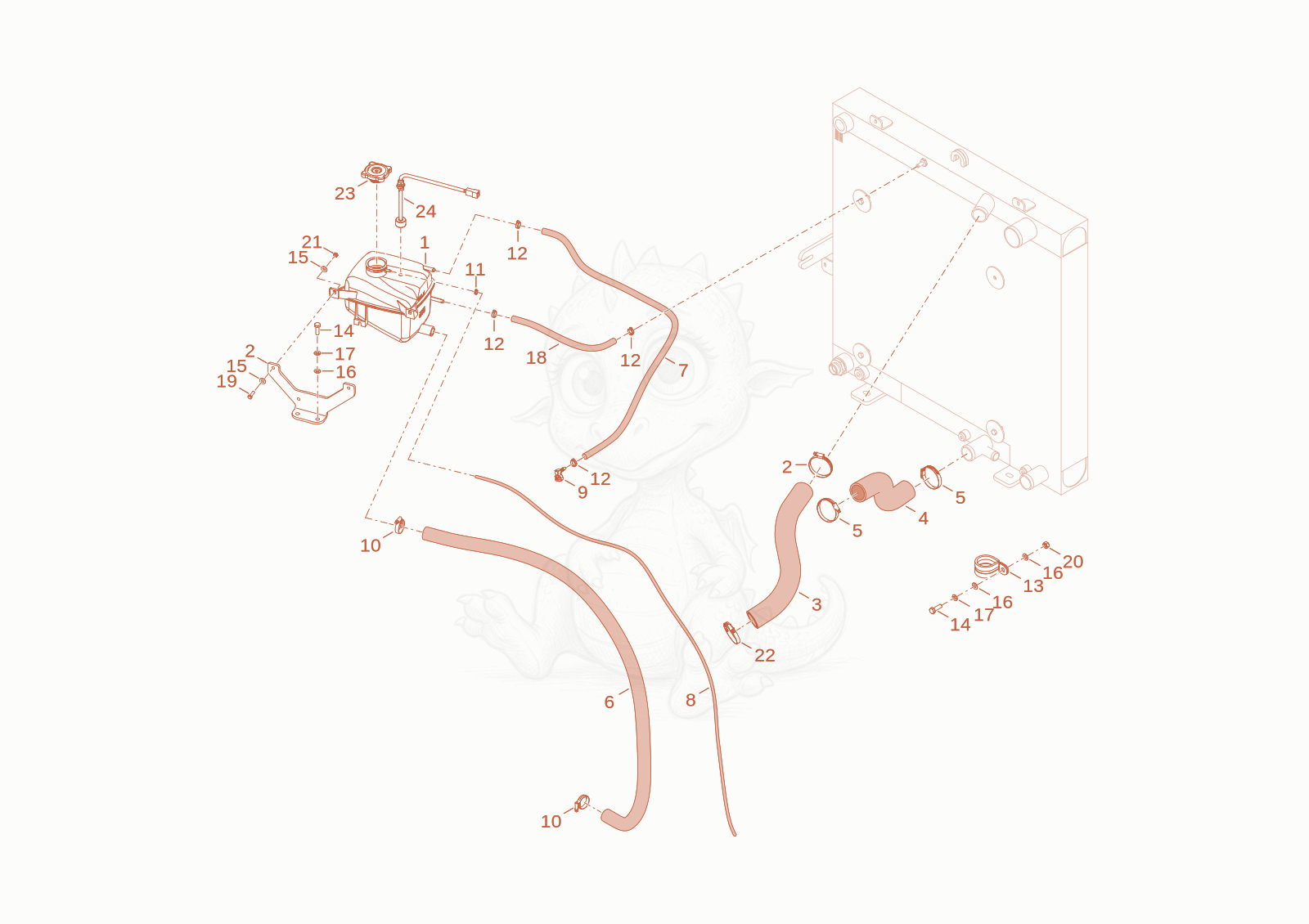

Exploded parts diagram of the Tubing cooler of a Wacker Neuson WL70T4F, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000331123Not stocked
    regulation container×1
  • 21000343968
    $74.41
    Bracket - 1000343968×1
  • 31000342363Not stocked
    Cooling Water Hose×1
  • 41000289191
    $21.52
    Cooling Water Hose - 1000289191×1
  • 51000223544
    $3.30
    Clamp - 1000223544×2
  • 61000474841Not stocked
    water hose×1.35
  • 71000301204
    $5.98
    Cooling Water Hose - 1000301204×0.93
  • 81000333903
    $2.41
    Hose - 1000333903×1.3
  • 91000286563
    $11.74
    plug coupling - 1000286563×1
  • 101000223538
    $3.03
    Clamp - 1000223538×2
  • 111000222603
    $2.41
    clamp - 1000222603×1
  • 121000300233
    $3.15
    hose clamp - 1000300233×4
  • 131000304270
    $11.46
    clamp - 1000304270×2
  • 141000015431Not stocked
    washer×2
  • 151000222604
    $1.03
    Washer M 6x20x1,25 - 1000222604×6
  • 161000015343Not stocked
    hex screw×2
  • 171000030951Not stocked
    spring washer×2
  • 181000301204
    $5.98
    Cooling Water Hose - 1000301204×0.3
  • 191000018400Not stocked
    hex screw×3
  • 201000013022Not stocked
    hexagon nut×2
  • 211000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×3
  • 221000320377Not stocked
    hose clamp×2
  • 231000405933
    $22.83
    Cover - 1000405933×1
  • 241000405936
    $75.15
    Cover - 1000405936×1
