WP1540A

WP1540AUS Fuel tank Diagram

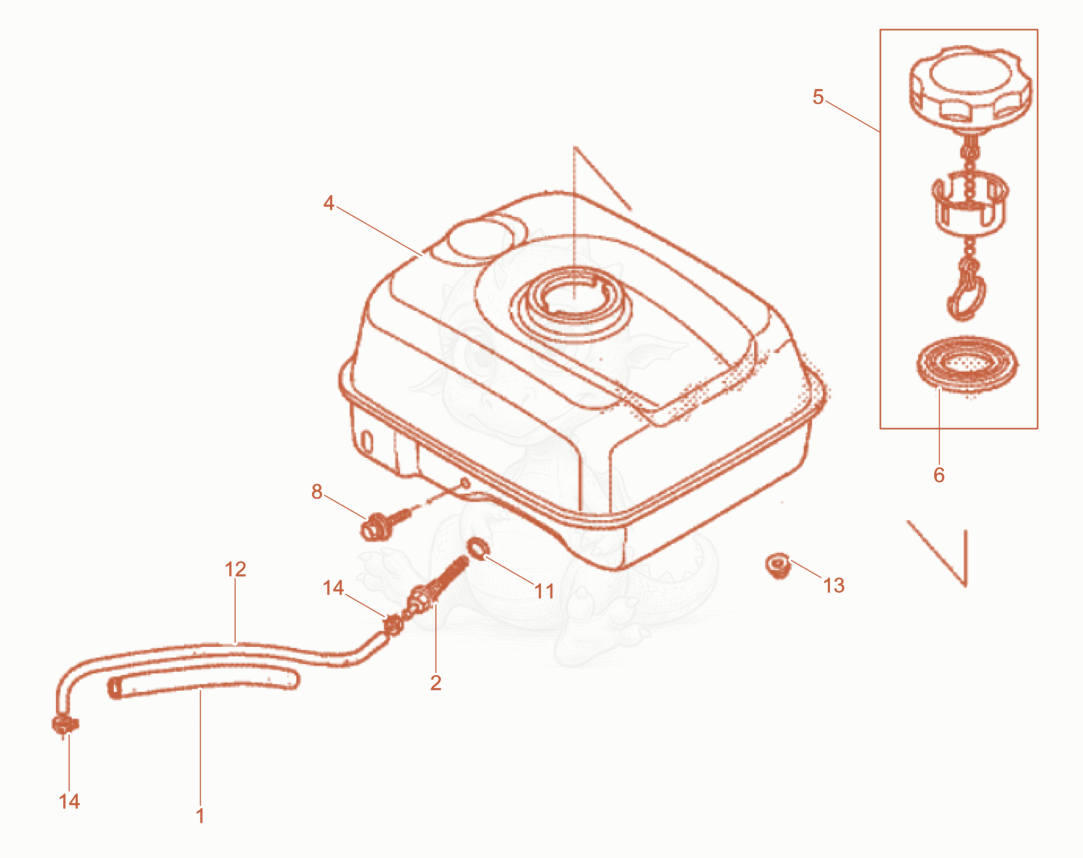

Exploded parts diagram of the Fuel tank of a Wacker Neuson WP1540AUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000081764
    $6.03
    hose cover - 5000081764×1
  • 25100066377Not stocked
    Fuel Filter×1
  • 45100051851
    $226.73
    tank-fuel - 5100051851×1
  • 55100080974Not stocked
    Tank cover×1
  • 65000209770
    $1.03
    Gasket - 5000209770×1
  • 85100066382Not stocked
    Flange screw×1
  • 115000071082
    $4.75
    O-RING 14 X 1.3 - 5000071082×1
  • 125100005325Not stocked
    Fuel hose×1
  • 135000071056
    $1.01
    NUT M6,HEX,FLANGE - 5000071056×2
  • 145000208617
    $3.39
    CLAMP-TUBE - 5000208617×2
