WP1550 VIBROPLATE

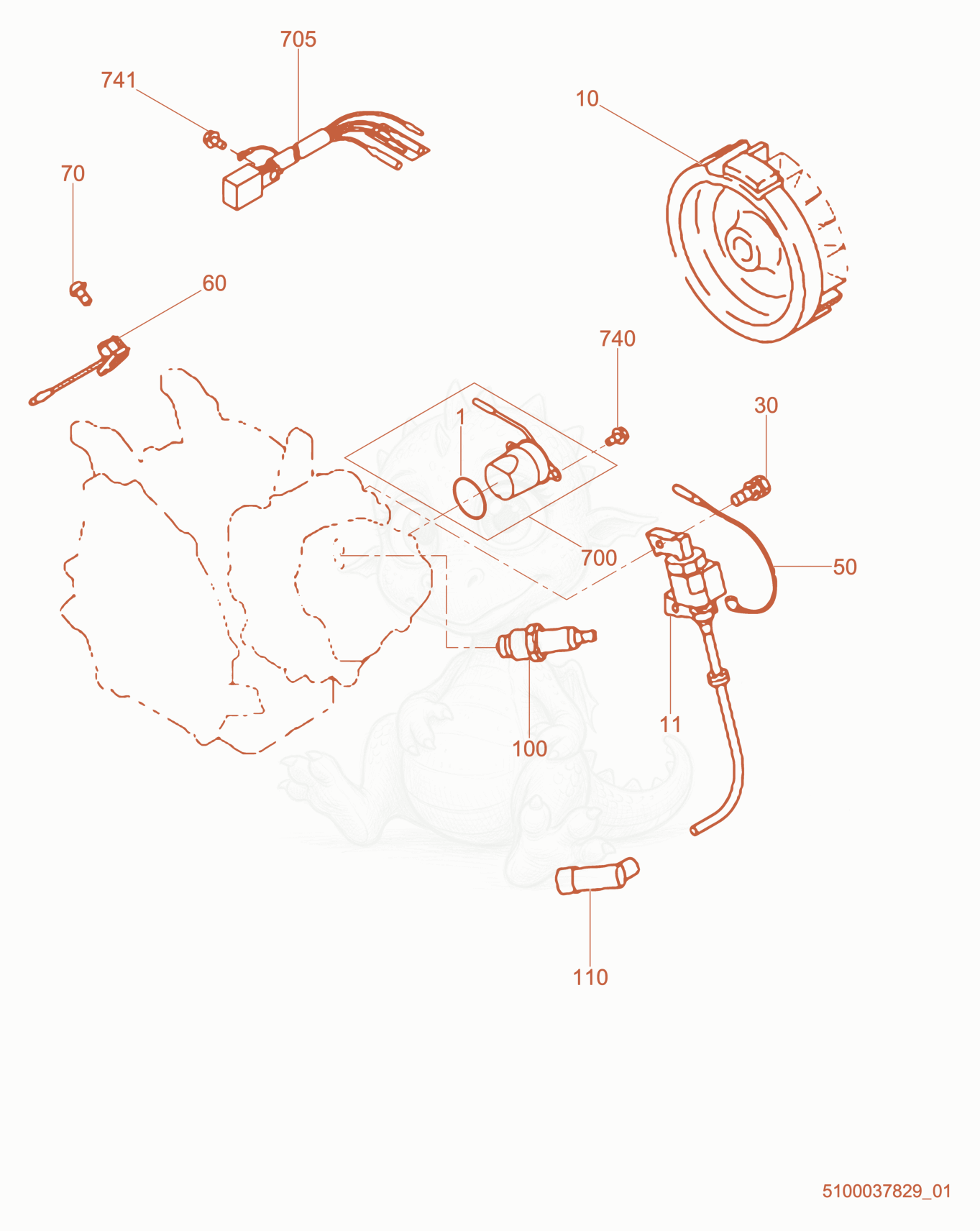

WP1550 Flywheel/Ignition Coil Diagram

Exploded parts diagram of the Flywheel/Ignition Coil of a Wacker Neuson WP1550, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100037822
    $12.57
    O-Ring - 5100037822×1
  • 105000156550
    $285.98
    X-5000210064 FLYWHEEL COMPLETE - 5000156550×1
  • 115200001098
    $196.25
    IGNITION COIL - 5200001098×1
  • 305000205309
    $2.60
    screw - 5000205309×2
  • 505000205502
    $9.75
    WIRE - 5000205502×1
  • 605000129974
    $65.96
    SWITCH-SHUT OFF - 5000129974×1
  • 705000117276
    $0.69
    SCREW-TAPPING - 5000117276×2
  • 1005100037821
    $63.95
    SPARK PLUG - 5100037821×1
  • 1105000156555
    $10.77
    CAP-SPARK PLUG - 5000156555×1
  • 7005000156556
    $103.92
    SENSOR-OIL,COMPLETE - 5000156556×1
  • 7055000205505
    $113.72
    WIRE - OIL SENSOR - 5000205505×1
  • 7405200013328Not stocked
    Flange bolt×2
  • 7415000084348
    $0.69
    SCREW-TAPPING - 5000084348×1
