WP1550A

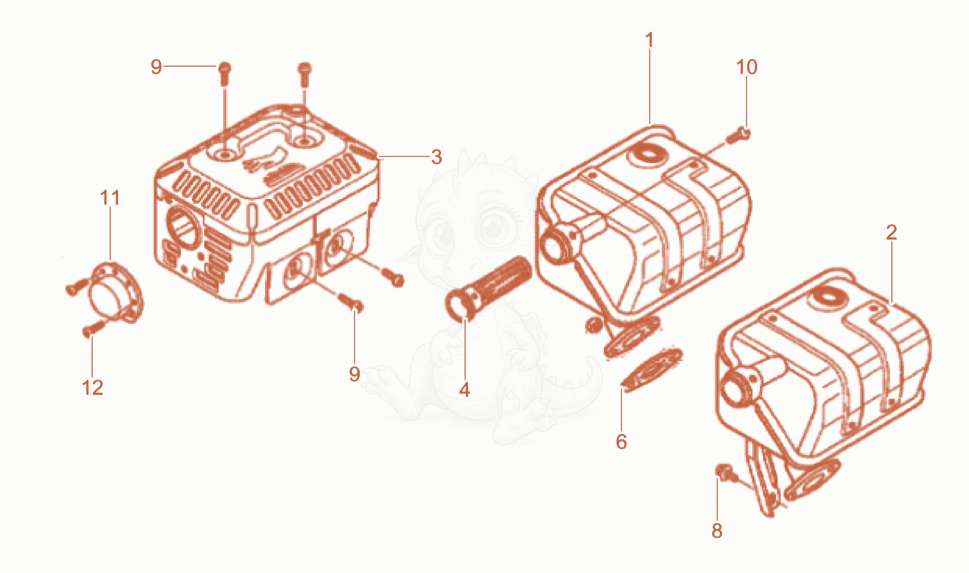

WP1550AUS Exhaust Silencer Diagram
- Muffler cpl. - 5100048122×1
- Muffler cpl. - 5100005322×1
- Protection cpl. - 5100005320×1
- Spark arrester - 5100005321×1
- SCREW M6 X 13,HEX.FLANGE - 5000072773×1
- SCREW M5 X 8,TAPPING - 5000071070×4
- SCREW M4 X 6 - 5000217463×1
- NUT M8,HEX - 5000071076×2
- BAFFLE-EXHAUST - 5000107072×1
- SCREW-TAPPING 4 X 6 - 5000150916×2
