Vibration Plate WP1550Aw CN

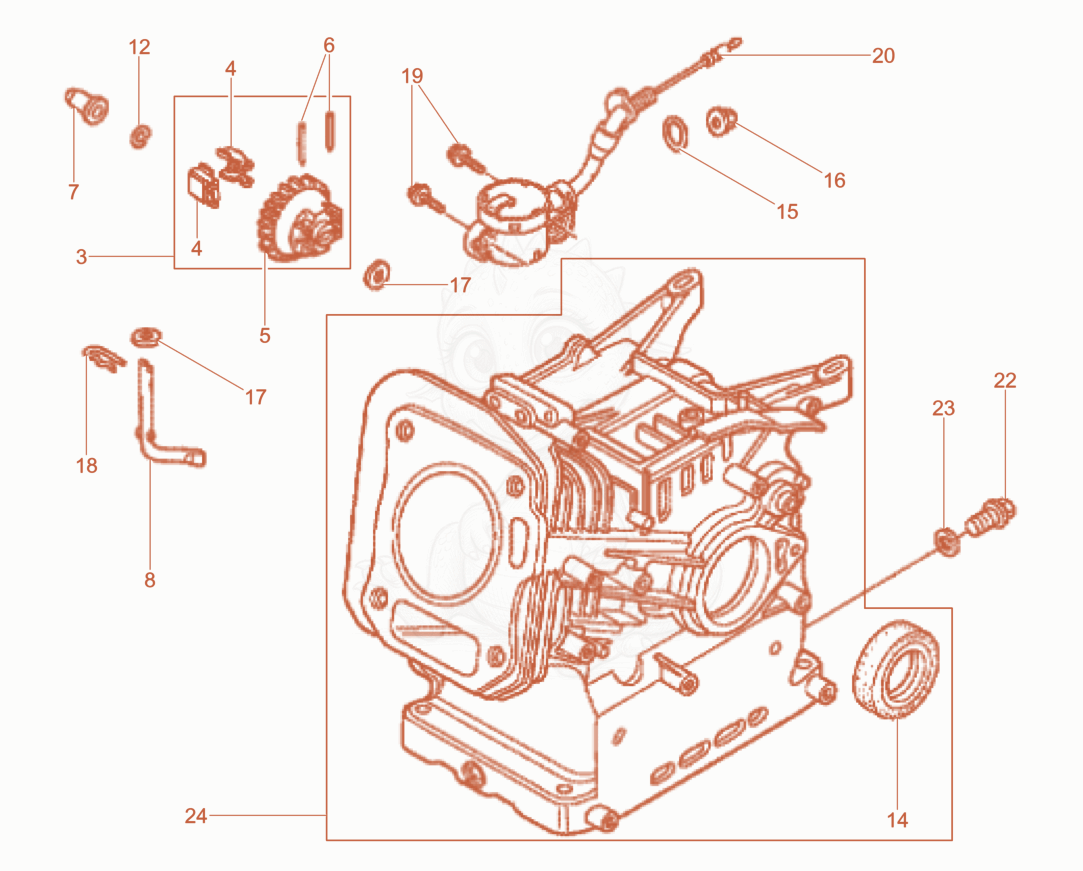

WP1550AWCN Cylinder housing Diagram

Exploded parts diagram of the Cylinder housing of a Wacker Neuson WP1550AWCN, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35100005429Not stocked
    Governor cpl.×1
  • 45100005430Not stocked
    Weight×2
  • 55100005431Not stocked
    Bracket×1
  • 65000156689
    $2.74
    PIN-GOVERNOR WEIGHT - 5000156689×2
  • 75100005432Not stocked
    Governor Pin×1
  • 85100005433Not stocked
    Governor×1
  • 125000081615
    $2.07
    RET.RING 7.7MM,FORM C - 5000081615×1
  • 145100036262Not stocked
    Ring×1
  • 155100051238
    $10.43
    O-ring - 5100051238×1
  • 165000072332
    $4.18
    NUT M10,HEX.FLANGE - 5000072332×1
  • 175000071639
    $0.98
    WASHER 6MM,PLAIN - 5000071639×2
  • 185000054033
    $1.84
    PIN - 5000054033×1
  • 195100003498Not stocked
    Flange screw×2
  • 205000216513
    $91.52
    SWITCH - 5000216513×1
  • 225000070964
    $3.65
    PLUG - 5000070964×1
  • 235000070963
    $1.63
    Washer - 5000070963×1
  • 245100050559
    $1,650.42
    Motor housing cpl. - 5100050559×1
