WP1550Ww

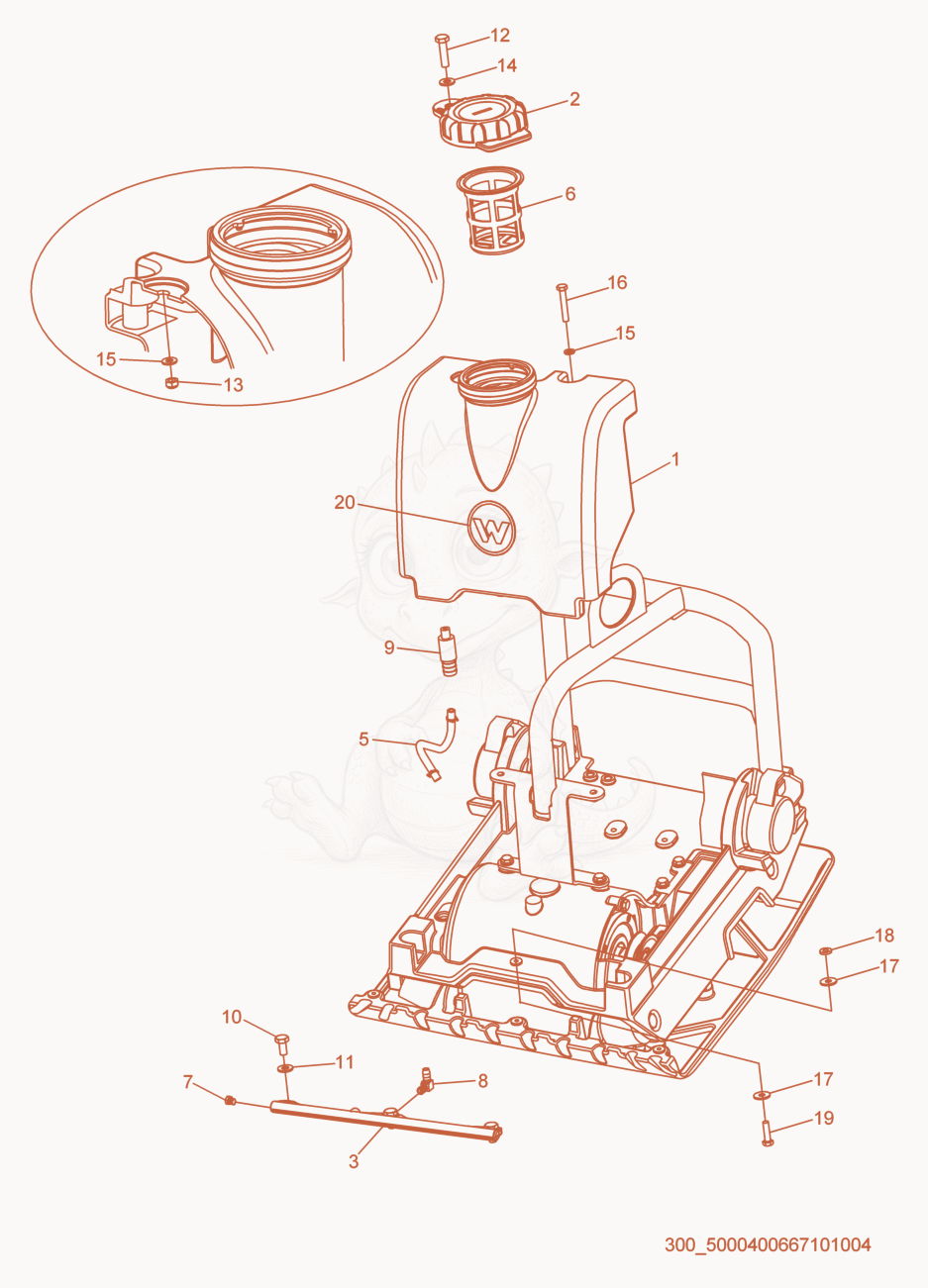

WP1550WW Water System Kit Diagram

Exploded parts diagram of the Water System Kit of a Wacker Neuson WP1550WW, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000401750Not stocked
    Water tank×1
  • 25000400786
    $27.51
    CAP-RUBBER - 5000400786×1
  • 35000402003
    $99.80
    MANIFOLD-WATER,50CM - 5000402003×1
  • 55000402747Not stocked
    Hose Kit×1
  • 65000401079
    $17.98
    FILTER TOP - 5000401079×1
  • 75000402081
    $3.87
    PLUG-SLOTTED - 5000402081×2
  • 85000401922
    $12.80
    FITTING-MANIFOLD - 5000401922×1
  • 95000403512Not stocked
    Shutoff valve×1
  • 105000012364
    $0.44
    SCREW M10 X 20 HX.HD. - 5000012364×3
  • 115000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×3
  • 125000401557
    $2.45
    SCREW M10 X 40 HX.HD - 5000401557×1
  • 135000401129
    $7.77
    NUT-LOCK,M10 - 5000401129×1
  • 145000401128
    $0.61
    WASHER-M10 - 5000401128×2
  • 155000012397
    $0.10
    WASHER-LOCK B8 - 5000012397×3
  • 165000011452
    $0.44
    SCREW M8 X 50 HX.HD. - 5000011452×2
  • 175000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×3
  • 185000130787
    $1.02
    SPACER-RUBBER - 5000130787×1
  • 195000011456
    $0.29
    SCREW M8 X 30 HX.HD. - 5000011456×1
  • 205000401561
    $10.75
    WNS 80MM Label - 5000401561×1
