WPU1550Aw

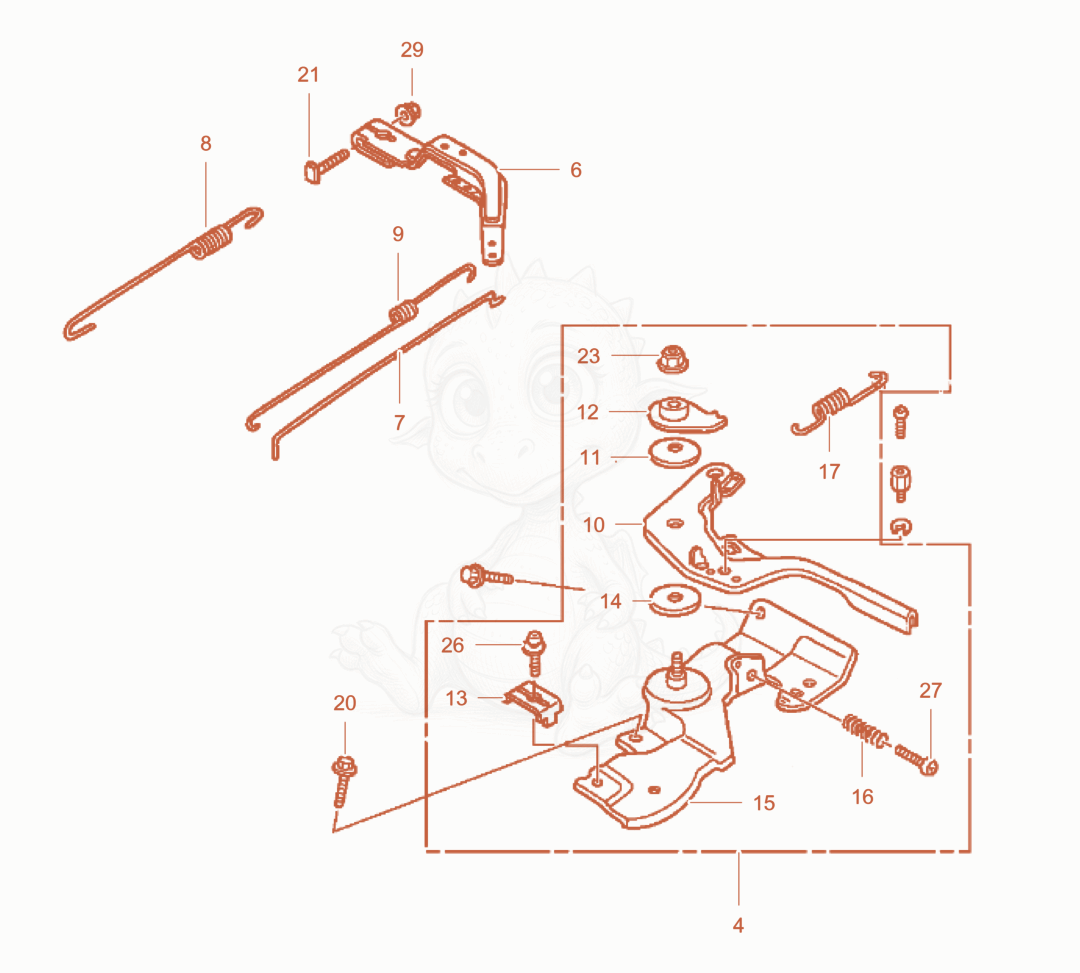

WPU1550AW Governor cpl Diagram
- ONTROL ASSY. (REMOTE) - 5000406655×1
- ARM,GOVERNOR - 5000406656×1
- ROD,GOVERNOR - 5000406657×1
- SPRING,GOVERNOR - 5000406658×1
- SPRING-THROTTLE CONTROL - 5000071664×1
- LEVER,CONTROL - 5000406660×1
- WASHER-CONCAVE - 5000071058×1
- WASHER - 5000071057×1
- HOLDER-REMOTE CONTROL CABLE - 5000071062×1
- SPACER - 5000071064×1
- BASE COMP.,CONTROL - 5000406661×1
- SPRING-ADJUSTING - 5000054088×1
- Spring - 5000071667×1
- SCREW M6 X 12,HX.FLANGE HD. - 5000053990×2
- Bolt - 5200000457×1
- NUT-LOCK M6,HEX. - 5000072782×1
- SCREW-PAN 5 X 16 - 5000110112×1
- SCREW M5 X 25 - 5000081990×1
- NUT M6,HEX,FLANGE - 5000071056×1
