SPARE PARTS LIST 1402RD Force SP

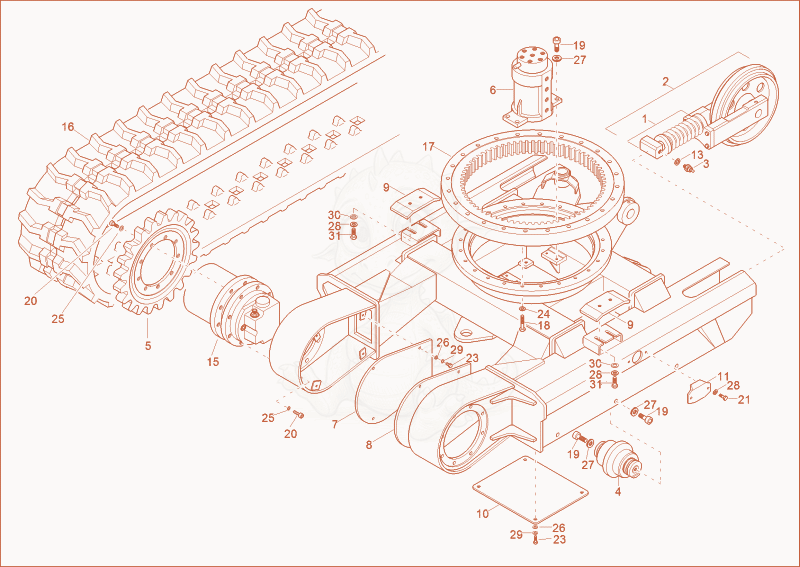

Despiece de TRACKLAYING GEAR · 1402RDFORCE

Despiece del TRACKLAYING GEAR de una máquina Wacker Neuson 1402RDFORCE, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 11000065718
    $645.30
    SPRING ASSEMBLY - 1000065718×2
  • 21000003859
    $784.38
    X-1000289997 Track Tensioner Complete - 1000003859×2
  • 31000183476No la vendemos
    non return valve×2
  • 41000003860
    $164.16
    roller - 1000003860×6
  • 51000065701
    $325.80
    drive wheel - 1000065701×2
  • 61000065862No la vendemos
    rotary junction×1
  • 71000067135No la vendemos
    drive unit cover×1
  • 81000067134No la vendemos
    cover undercarriage×1
  • 91000067136No la vendemos
    slide plate×2
  • 101000065695No la vendemos
    cover undercarriage×1
  • 111000068511No la vendemos
    cover chain tensioner×2
  • 131000124948
    $12.46
    screw seal - 1000124948×2
  • 151000065944No la vendemos
    drive unit×2
  • 161000003864
    $859.88
    rubber track - 1000003864×2
  • 171000002889No la vendemos
    slewing ring×1
  • 181000015372No la vendemos
    hex screw×24
  • 191000082295
    $1.10
    cheese head screw - 1000082295×16
  • 201000085502
    $0.88
    allen screw M10x30 Geomet 500A DIN912 - 1000085502×34
  • 211000013009No la vendemos
    hex screw×34
  • 231000013008No la vendemos
    hex screw×12
  • 241000082611
    $0.90
    washer 13 A2C DIN6916 - 1000082611×24
  • 251000022016No la vendemos
    spring washer×34
  • 261000013027No la vendemos
    washer×12
  • 271000015449No la vendemos
    northlock disc×16
  • 281000015438No la vendemos
    lock washer×12
  • 291000015437No la vendemos
    lock washer×12
  • 301000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 311000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
