WN Excavator 2503

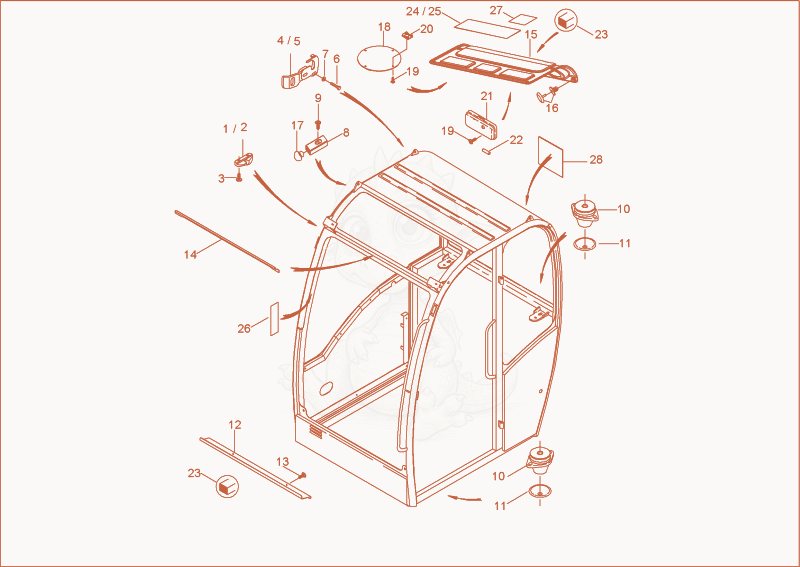

Despiece de CABIN FRAME 2 · 2503
- 11000003866No la vendemoscatch-rests×2
- 21000003867No la vendemoscatch-rests×2
- 31000015385No la vendemosovalhead screw×4
- 41000068934No la vendemosfastening plate×1
- 51000068935No la vendemosfastening plate×1
- 61000015339No la vendemoshex screw×4
- washer M6,4-DIN134 - 1000094966×4
- 81000068936No la vendemosbuffer part×2
- ovalhead screw - 1000082438×2
- 101000068937No la vendemossilent bearing×4
- 111000362246No la vendemospot disc×4
- 121000068939No la vendemoscover plate×1
- OVALHEAD SCREW - 1000015362×2
- HEX SCREW - 1000085559×2
- GUTTER - 1000099541×1
- cab trim - 1000068888×1
- spread rivet - 1000068977×9
- 171000068968No la vendemosrubber plug×2
- 181000068940No la vendemosloud speaker cover×2
- screw - 1000085560×10
- NUT - 1000068941×8
- 211000003334No la vendemosDome Light×1
- bulb - 1000085712×1
- SEALING STRIP - 1000097210×3.7
- 241000080819No la vendemossticker function display×1
- sticker functions - 1000080887×1
- STICKER FOPS+ROPS+TOPS - 1000081053×1
- sticker 'security' - 1000081057×1
- 281000068967No la vendemosinsulating lining×2
- 291000065976No la vendemosspacer×4
- cheese head screw - 1000082292×4
- 311000049219No la vendemoswasher×8
- 321000020127No la vendemoshexagon nut×4
- 331000048178No la vendemoscheese head screw×4
- 341000015434No la vendemoswasher×8
- nut M10-8 A2C-DIN985 - 1000015408×4
- 361000015376No la vendemoscheese head screw×4
- 371000015438No la vendemoslock washer×4
- washer 10,5 A2C DIN125 - 1000015432×4
