SPARE PARTS LIST 2702RD Force SP

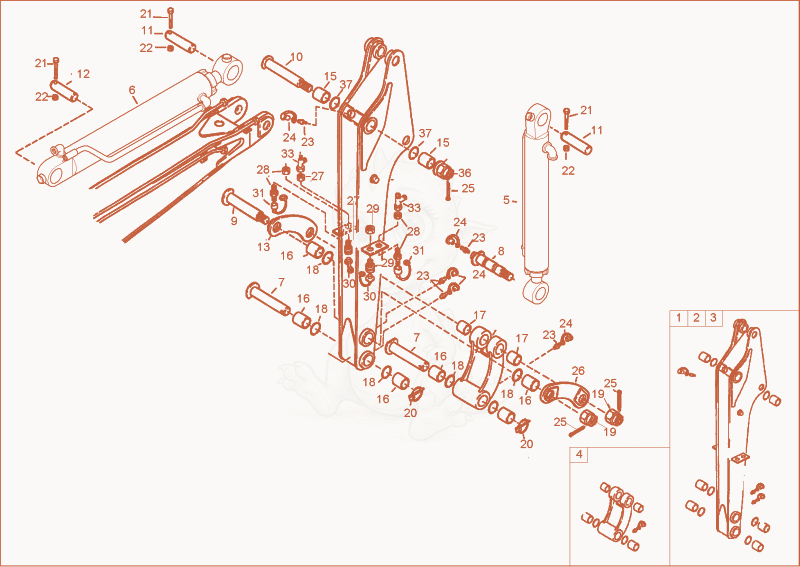

Despiece de dipperstick · 2702RDFORCE
- 11000069771No la vendemosPRE-ASSEMBLED DIPPER ARM×1
- 21000069772No la vendemosPRE-ASSEMBLED DIPPER ARM×1
- 31000167168No la vendemosdipperstick premounted×1
- 41000021128No la vendemospre-assembled articulation rod×1
- 51000070054No la vendemosbucket cylinder×1
- 61000004686No la vendemosdipper arm cylinder×1
- Pin 1000296761×2
- 81000004796No la vendemospin×1
- 91000021604No la vendemospin×1
- PIN - 1000069874×1
- 111000069872No la vendemospin×2
- PIN - 1000069873×1
- 131000069763No la vendemospivot plate×1
- 151000015610No la vendemossteel bushing×2
- 161000015608No la vendemossteel bushing×6
- 171000015607No la vendemossteel bushing×2
- 181000021601No la vendemoslock ring×6
- DIN935-M36-8-A2C - 1000015417×2
- COTTER PIN - 1000015459×2
- 6-Point screw M8x80-8.8 A2C - 1000085319×3
- DIN985-M8-8-A2C - 1000015416×3
- 231000015475No la vendemosgrease nipple×5
- 241000015480No la vendemoscap grease nipple×5
- COTTERPIN - 1000021603×2
- 261000069764No la vendemospivot plate×1
- quick lock coupling - 1000005143×1
- 281000004648No la vendemosquick lock coupling×2
- 291000004647No la vendemosquick lock coupling×1
- 301000002992No la vendemosprotecting cap×2
- 311000002993No la vendemosprotecting cap×2
- 321000015494No la vendemosscrew joint×2
- 331000015539No la vendemosscrew joint×2
- 341000015521No la vendemosscrew joint×1
- 351000015494No la vendemosscrew joint×1
- 361000082558No la vendemoscrown nut×1
- LOCK RING - 1000082752×2
