Despiece de circulation · 280

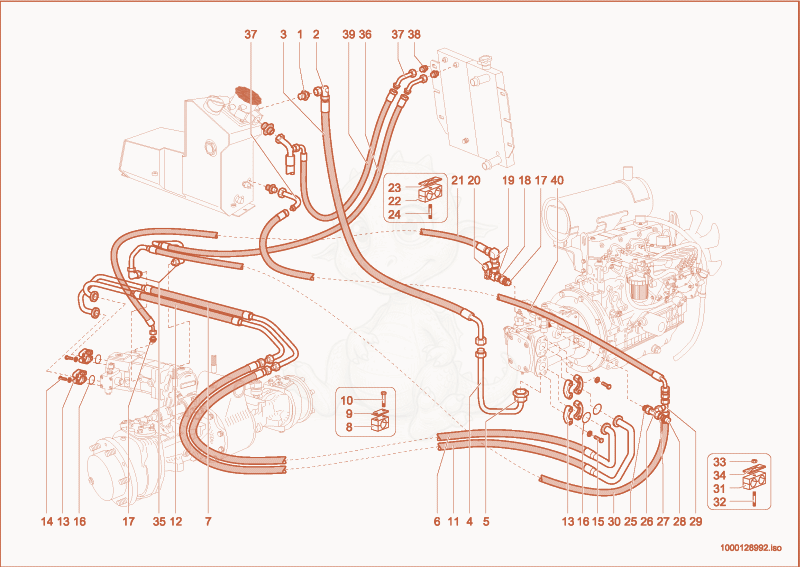

Despiece del circulation de una máquina Wacker Neuson 280, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

11000028321
$17.58
GE18LR1EDOMDA3C - 1000028321×1
21000015513No la vendemos
screw joint×1
31000052251No la vendemos
Hose×1
41000051046
$76.52
PIPE LINE - 1000051046×1
51000028323No la vendemos
screw joint×1
61000052237No la vendemos
Hose×1
71000052239
$919.40
SLHYDR 4SC 16 PE18 90 PS18 180L1155 90 - 1000052239×1
81000032192
$4.55
CLAMP - 1000032192×2
91000031643No la vendemos
cover plate×2
101000085385
$0.83
hex screw - 1000085385×4
111000052238No la vendemos
Hose×1
121000052240
$721.35
SLHYDR 2SC 16 PE18 90 PS18 180L1105 90 - 1000052240×1
131000028689No la vendemos
half flange×8
141000085503
$0.93
cheese head screw - 1000085503×8
151000015346No la vendemos
hex screw×8
161000090485
$1.71
O-RING - 1000090485×4
171000085114
$3.58
GE10LMEDOMDA3C - 1000085114×2
181000085038
$9.08
GZ10LA3C - 1000085038×1
191000015510No la vendemos
screw joint×2
201000028595
$106.18
MINIMESS POINT - 1000028595×1
211000029390
$51.21
SLHYDR 2SC 8,0PN10 0 PN10 45 L2020 0 - 1000029390×1
221000052646No la vendemos
clamp×3
231000031230No la vendemos
cover plate×3
241000048896No la vendemos
stud×3
251000085048
$26.02
EGE15LM EDM22X1,5 A3C - 1000085048×1
261000028600No la vendemos
screw joint×1
271000028337
$17.46
REDUCTION - 1000028337×1
281000028095No la vendemos
drain coupling×1
291000085108
$18.68
ET15LOMDA3C - 1000085108×1
301000052241No la vendemos
Hose×1
311000031638
$2.44
CLAMP - 1000031638×3
321000048894No la vendemos
stud×2
331000013022No la vendemos
hexagon nut×2
341000031245No la vendemos
cover plate×2
351000028701No la vendemos
screw joint×2
361000052227
$119.56
SLHYDR 2SC 12 PN15 0 PN15 90 L1500 0 - 1000052227×1
371000036911No la vendemos
connection piece×2
381000020803No la vendemos
screw joint×2
391000052243No la vendemos
Hose×1
401000052226No la vendemos
Hose×1
