Excavator 28Z3

Despiece de wire harness chassis, engine · 28Z3

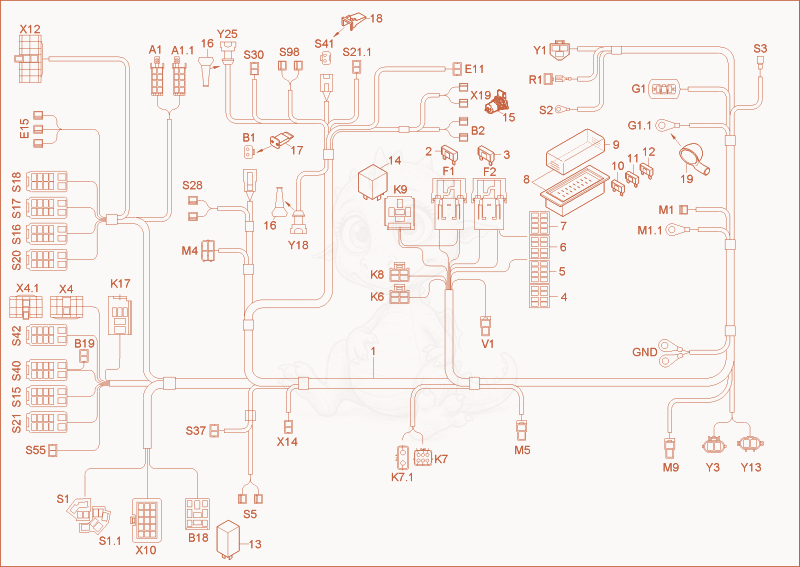

Despiece del wire harness chassis, engine de una máquina Wacker Neuson 28Z3, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 11000237533
    $3,477.96
    Harnesswiringchassis 1000237533×1
  • 21000015302
    $3.50
    fuse - 1000015302×1
  • 31000015298
    $3.25
    FUSE - 1000015298×1
  • 41000101620
    $8.84
    Socket housing - 1000101620×1
  • 51000101621
    $8.84
    Socket housing - 1000101621×1
  • 61000101622
    $8.84
    Socket housing - 1000101622×1
  • 71000101623
    $8.84
    Socket housing - 1000101623×1
  • 81000124067
    $105.94
    FUSE BOX - 1000124067×1
  • 91000124068
    $14.31
    cover fuse box - 1000124068×1
  • 101000084949
    $0.42
    FUSE - 1000084949×1
  • 111000085682
    $0.43
    fuse - 1000085682×3
  • 121000085683
    $0.55
    FUSE - 1000085683×4
  • 131000139287
    $64.10
    signal - 1000139287×1
  • 141000353650No la vendemos
    relay×1
  • 151000002902No la vendemos
    socket×1
  • 161000027466No la vendemos
    protecting cap×2
  • 171000027442No la vendemos
    wedge×1
  • 181000027449No la vendemos
    housing×1
  • 191000027463
    $7.08
    PROTECTING CAP - 1000027463×1
  • A11000104903
    $4.90
    CONTACT-HOUSING - 1000104903×1
  • A1.11000104902
    $18.69
    CONTACT-HOUSING - 1000104902×1
  • B11000027438No la vendemos
    bushing housing×1
  • B181000082001
    $3.89
    sockets - 1000082001×1
  • B191000095336No la vendemos
    plug sleeve housing×1
  • B21000027435No la vendemos
    insulating sleeve×2
  • E111000095336No la vendemos
    plug sleeve housing×1
  • E151000027435No la vendemos
    insulating sleeve×3
  • F11000027186
    $10.05
    Bracket - 1000027186×1
  • F21000027186
    $10.05
    Bracket - 1000027186×1
  • G11000110537
    $32.62
    bushing housing - 1000110537×1
  • G1.11000096859
    $1.08
    CABLE LUG - 1000096859×1
  • GND1000107754
    $2.77
    cable lug - 1000107754×2
  • K171000100593
    $6.63
    sockets - 1000100593×1
  • K61000051986No la vendemos
    plug sleeve housing×1
  • K71000110360
    $13.74
    bushing housing - 1000110360×1
  • K7.11000110349
    $15.95
    bushing housing - 1000110349×1
  • K81000051986No la vendemos
    plug sleeve housing×1
  • K91000082001
    $3.89
    sockets - 1000082001×1
  • M11000027435No la vendemos
    insulating sleeve×1
  • M1.11000050028No la vendemos
    cable lug×1
  • M41000095325
    $2.11
    plug sleeve housing - 1000095325×1
  • M51000101072
    $0.75
    plug sleeve housing - 1000101072×1
  • M91000101072
    $0.75
    plug sleeve housing - 1000101072×1
  • R11000081742
    $2.88
    plug housing - 1000081742×1
  • S11000027368No la vendemos
    central plug×1
  • S1.11000027386
    $6.47
    PLUG - 1000027386×1
  • S151000124011
    $25.98
    bushing housing - 1000124011×1
  • S161000124011
    $25.98
    bushing housing - 1000124011×1
  • S171000124011
    $25.98
    bushing housing - 1000124011×1
  • S181000124011
    $25.98
    bushing housing - 1000124011×1
  • S21000050027No la vendemos
    cable lug×1
  • S201000124011
    $25.98
    bushing housing - 1000124011×1
  • S211000124011
    $25.98
    bushing housing - 1000124011×1
  • S2111000095336No la vendemos
    plug sleeve housing×1
  • S281000027435No la vendemos
    insulating sleeve×2
  • S31000027384No la vendemos
    round socket sleeve×1
  • S301000095336No la vendemos
    plug sleeve housing×1
  • S371000095336No la vendemos
    plug sleeve housing×1
  • S401000124011
    $25.98
    bushing housing - 1000124011×1
  • S411000027445No la vendemos
    pin housing×1
  • S421000124011
    $25.98
    bushing housing - 1000124011×1
  • S51000027435No la vendemos
    insulating sleeve×2
  • S551000095336No la vendemos
    plug sleeve housing×1
  • S981000027435No la vendemos
    insulating sleeve×2
  • V11000101072
    $0.75
    plug sleeve housing - 1000101072×1
  • X101000104663
    $11.53
    Pin housing - 1000104663×1
  • X121000095331
    $6.16
    plug sleeve housing - 1000095331×1
  • X141000095336No la vendemos
    plug sleeve housing×1
  • X191000027435No la vendemos
    insulating sleeve×2
  • X41000101653
    $6.73
    plug sleeve housing - 1000101653×1
  • X4.11000095321
    $5.84
    bushing housing - 1000095321×1
  • Y11000167178
    $6.73
    PLUG SLEEVE HOUSING - 1000167178×1
  • Y131000124064
    $9.32
    Pin housing - 1000124064×1
  • Y181000027332
    $3.80
    housing - 1000027332×1
  • Y251000027332
    $3.80
    housing - 1000027332×1
  • Y31000124062
    $6.59
    bushing housing - 1000124062×1
