SPARE PARTS LIST 4500/7002 SP

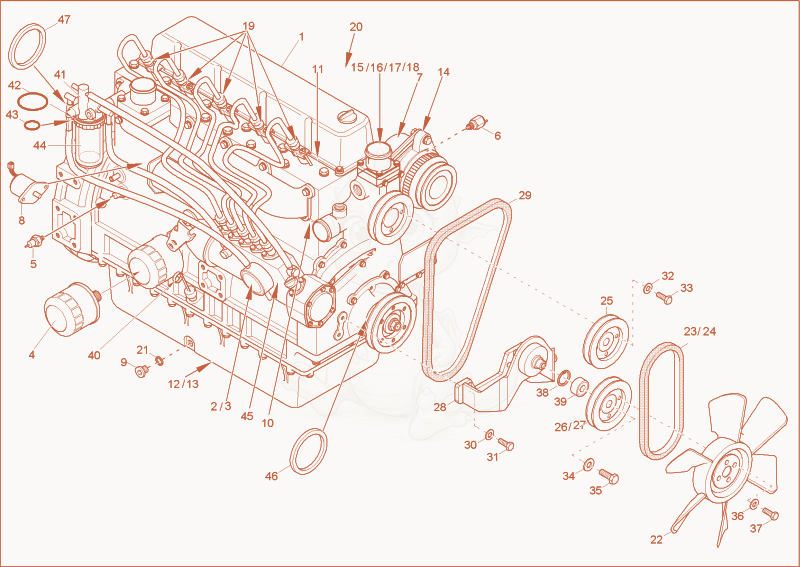

Despiece de diesel engine · 4500/7002
- 11000065599No la vendemosdiesel engine×1
- 21000026885No la vendemosengine gasket×1
- 31000109052No la vendemosfuel pump×1
- ENGINE OIL FILTER - 1000004570×1
- 51000004613No la vendemosoil pressure switch×1
- 61000019535No la vendemostemperature switch×1
- 71000075105No la vendemosgenerator×1
- shut off solenoid - 1000018585×1
- DRAIN SCREW - 1000084919×1
- 101000109051No la vendemoscylinder head gasket×1
- 111000003739No la vendemosvalve cover seal×1
- 121000109050No la vendemosoil sump×1
- 131000181968No la vendemosoil sump gasket×1
- 141000085259No la vendemosclamp bar×1
- 151000019510No la vendemoswater pump×1
- 161000026887No la vendemosseal water pump×1
- THERMOSTAT - 1000022166×1
- 181000026886No la vendemosgasket thermostat×1
- 191000076239No la vendemosinjection nozzle×5
- 201000003738No la vendemosstarter motor×1
- 211000085151No la vendemosseal ring×1
- 221000003743No la vendemosventilator fan×1
- 231000001884No la vendemosv-belt×1
- 241000001953No la vendemosv-belt×1
- 251000013407No la vendemosbelt pulley×1
- 261000013406No la vendemosbelt pulley×1
- 271000013430No la vendemosbelt pulley×1
- 281000076238No la vendemosbearing flange×1
- 291000003737No la vendemosv-belt×1
- 301000015438No la vendemoslock washer×2
- 311000094759No la vendemoshex screw×2
- 321000015444No la vendemosspring washer×4
- 331000018400No la vendemoshex screw×4
- 341000015450No la vendemosnorthlock disc×1
- hex screw - 1000085417×1
- Nord-Lock disc NL8 - 1000094995×4
- 371000019136No la vendemoshex screw×4
- LOCK RING - 1000095017×1
- 391000015147No la vendemosball bearing×1
- 401000116042No la vendemosoil dip stick×1
- 411000019509No la vendemosfuel filter×1
- 421000000358No la vendemoso-ring×1
- 431000001307No la vendemoso-ring×1
- 441000001012No la vendemosfilter insert×1
- 451000026882No la vendemosinjection pump×1
- 461000156760No la vendemosshaft seal×1
- 471000184611No la vendemosshaft seal×1
