WN Excavator 6003

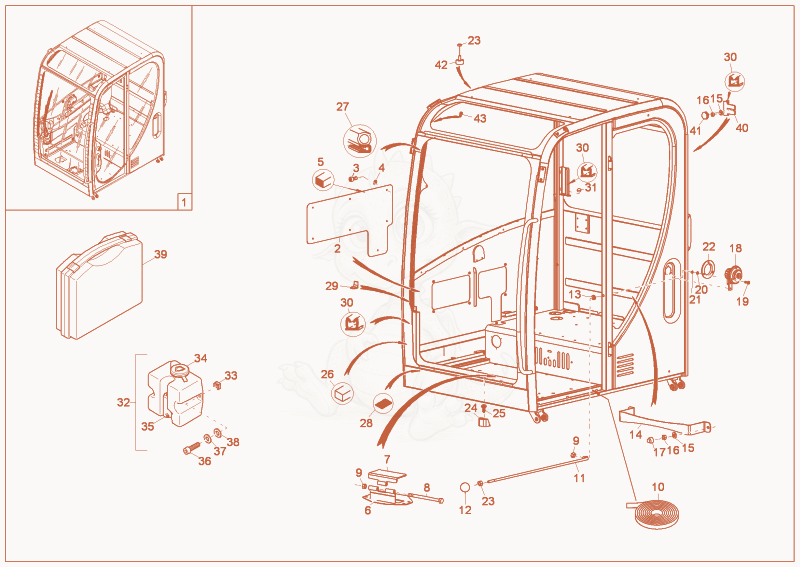

Despiece de CABIN FRAME 1 · 6003
- 11000130164No la vendemosCABIN×1
- Sidecover 1000124788×1
- screw M6x12 ISO7380-2 - 1000165459×7
- washer M6,4-DIN134 - 1000094966×7
- Tesamol - 1000124789×2.1
- ADAPTER PLATE - 1000124790×1
- FLAP FOOTREST - 1000124791×1
- hex screw M8x120-8.8 A2C - 1000085353×1
- DIN985-M8-8-A2C - 1000015416×2
- STRIP - 1000126584×0.7
- antilock rod - 1000124793×1
- ball head - 1000124794×1
- RUBBER SLEEVE - 1000124806×1
- BRACKET - 1000124795×1
- washer M6,4-DIN134 - 1000094966×2
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
- cover cap - 1000073525×2
- door fastener - 1000124796×1
- ovalhead screw - 1000124798×3
- Washer M5,3-DIN134 - 1000094967×3
- HEXAGON NUT - 1000085587×3
- rubber disc - 1000124797×1
- 231000015379No la vendemoshexagon nut×1
- 241000066203No la vendemosclamp shoe×2
- 251000015386No la vendemosovalhead screw×4
- RUBBER FOAM - 1000181141×1.9
- PROFILE - 1000153158×1
- seal strap - 1000097235×1
- CLAMP SHOE - 1000143222×1
- slide window seal - 1000097236×1
- 311000068968No la vendemosrubber plug×2
- wash tank Incl. pump - 1000110420×1
- 331000015426No la vendemoscage nut×2
- locking cap - 1000125145×1
- pump washtank - 1000125144×1
- allen screw M5x16-8.8 A2C DIN912 - 1000085451×2
- lock washer - 1000082608×2
- washer X-1000092302 - 1000095342×2
- documents box - 1000110218×1
- BRACKET - 1000143226×2
- GROOVED SCREW - 1000143229×2
- 421000068973No la vendemosrubber buffer×2
- 431000082323No la vendemoscheese head screw×2
