Despiece de locking · 803

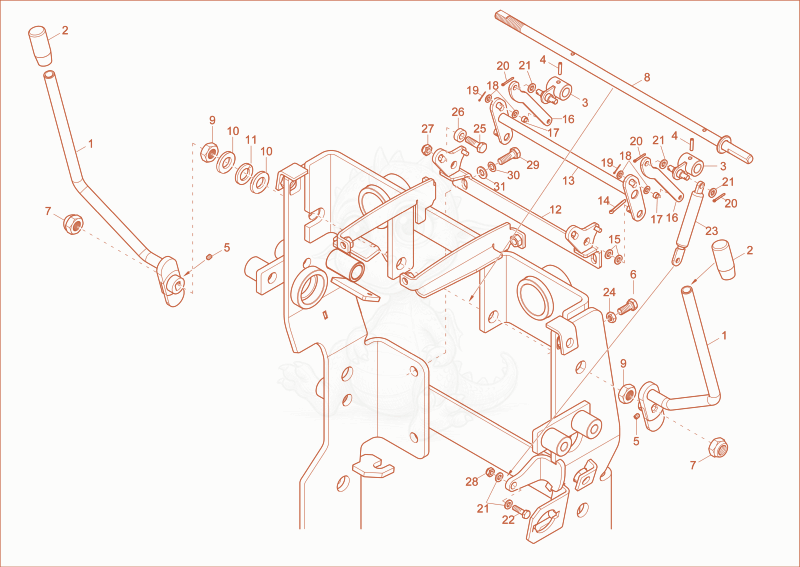

Despiece del locking de una máquina Wacker Neuson 803, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

11000241495
$65.40
LEVER - 1000241495×2
21000248836
$3.52
handle protection - 1000248836×2
31000249336
$51.62
locking device - 1000249336×2
41000249170
$1.11
cotter pin - 1000249170×2
51000082388
$1.38
thread pin - 1000082388×2
61000085391
$0.91
hex screw - 1000085391×2
71000020127No la vendemos
hexagon nut×2
81000249289
$34.99
shaft - 1000249289×1
91000015415No la vendemos
hexagon nut×2
101000049219No la vendemos
washer×2
111000049422
$1.68
SPRING RING - 1000049422×1
121000249337
$80.30
mounting - 1000249337×1
131000249334
$76.42
locking - 1000249334×1
141000095365
$0.10
cotter pin 3,2x20 - 1000095365×2
151000015432
$0.05
washer 10,5 A2C DIN125 - 1000015432×2
161000249290
$15.97
likage - 1000249290×2
171000250185
$8.93
SLIDE BEARING - 1000250185×2
181000094962
$0.04
washer A 5,3 A2C DIN125 - 1000094962×4
191000151228
$1.03
cotter pin - 1000151228×2
201000085657
$1.74
COTTERPIN - 1000085657×3
211000015430No la vendemos
washer×5
221000015340No la vendemos
hex screw×1
231000373040
$349.03
spring - 1000373040×1
241000013021No la vendemos
hexagon nut×2
251000013008No la vendemos
hex screw×2
261000255464
$1.41
SLEEVE - 1000255464×2
271000015416
$0.71
DIN985-M8-8-A2C - 1000015416×2
281000085588
$0.32
self-locking nuts M6-8 A2C-DIN985 - 1000085588×1
291000015343No la vendemos
hex screw×2
301000015437No la vendemos
lock washer×2
311000015431No la vendemos
washer×2
