AP1135R

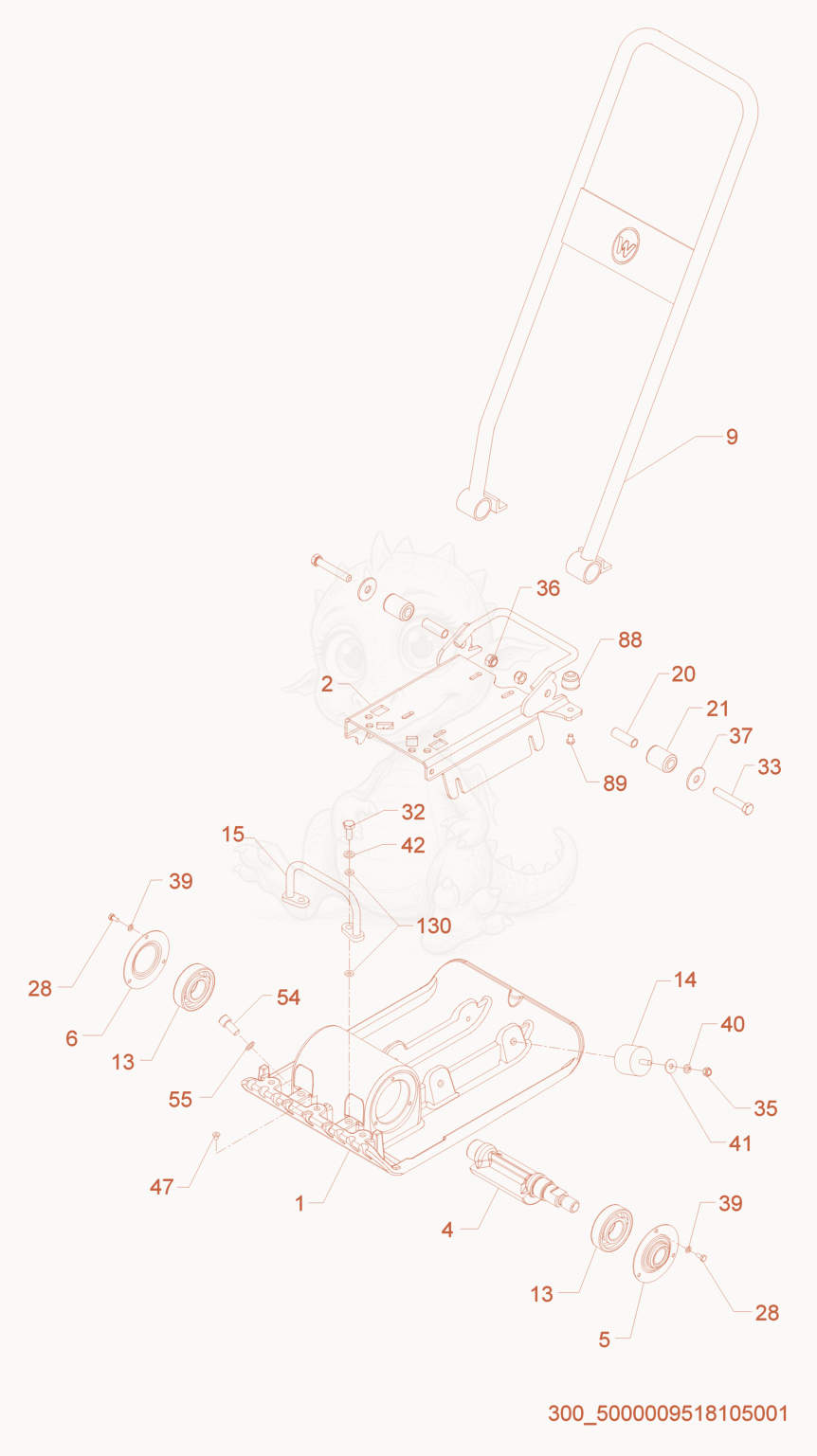

Despiece de Baseplate/Console cpl. · AP1135R
- ASM_Baseplate 35 cm - 5000401264×1
- 25000401610No la vendemosConsole×1
- SHAFT-EXCITER - 5000114169×1
- 55000115053No la vendemosCap×1
- Cap-End w/o Hole - 5000115054×1
- Handle Weldment - 5000403821×1
- BEARING-RADIAL BALL,6307-C3 - 5000114484×2
- SHOCKMOUNT X-REF 5000400388 - 5000130014×4
- KIT-HANDLE LIFTING - 5000130854×1
- BUSHING-HANDLE - 5000114254×2
- BUSHING-RUBBER - 5000117862×2
- SCREW M6 X 12 HX.HD. - 5000012357×6
- SCREW M10 X 25 HX.HD. - 5000011440×2
- SCREW M12 X 75 HX.HD - 5000011306×2
- NUT-LOCK M8 HEX - 5000010367×4
- NUT-LOCK M12X1.75 HEX - 5000010366×2
- WASHER .531X 1.625X.120,FLAT - 5000114766×2
- WASHER-LOCK B6 - 5000010649×6
- WASHER-LOCK B8 - 5000012397×4
- WASHER B8.4 FLAT - 5000010374×4
- Washer Lock DIN6796,Zinc Mechanical - 5000407043×2
- PLUG-CAP #1,TAPERED,PLASTC,RED - 5000074985×3
- Screw-M12 x 25, 12.9,Soc Mechanical Zinc - 5000017086×1
- SEAL-RING 12 X 18 - 5000013444×1
- SHOCKMOUNT-M30X20,SPECIAL - 5000105056×2
- SCREW M8 X 12 HX.HD. - 5000012360×2
- SPACER-RUBBER - 5000130787×4
