AP2560e

Despiece de Exciter cpl. · AP2560E

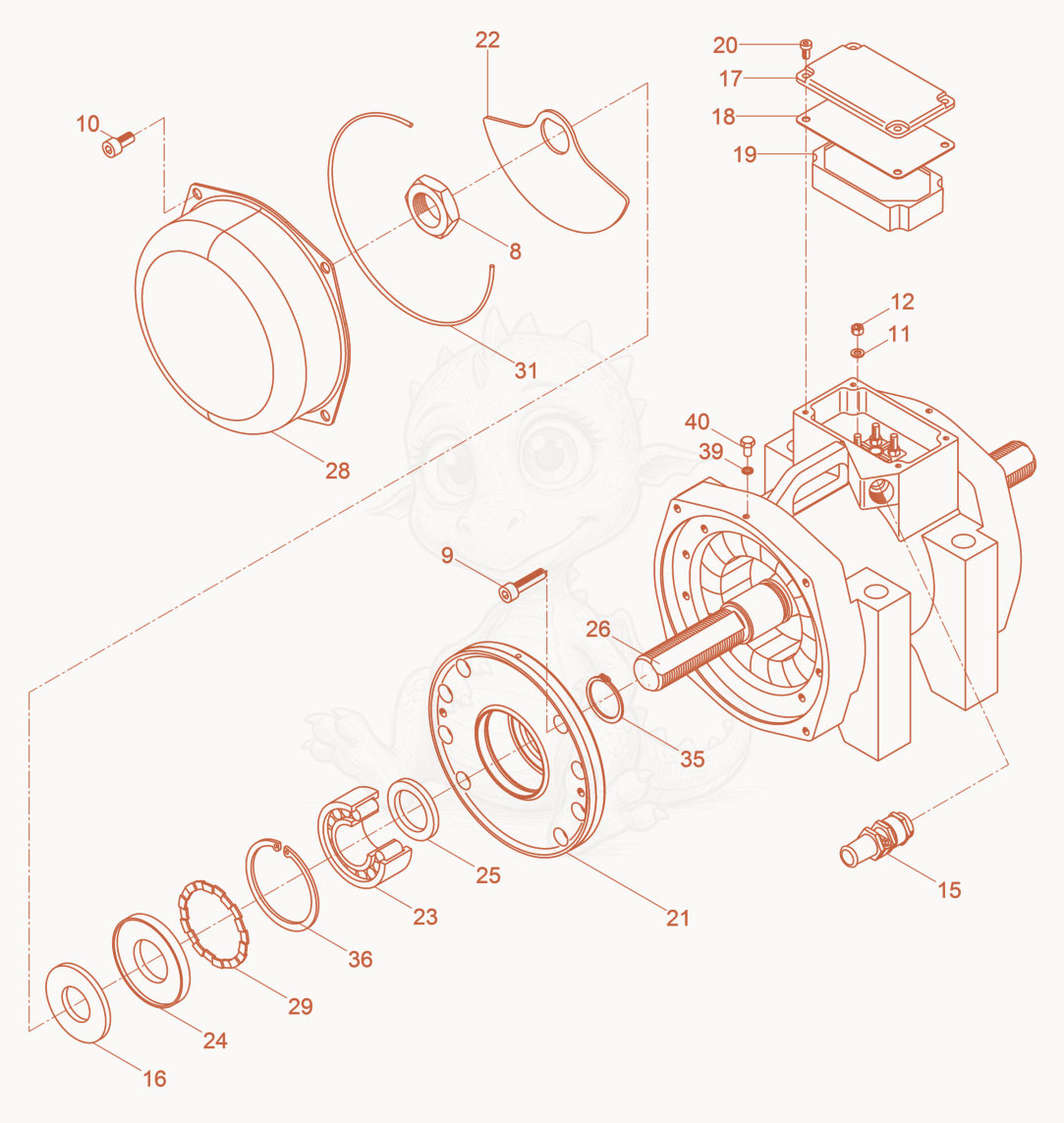

Despiece del Exciter cpl. de una máquina Wacker Neuson AP2560E, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 85000010822
    $4.73
    NUT M30 HEX.JAM - 5000010822×2
  • 95000011540
    $0.55
    SCREW M8 X 35 SOC.HD. - 5000011540×16
  • 105000011544
    $0.44
    SCREW M8 X 16 SOC.HD. - 5000011544×8
  • 115000012643
    $0.22
    WASHER B5.3 MS,FLAT - 5000012643×3
  • 125000012997
    $0.26
    NUT-LOCK,M5 - 5000012997×3
  • 155000201171
    $27.19
    CONNECTOR - 5000201171×1
  • 165000044540No la vendemos
    Washer×2
  • 175000067945
    $59.91
    Cover - 5000067945×1
  • 185000068755
    $6.06
    Seal - 5000068755×1
  • 195000069291
    $21.32
    MOUNT-RUBBER - 5000069291×1
  • 205000095509
    $0.31
    SCREW M5 X 12 SOC.HD. - 5000095509×4
  • 215000098559
    $247.60
    BRACKET-BEARING - 5000098559×2
  • 225000034698
    $11.32
    WEIGHT - 5000034698×10
  • 235000105139
    $78.71
    BEARING-CYLINDER ROLLER - 5000105139×2
  • 245000105207
    $22.55
    SEAL-SET - 5000105207×2
  • 255000105546
    $26.53
    RING-INTERMEDIATE - 5000105546×2
  • 265000105552
    $342.53
    ARMATURE - 5000105552×1
  • 285000105611No la vendemos
    Bonnet×2
  • 295000105623
    $6.15
    RING-SPACER - 5000105623×2
  • 315000106415
    $3.94
    O-RING,HOOD - 5000106415×2
  • 355002003022
    $0.43
    RET.RING-EXT 35MMX1.5MM, - 5002003022×2
  • 365002003023
    $1.47
    RET.RING-INT 72MMX2.5MM, - 5002003023×2
  • 395000021670
    $4.91
    SEAL-RING 6.7 X 10 X 1 - 5000021670×2
  • 405000013550
    $0.40
    SCREW M6 X 8 HX.HD. - 5000013550×2
  • 415100049564No la vendemos
    Power supply cable×1
