BPU3545A-VIBROPLATE

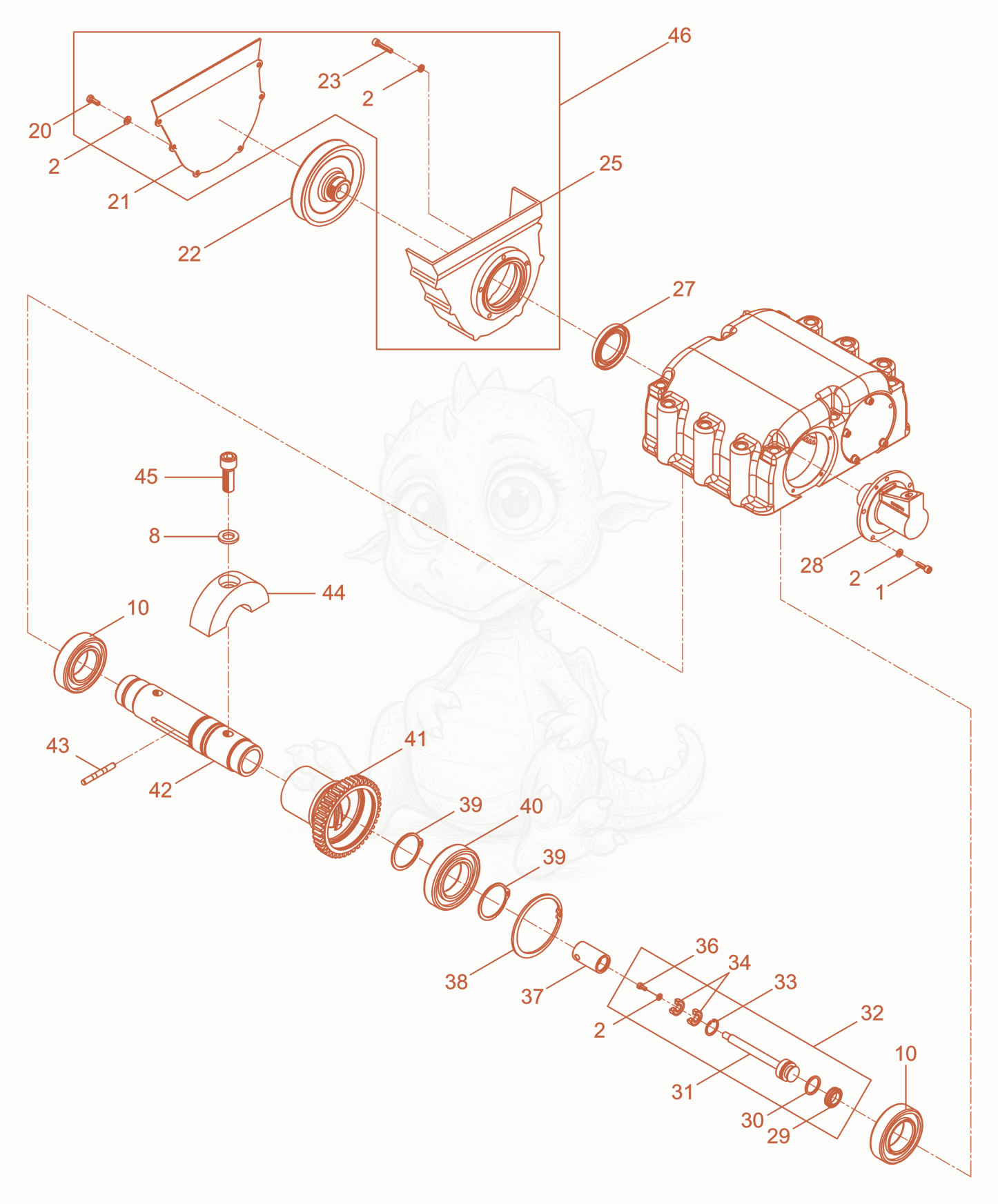

Despiece de Exciter cpl. · BPU3545AUS

Despiece del Exciter cpl. de una máquina Wacker Neuson BPU3545AUS, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

15000011551
$0.20
SCREW M6 X 20 SOC.HD. - 5000011551×5
25000010624
$0.03
WASHER B6.4 FLAT - 5000010624×17
85000021988
$3.05
WASHER-LOCK HS16,HIGH TENSION - 5000021988×1
105000103469
$91.93
BEARING-CYL.RLR,NJ2210-ECP-C4 - 5000103469×2
205000014663
$0.06
SCREW M6 X 16 HX.HD. - 5000014663×6
215000102721
$86.88
PLATE-COVER - 5000102721×1
225000129844
$167.28
V-BELT PULLEY,B/DPU - 5000129844×1
235000011550
$0.09
SCREW M6 X 25 SOC.HD. - 5000011550×5
255000102724
$240.54
BELTGUARD - 5000102724×1
275000048854
$25.29
SEAL-SHAFT 48 X 72 X 7,4B - 5000048854×1
285000048604
$343.92
COVER - 5000048604×1
295000043203
$15.21
Lip seal ring 30x20x6,5 - 5000043203×1
305002006991
$0.79
O-RING 24 X 3-70 Sh - 5002006991×1
315000105206
$177.57
PISTON - 5000105206×1
325000105195
$252.18
PISTON BOLT ASSY.COMPL. - 5000105195×1
335000037136
$0.22
RET.RING-INT 24MMX1.2MM, - 5000037136×1
345000105193
$7.03
BEARING-RADIAL BALL - 5000105193×2
365000012356
$0.33
SCREW M6 X 10 HX.HD. - 5000012356×1
375000048546
$110.77
PIN - 5000048546×1
385002001725
$2.33
RET.RING-INT 100MMX3MM, - 5002001725×1
395002004822
$2.08
RET.RING-EXT 55MMX2MM, - 5002004822×2
405000046366
$45.63
BEARING-RADL BALL 6211 - 5000046366×1
415000046363
$412.97
SLEEVE-EXCITER ADJUSTMENT - 5000046363×1
425000129858
$1,989.00
SHAFT-EXCITER NO. 2 - 5000129858×1
435000043382
$15.35
PIN - 5000043382×1
445000126631
$113.42
ECCENTRIC WEIGHT - 5000126631×2
455000018224
$10.26
SCREW M16 X 40 SOC.HD.X-5100034546 - 5000018224×2
465000212643
$394.69
BOX-COMPLETE,PROTECTIVE - 5000212643×1
