BPU5045A-VIBROPLATE,REV.

Despiece de Carburetor · BPU5045A

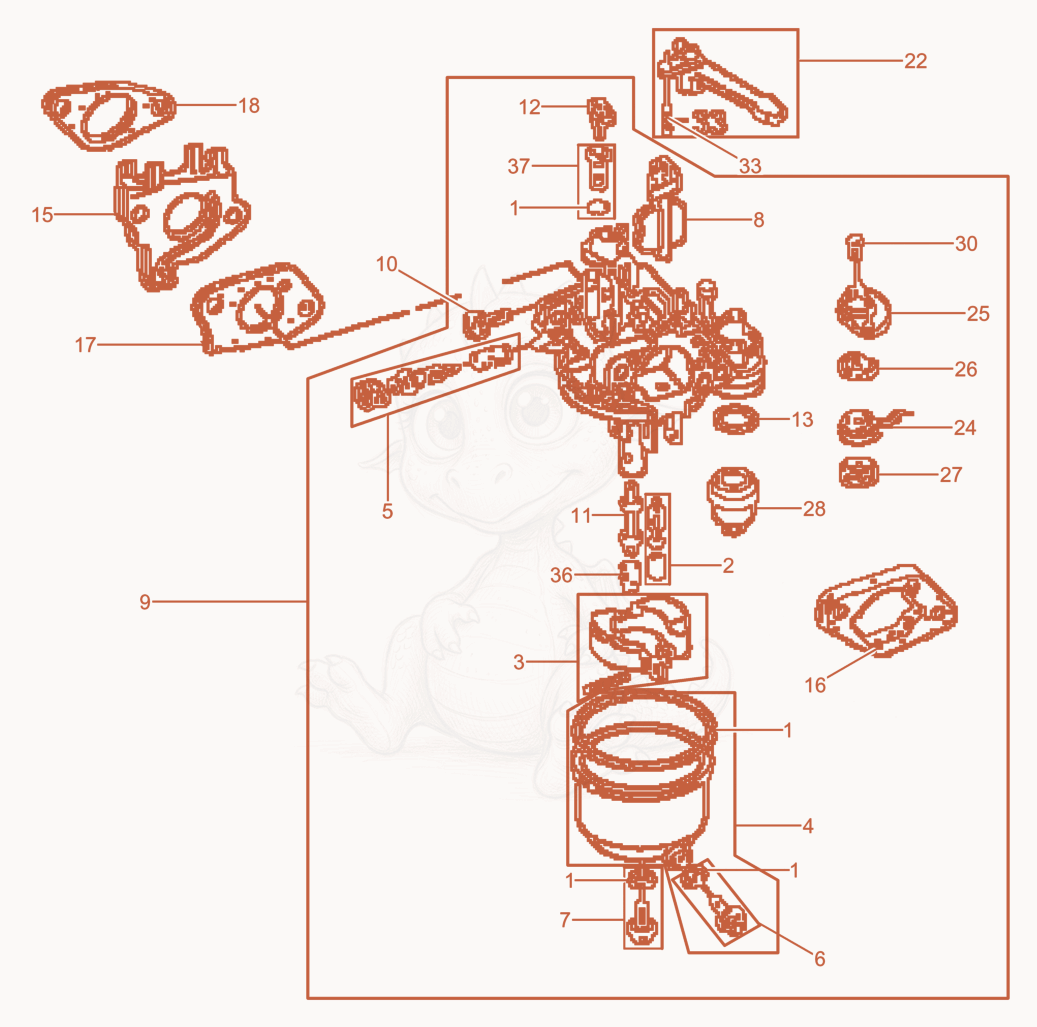

Despiece del Carburetor de una máquina Wacker Neuson BPU5045A, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

15000074767
$22.87
SET-CARBURETOR GASKETS - 5000074767×1
25000074759
$53.05
SET-FLOAT VALVE - 5000074759×1
35000074760
$59.79
SET-CARB.FLOAT - 5000074760×1
45000150267
$51.95
SET-CARBURETOR FLOAT - 5000150267×1
55000089286
$25.15
SCREW-SET - 5000089286×1
65000073273
$12.67
SCREW-W/WASHER,CARB.DRAIN - 5000073273×1
75000071021
$16.19
SCREW- W/WASHER,CARB.BOWL - 5000071021×1
85000082825
$76.23
SET-ENGINE CHOKE - 5000082825×1
95000125837
$197.91
CARBURETOR-COMPLETE - 5000125837×1
105000071018
$22.04
SCREW-THROTTLE STOP - 5000071018×1
115000125838
$41.00
JET-MAIN - 5000125838×1
125000089281
$12.55
SET-COLLAR - 5000089281×1
135000125839No la vendemos
O-Ring×1
155000082816
$24.81
INSULATOR-CARBURETOR MOUNT - 5000082816×1
165000074761
$15.63
SPACER-CARBURETOR MOUNT - 5000074761×1
175000082826
$3.12
GASKET-CARBURETOR MOUNT - 5000082826×1
185000082827
$3.05
GASKET-CARB.INSULATOR - 5000082827×1
225000071013
$12.86
LEVER-CHOKE CONTROL - 5000071013×1
245000150266
$13.50
LEVER-FUEL VALVE - 5000150266×1
255000073269
$7.96
PLATE-FUEL VALVE SETTINGS - 5000073269×1
265000073270
$5.13
SPRING-FUEL LEVER - 5000073270×1
275000073272
$5.07
GASKET-FUEL VALVE LEVER - 5000073272×1
285000071023
$28.91
FILTER-FUEL STRAINER CUP - 5000071023×1
305000156674
$1.14
X-5000078550-SCREW 3X6,PAN - 5000156674×2
335000071014
$2.62
PIN 2 X 12MM,SPRING TYPE - 5000071014×1
365000125840
$9.70
JET-MAIN,SIZE 88 - 5000125840×1
365000089290
$9.70
JET-MAIN #92 - 5000089290×1
365000125841
$9.70
JET-MAIN,SIZE 90 - 5000125841×1
375000125843
$29.41
JET-IDLE,SIZE 45 - 5000125843×1
