BS50-2i RAMMER,11 PL SHO(24MM)

Despiece de Guide Handle cpl. · BS50-2I

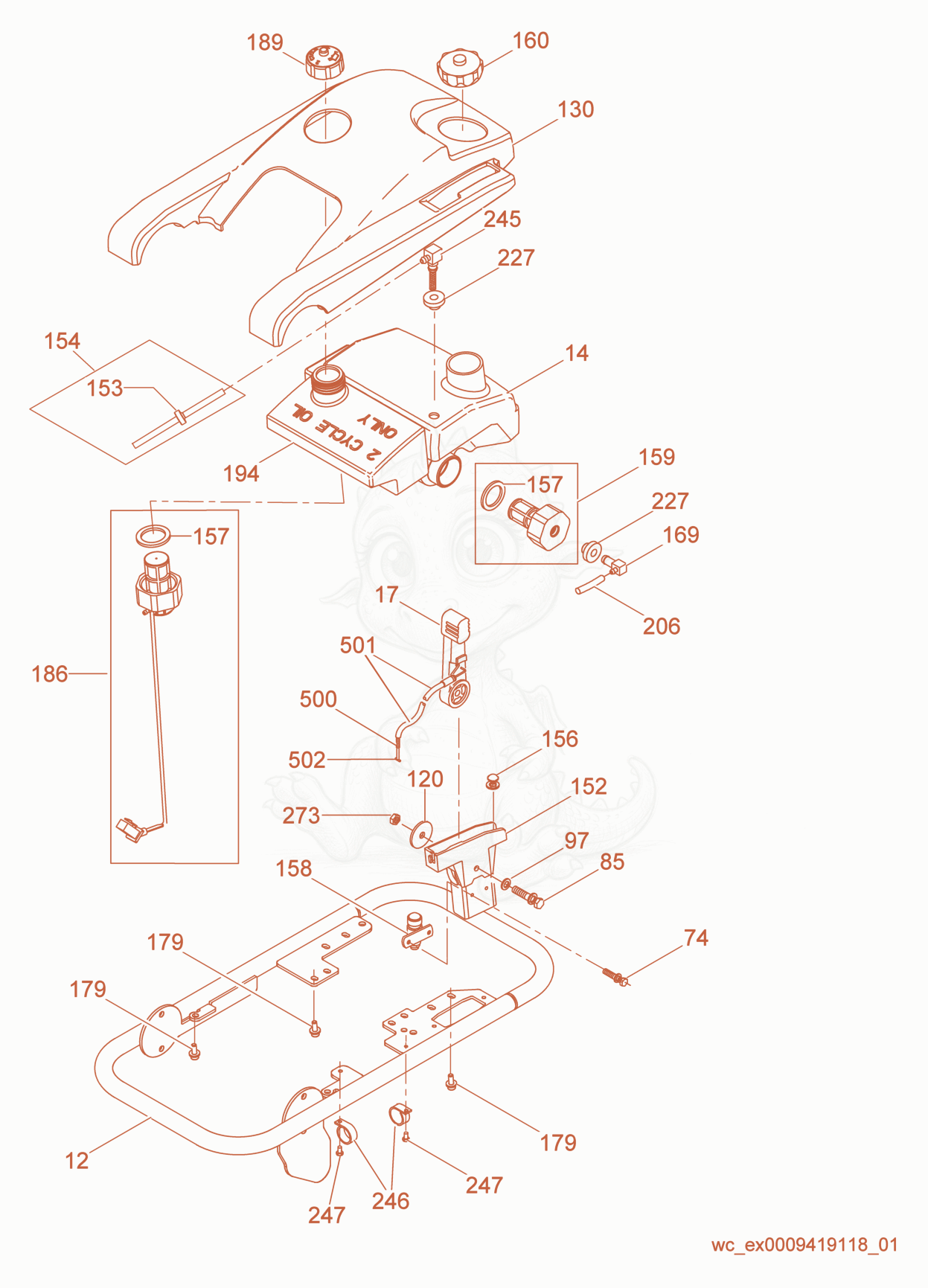

Despiece del Guide Handle cpl. de una máquina Wacker Neuson BS50-2I, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

125000156363
$1,121.30
GUIDE HANDLE,2-CYCLE P-5000112007 - 5000156363×1
145000157899No la vendemos
Fuel tank×1
175000118148
$14.85
CONTROL-THROTTLE - 5000118148×1
745000011572
$0.26
SCREW M4 X 10 SHCS 8.8,ZINC - 5000011572×2
855000011341
$0.36
SCREW M8 X 40 HX.HD. - 5000011341×1
975000010622
$0.10
WASHER-FLAT,M8,ZINC - 5000010622×1
1205000105194
$1.51
WASHER M8 X 1.5 - 5000105194×1
1305000158019
$277.83
COVER-SILENCING OI - 5000158019×1
1525000118149
$6.49
BRACKET-THROTTLE CONTROL - 5000118149×1
1535000165505
$8.18
VALVE-CHECK,VENT LINE,SP - 5000165505×1
1545000165506
$35.33
HOSE-VENT,ASSEMBLY,SP - 5000165506×1
1565000012356
$0.33
SCREW M6 X 10 HX.HD. - 5000012356×2
1575000086312
$7.36
SEAL-RING - 5000086312×2
1585000109329
$14.07
VALVE-FUEL - 5000109329×1
1595000112179
$82.32
KIT-FUEL FILTER W/BUSHING - 5000112179×1
1605000119601No la vendemos
Fuel tank cap cpl.×1
1695000111482
$4.21
FITTING-FILTER,FUEL - 5000111482×1
1795000160861
$0.40
SCREW M6X16 SC HD,W/WASHER,SEM - 5000160861×12
1865000163570
$310.12
KIT-SWITCH-FILTER ASSEMBLY - 5000163570×1
1895000152611
$28.64
X-5200010500 CAP-OIL TANK - 5000152611×1
1945000118848
$173.11
TANK-OIL - 5000118848×1
2065000160088
$1.23
HOSE - 5000160088×1
2275000053577
$0.69
BUSHING-TANK VALVE MOUNTING - 5000053577×2
2455000162852
$5.35
FITTING-FILTER FUEL - 5000162852×1
2465000155562
$5.27
CLIP-WIRE HARNESS,BLACK - 5000155562×2
2475000155845
$0.50
SCREW M5X12 HX HD,BLK MED LOC - 5000155845×2
2485000162823
$2.99
X-5100019498 HOSE-LP1100 OIL SUPPLY - 5000162823×1
2735000172305
$0.22
NUT-LOCK M8 HEX,AUTO,CLASS 9 - 5000172305×1
5005000165628
$6.50
CABLE-WIRE,INNER - 5000165628×1
5015000165627
$8.61
CABLE-CASING,OUTER - 5000165627×1
5025002003655
$3.62
LUG-END,THROTTLE CABLE - 5002003655×1
