BS50-4s RMR,11 PL SH24MM,JPN42

Despiece de Air Cleaner cpl. · BS50-4S

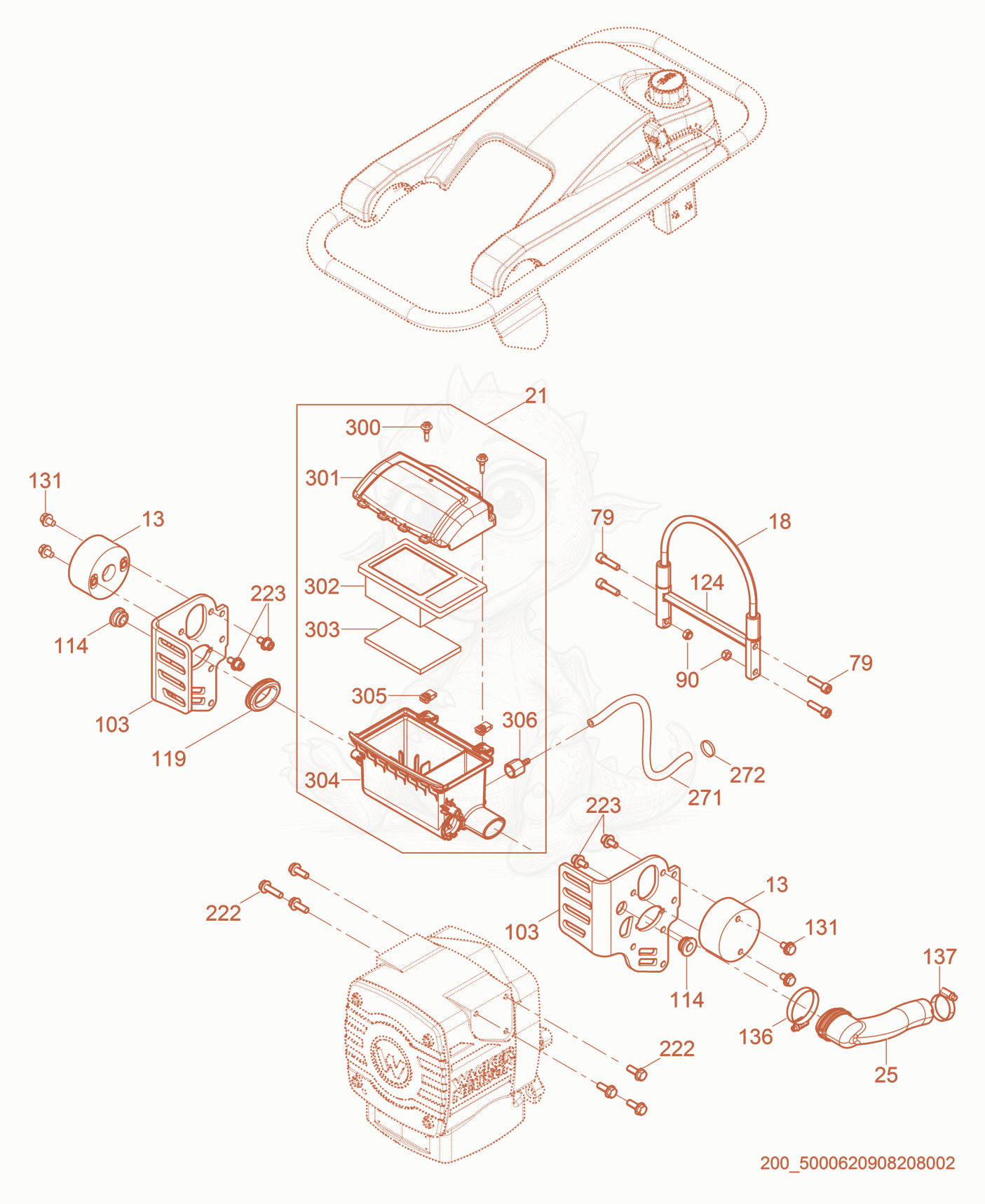

Despiece del Air Cleaner cpl. de una máquina Wacker Neuson BS50-4S, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

135000156979
$97.14
SHOCKMOUNT x-5100032053 - 5000156979×2
185000156936
$59.07
X-5000192868 CABLE-CRANE LIFT - 5000156936×1
215000164937
$89.64
FILTER-AIR BOX,4-CYCLE - 5000164937×1
255000159051
$18.96
TUBE-AIR,4 CYCLE - 5000159051×1
795000011541
$1.06
SCREW M8 X 30 SOC.HD. - 5000011541×4
905000010367
$0.10
NUT-LOCK M8 HEX - 5000010367×2
1035000162274
$235.81
SET-SHOCKMOUNT BRKT.PAIR - 5000162274×1
1145000156981
$0.92
GROMMET-ROUND - 5000156981×2
1195000156982
$1.39
GROMMET-OVAL - 5000156982×1
1245000156394
$10.07
brace - 5000156394×1
1315000161246
$0.33
SCREW M8 X 14 HX.HD. - 5000161246×4
1315000033198
$0.32
WASHER-LOCK B8 - 5000033198×4
1365000078844
$2.07
CLAMP,32/50 - 5000078844×1
1375000089701
$1.42
CLAMP 20-45 WORM DRIVE - 5000089701×1
2225000011457
$1.49
SCREW M8 X 25 HX.HD. - 5000011457×6
2225000033198
$0.32
WASHER-LOCK B8 - 5000033198×6
2235000012361
$0.23
SCREW M8 X 16 HX.HD. - 5000012361×4
2235000033198
$0.32
WASHER-LOCK B8 - 5000033198×4
2715200003939
$4.74
X-5200023647-Hose-Fuel Low Perm - 5200003939×1
2725000111458
$0.03
WRAP-CABLE TIE 3.6X203MM,BLACK - 5000111458×1
3005000164398
$2.67
SCREW-FILTER,AIR BOX - 5000164398×2
3015000164399
$28.13
COVER-FILTER,AIR BOX ASSEMBLY - 5000164399×1
3025000157193
$12.13
FILTER-AIR,ELEMENT - 5000157193×1
3035000160459
$1.14
ELEMENT-PREFILTER - 5000160459×1
3045000164975
$28.38
BASE-AIR BOX,4-CYCLE - 5000164975×1
3055000164397
$4.33
CLIP-FILTER,AIR BOX - 5000164397×2
3065000165181
$4.95
FITTING-1/8 NPT X 1/8 BARB - 5000165181×1
