BS62-2/28

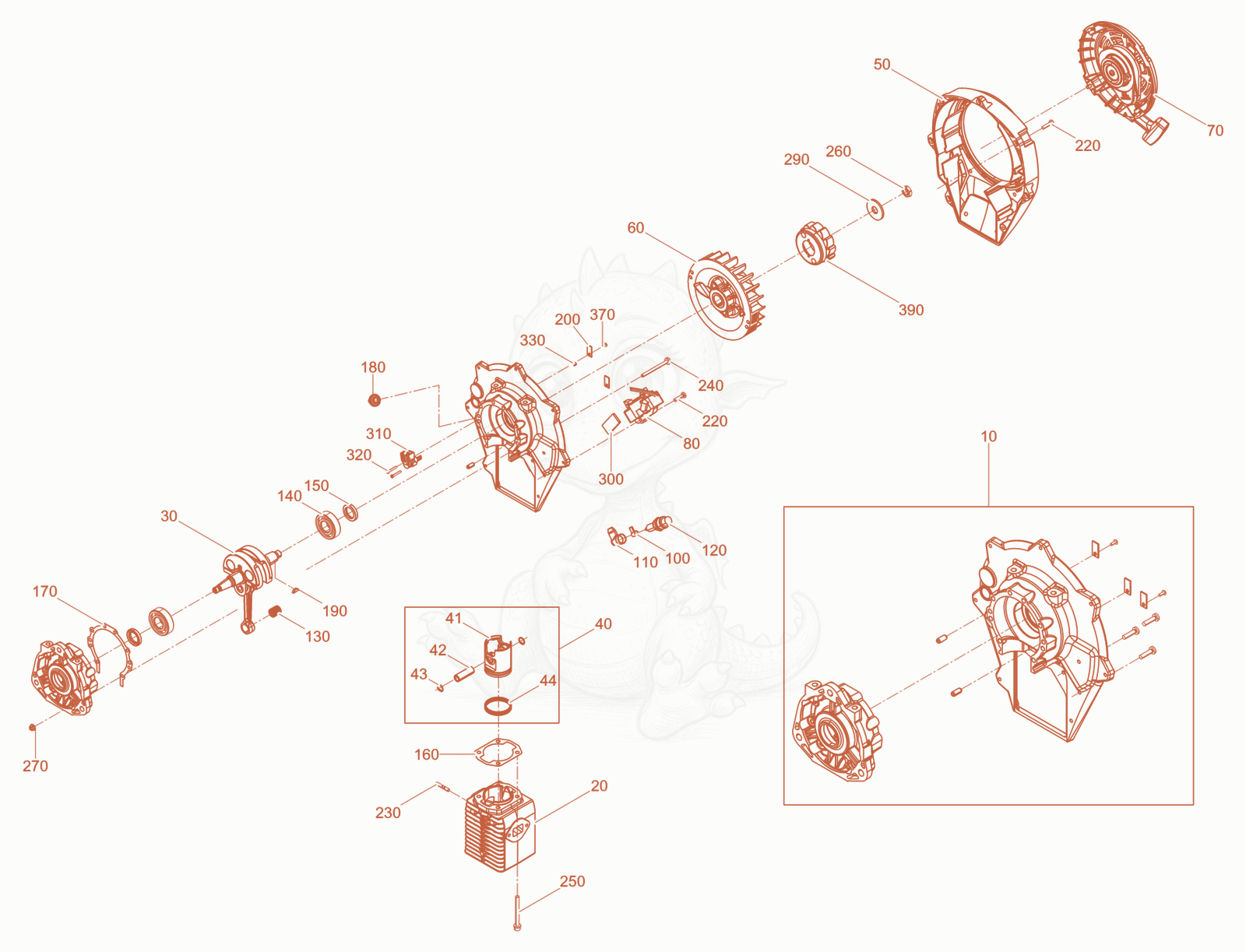

Despiece de Standard engine · BS62-2/28

105100073450No la vendemos
crankcase cpl.×1
205000213076
$115.50
Cylinder - 5000213076×1
305100080484No la vendemos
Crankshaft cpl.×1
405000115324
$44.51
PISTON COMPLETE - 5000115324×1
415000045907No la vendemos
X-0045908 PISTON CPT×1
425000012199
$1.88
PIN-PISTON MOUNT - 5000012199×1
435000012257
$0.62
RET.RING 13MM,73123,FORM A - 5000012257×2
445000045904
$7.28
RING-PISTON 45 X 1.5 - 5000045904×2
505100042845No la vendemos
Fan hood×1
605100042865No la vendemos
Fan wheel×1
705100067030No la vendemos
Recoil starter cpl.×1
805000188217
$185.61
KIT-MODULE IGNITION UNIT,STD - 5000188217×1
1005000153124No la vendemos
Spark plug (terminal) cap×1
1105000153125
$1.77
CAP-SPARK PLUG TERMINAL - 5000153125×1
1205000172332
$4.02
X-5000048333 SPARK PLUG-RL86C,.020 GAP O - 5000172332×1
1305000034835
$8.45
BEARING-NEEDLE,CAGE,KBK121515 - 5000034835×1
1405100065070
$12.69
Ball bearing 6204 - 5100065070×2
1505100006052
$7.12
Shaft seal - 5100006052×2
1605100025323
$3.09
Cylinder gasket R-5000045910 - 5100025323×1
1705100025322
$19.09
Gasket - 5100025322×1
1805100060760
$1.51
Cable passage - 5100060760×1
1905000010388
$0.34
KEY-WOODRUFF 3 X 5 - 5000010388×1
2005000045906
$0.62
RETAINER - 5000045906×3
2205100049413
$0.35
Bolt - 5100049413×10
2305100027617
$2.39
Stud M5x20 - 5100027617×2
2405000215365
$0.92
SCREW M5X60,TORX HD,10.9 - 5000215365×8
2505000095917
$1.01
SCREW M6 X 60,FLANGED SOC.HD. - 5000095917×4
2605000045914
$0.36
NUT M12 X 1.5 HEX,FRM B - 5000045914×1
2705000183750
$0.32
NUT-M5,HX FLG,CL 10,MECH ZP - 5000183750×8
2905000010376
$0.29
WASHER A13 FLAT - 5000010376×1
3005000164990
$1.29
PAD-FOAM W/ADHESIVE - 5000164990×1
3105000080502
$10.59
TERMINAL-POST - 5000080502×1
3205000011730
$0.13
SCREW M3 X 20 CHEESE HD. - 5000011730×2
3305000102116No la vendemos
Hexagon nut×1
3705100027591
$0.13
Blind rivet 3x8 - 5100027591×2
3905100065739No la vendemos
Insert (Fan wheel)×1
