CRT48-31V-ES RIDE-ON TROWEL

Despiece de Tank cpl. · CRT48-31V-ES

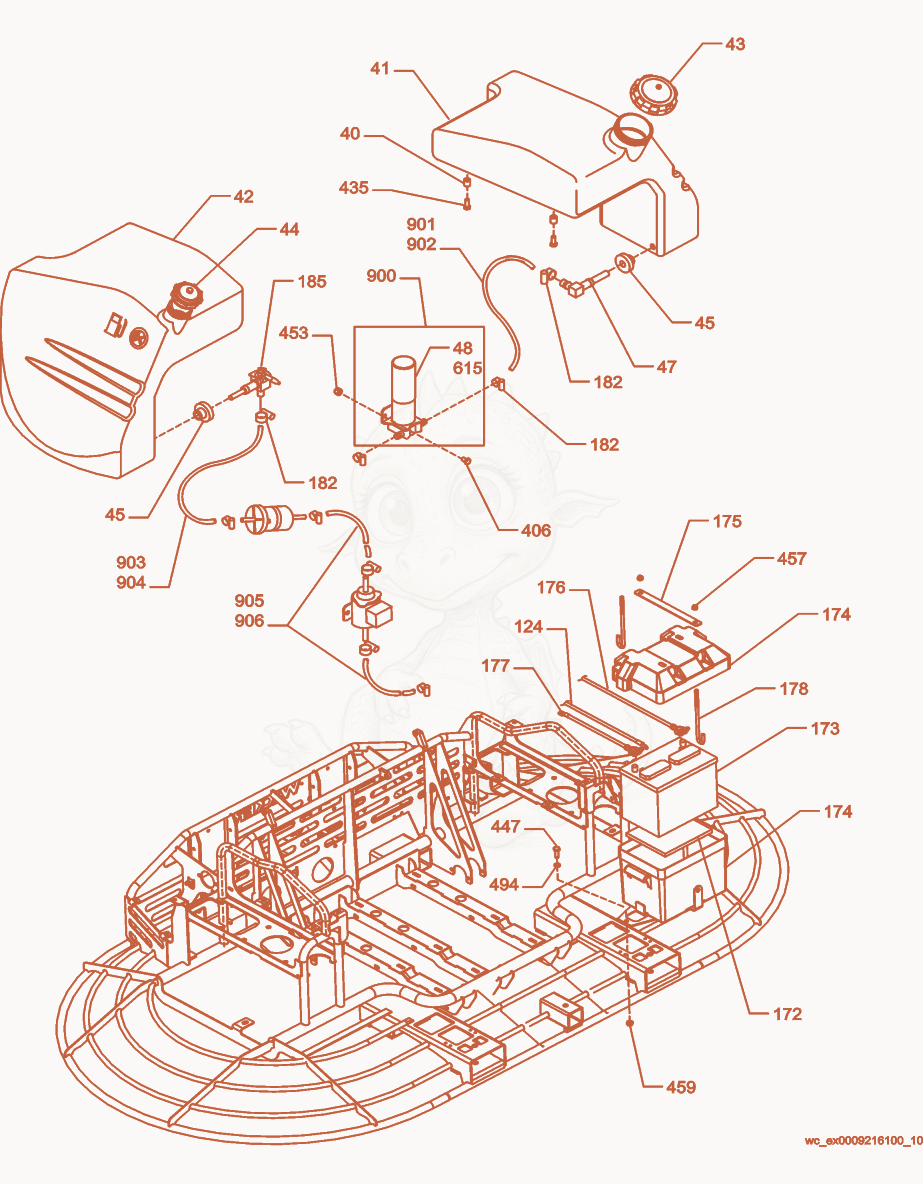

Despiece del Tank cpl. de una máquina Wacker Neuson CRT48-31V-ES, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 405000154536
    $0.60
    SHIM-TANK STANDOFF - 5000154536×6
  • 415000119085
    $326.68
    TANK-WATER,CRT - 5000119085×1
  • 425000119084
    $390.96
    TANK-FUEL,CRT - 5000119084×1
  • 435000079235
    $17.52
    CAP-WATER TANK - 5000079235×1
  • 445000119500
    $8.15
    CAP-FUEL - 5000119500×1
  • 455000110586
    $3.70
    BUSHING-FUEL VALVE - 5000110586×2
  • 475000153103
    $45.91
    VALVE-WATER,180 DEG,60 MESH - 5000153103×1
  • 485000117130No la vendemos
    Water pump×1
  • 1245000152794
    $32.42
    CABLE-GROUNDING,36 - 5000152794×1
  • 1725000081528
    $18.43
    PAD-RUBBER,BATTERY CUSHION - 5000081528×1
  • 1735000153757
    $332.74
    BATTERY-WET,GR 24 - 5000153757×1
  • 1745000152774
    $26.76
    BOX-BATTERY,GROUP 24 - 5000152774×1
  • 1755000152775
    $33.76
    STRAP-BATTERY HOLD DOWN - 5000152775×1
  • 1765000155199
    $17.26
    WIRE-LOOM,LCP500,58.00 - 5000155199×1
  • 1775000152805
    $14.15
    CABLE-BATTERY,NEG. 18 - 5000152805×1
  • 1785000088177
    $2.54
    ROD-BATTERY HOLD DOWN - 5000088177×1
  • 1825000028707
    $0.67
    CLAMP-THREADED,.21-.63 - 5000028707×9
  • 1855000153104
    $19.97
    VALVE-FUEL,180 DEG,200 MESH - 5000153104×1
  • 4065000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×2
  • 4355000079363
    $0.36
    SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×6
  • 4475000011439
    $0.23
    SCREW M10 X 30 HX.HD - 5000011439×1
  • 4535000029117
    $0.03
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×2
  • 4575000025723
    $0.09
    NUT-LOCK 3/8-16,HEX,NYLON INS. - 5000025723×2
  • 4595000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×1
  • 4945000151475
    $0.47
    WASHER-LK M10,SER-INT/EXT-BN783-(A2K) - 5000151475×1
  • 6155000150009
    $0.37
    TERMINAL-RCPT 16-14AWG,INS - 5000150009×2
  • 9005000153267
    $104.23
    KIT-WATER PUMP - 5000153267×1
  • 9015000155195
    $4.65
    HOSE-WATER 3/8 DIA.,23.00 - 5000155195×1
  • 9025000155177
    $5.66
    WIRE-LOOM,LCP625,15.00 - 5000155177×1
  • 9035000155175
    $9.21
    HOSE-FUEL 1/4 DIA.,8.00 - 5000155175×1
  • 9045000155176
    $5.50
    WIRE-LOOM,LCP500,7.00 - 5000155176×1
  • 9055000155196
    $23.00
    HOSE-FUEL 1/4 DIA.,35.00 - 5000155196×1
  • 9065000155198
    $13.26
    WIRE-LOOM,LCP500,34.00 - 5000155198×1
