CRT60-66K

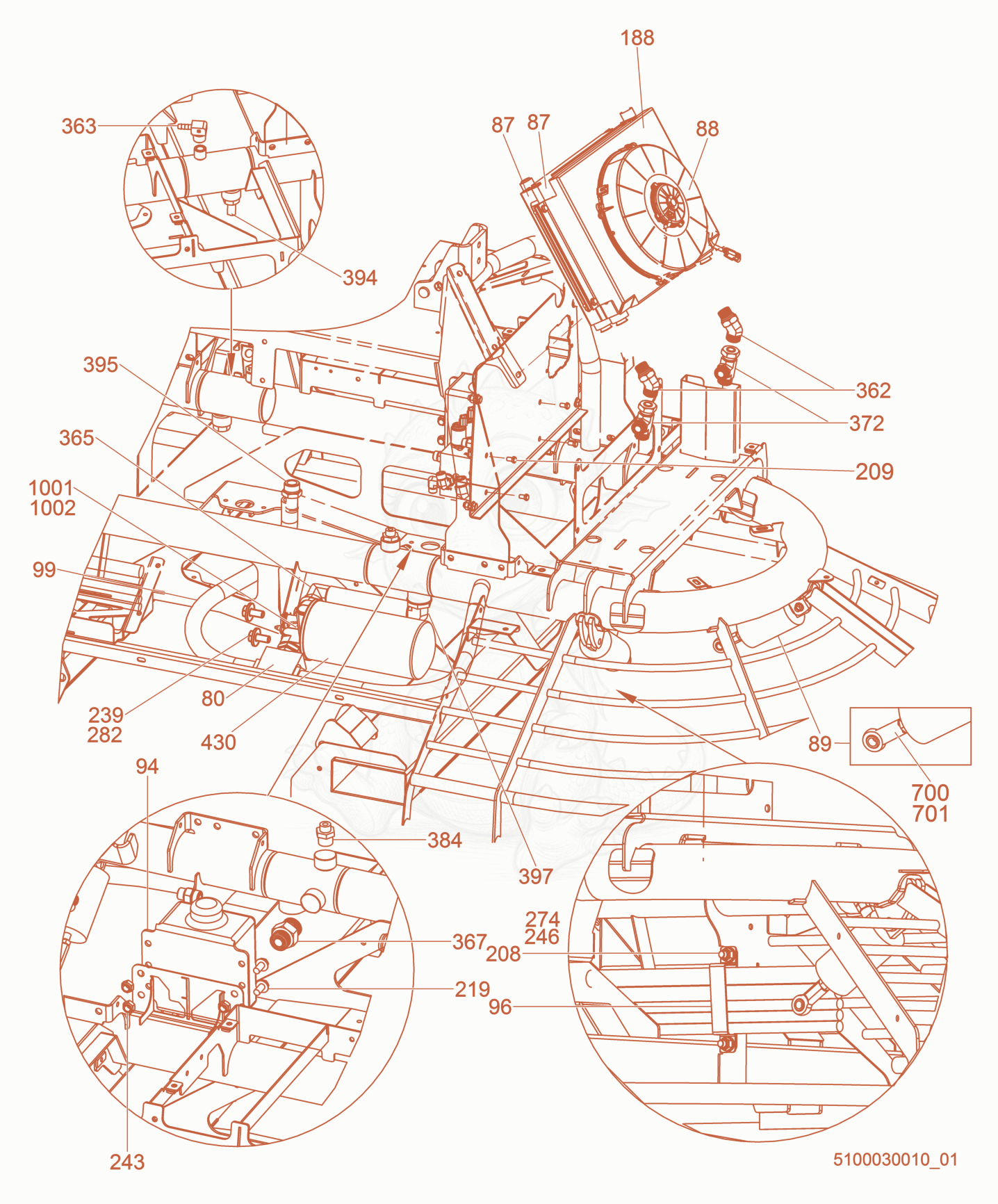

Despiece de Hydraulic System · CRT60-66K

805200003136
$266.35
Fitting-SAE20 MAORB-16HB-16HB - 5200003136×1
875200025609No la vendemos
Radiator×2
885200025589No la vendemos
Fan/Motor×1
895000186618
$882.07
Actuator-Hydraulic - 5000186618×3
945200022925No la vendemos
Tank cpl.×1
945100028084
$11.29
CAP-CRT60 HYD TANK TOP VENTED - 5100028084×1
965000192842
$11.08
BRACKET-HYD.HOSE STRAP P-5000176420 - 5000192842×1
995000028314
$0.78
CLAMP-THREADED,.81-1.5 - 5000028314×4
1885200025586No la vendemos
Shroud×1
2085000028404
$0.26
SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×2
2095000012364
$0.44
SCREW M10 X 20 HX.HD. - 5000012364×4
2465000010367
$0.10
NUT-LOCK M8 HEX - 5000010367×2
2745000010622
$0.10
WASHER-FLAT,M8,ZINC - 5000010622×2
2825000025636
$0.04
WASHER 5/16 NOM,ST,FLAT - 5000025636×1
3625000192761
$16.97
Fitting-45 degree #12 ORB - #12 ORFS - 5000192761×2
3635200002093
$13.68
Fitting - 90° Barb to NPTF - 5200002093×1
3655200001692
$33.43
Fitting-90 Degree Hose Barb - 5200001692×1
3675000193614
$9.05
Fitting-Strght Thread #10 ORFS-#12SAEORB - 5000193614×1
3725000116177
$28.86
FITTING-ADAPTER,TEE - 5000116177×2
3845000112404
$13.22
FITTING-HYD. 8-12 ST. - 5000112404×1
3945000119955
$7.17
FITTING-STRAIGHT,#12 - 5000119955×1
3955200001992
$20.21
Fitting-Hose Barb,1 - 5200001992×1
3975200004058
$41.58
Fitting-#20Hose Barb #16Male ORB 90 deg - 5200004058×1
4305200003952
$237.27
Filter Element - 5200003952×1
7005100036055
$68.71
RADIAL ROD END BEARING - 5100036055×3
7015100036056
$2.60
Nut-Lock, 5/8-18, Gr8, Plated - 5100036056×3
10015200008549
$198.89
Filter Head - 5200008549×1
10025200008548
$165.15
Switch - 5200008548×1
