CRT60-74L

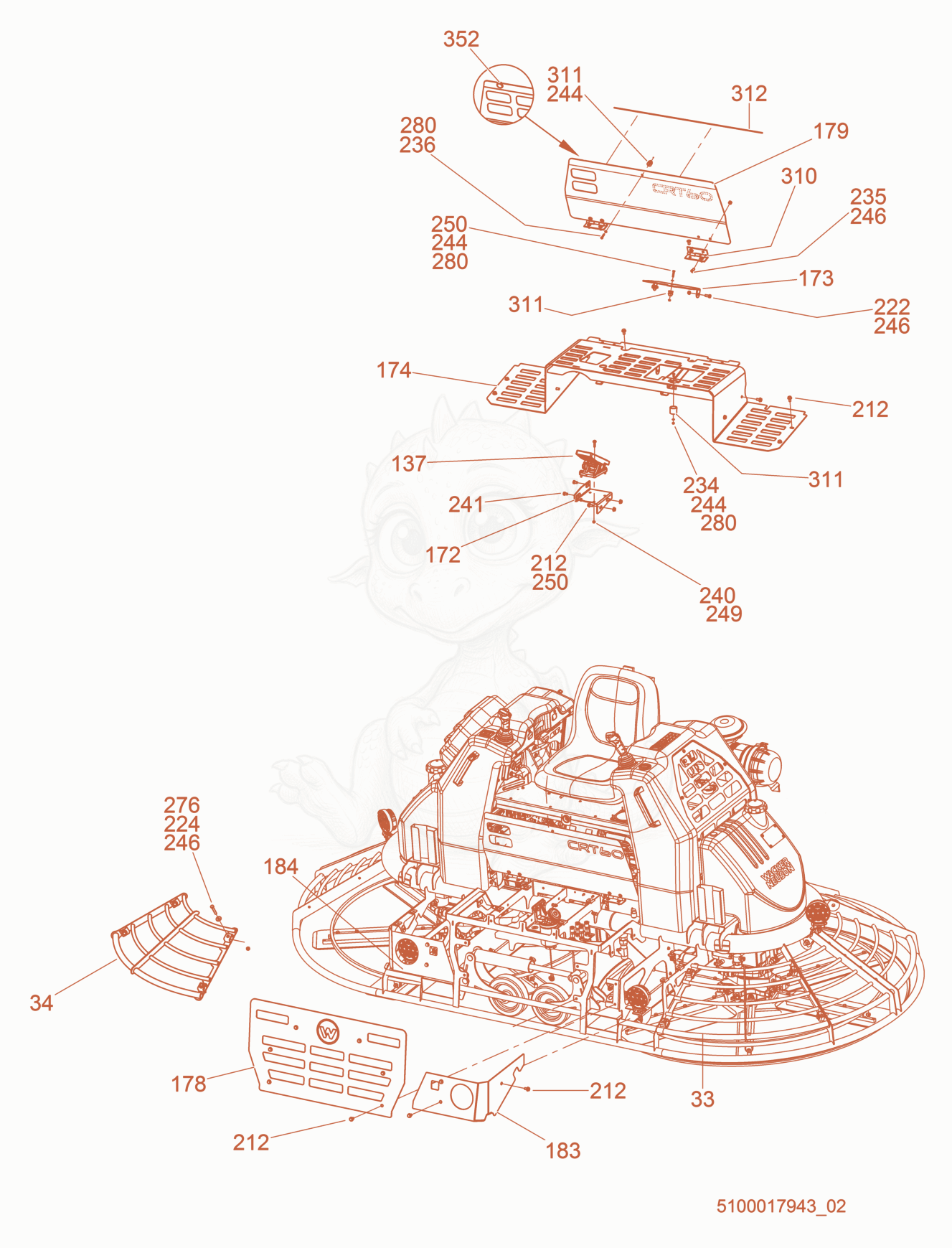

Despiece de Front Panel · CRT60-74L

335000181232
$364.04
GUARD-RING ASSY,LEFT P-5000176420 - 5000181232×1
345000183748
$362.42
GUARD-RING ASSY,RIGHT P-5000176420 - 5000183748×1
1375200024607No la vendemos
Pedal lever cpl.×1
1725200014309No la vendemos
Mount×1
1735200014308No la vendemos
Panel×1
1745200014307No la vendemos
Plate×1
1785200014370No la vendemos
Plate×1
1795200001762
$86.42
Plate-Mid Panel P-5000112006 - 5200001762×1
1835100036557
$101.81
GRILL-LEFT LOWER, LED P-5000176420 - 5100036557×1
1845100036556
$103.34
GRILL-RIGHT LOWER, LED P-5000176420 - 5100036556×1
2125000079363
$0.36
SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×24
2225000012362
$0.40
SCREW M8 X 20 HX.HD. - 5000012362×2
2245000011344
$0.48
SCREW M8 X 55 HX.HD. - 5000011344×8
2345000011477
$0.06
SCREW M5 X 12 HX.HD. - 5000011477×1
2355000163945
$0.26
SCREW M8X16 BTN HD BL ZN 10.9 - 5000163945×8
2365000011474
$0.18
SCREW M5X25 HX.HD. - 5000011474×2
2405000154519
$0.46
SCREW M6X25 HX SER FLG CLR ZP - 5000154519×4
2415000012360
$0.12
SCREW M8 X 12 HX.HD. - 5000012360×2
2445000010369
$0.03
NUT-LOCK M5 HEX. - 5000010369×3
2465000010367
$0.10
NUT-LOCK M8 HEX - 5000010367×18
2495000010368
$0.10
NUT-LOCK M6 HEX. - 5000010368×4
2505000030066
$0.16
NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
2765000010374
$0.22
WASHER B8.4 FLAT - 5000010374×8
2805000010625
$0.14
WASHER B5.3 FLAT - 5000010625×3
3105000163439
$16.68
HINGE-HOOD,GRAY RAL 7043 - 5000163439×2
3115000192831
$18.01
LATCH-DOOR - 5000192831×2
3125100031969
$2.04
GASKET-RUBBER 1/8 X 3/4 X 14-1/4 - 5100031969×1
3525200001770
$5.14
Grommet - 5200001770×1
