CRT60-74LX

Despiece de Wiring harness/Fuse box · CRT60-74LX

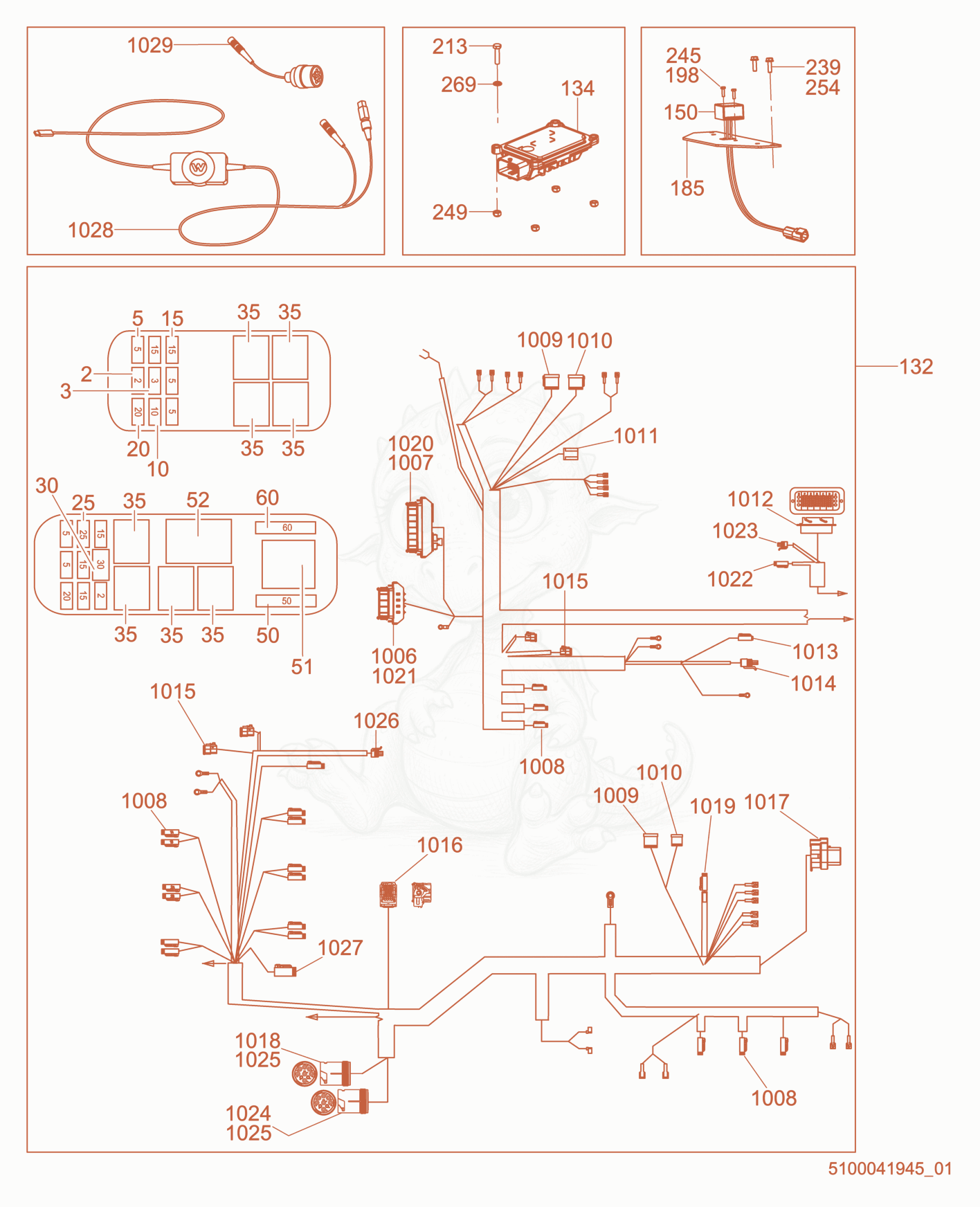

Despiece del Wiring harness/Fuse box de una máquina Wacker Neuson CRT60-74LX, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 25100032133No la vendemos
    Fuse×2
  • 35000175091
    $0.50
    FUSE-3 AMP - 5000175091×1
  • 55200025183No la vendemos
    Fuse×5
  • 105000176735
    $3.63
    FUSE 10 AMP - 5000176735×1
  • 155200008563
    $2.88
    Fuse-Micro, 15A - 5200008563×3
  • 205000153489
    $0.42
    FUSE-20A,MINI BLADE TYPE - 5000153489×2
  • 255200008564
    $5.35
    Fuse-Micro, 25A - 5200008564×1
  • 305100041946
    $35.50
    Cicuit Breaker, 30A - 5100041946×1
  • 355200025182No la vendemos
    Relay×8
  • 505200020898No la vendemos
    Fuse×1
  • 515100031670
    $26.10
    Relay,Panasonic 70V - 5100031670×1
  • 525100032139
    $6.09
    Relay 50A, 12V DC - 5100032139×1
  • 605000172890
    $4.35
    FUSE-MAXI,60 A - 5000172890×1
  • 1325100036708
    $2,272.78
    Wiring-Harness CRT60-74L, P3 - 5100036708×1
  • 1345100038019
    $952.49
    CONTROLLER, ELEC-HYD, TTC-32 - 5100038019×1
  • 1505200011538No la vendemos
    Steering Control unit×1
  • 1855200016768No la vendemos
    Bracket×1
  • 1985000153421
    $0.07
    SCREW M4 X 14 HEX.HD. - 5000153421×4
  • 2135000011469
    $0.09
    SCREW M6 X 25 HX.HD. - 5000011469×4
  • 2395000029116
    $0.18
    SCREW M6 X 1 X 20,FLANGE LOCK - 5000029116×4
  • 2455000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×2
  • 2495000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×4
  • 2545000029117
    $0.03
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×4
  • 2695000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×4
  • 10065100042122
    $87.55
    FUSE RELAY BOX, 48 WAY - 5100042122×1
  • 10075100042120
    $70.26
    FUSE RELAY BOX, BRIC FUSION - 5100042120×1
  • 10085200009614No la vendemos
    Plug Set×14
  • 10095100018250
    $9.39
    CONNECTOR, 16 PIN - 5100018250×2
  • 10105100018239
    $5.16
    CONNECTOR, 12 PIN - 5100018239×2
  • 10115200024224No la vendemos
    Connector×1
  • 10125100018252
    $101.95
    CONNECTOR, 66 PIN - 5100018252×1
  • 10135100018285
    $16.91
    Connector - 5100018285×1
  • 10141000315299No la vendemos
    Housing 6-pol.×1
  • 10151000027429No la vendemos
    Housing×4
  • 10161000306993
    $104.58
    PLUG - 1000306993×1
  • 10171000306995
    $18.27
    PLUG - 1000306995×1
  • 10185100041949
    $13.68
    CONNECTOR, RECEPTACLE, HD - 5100041949×1
  • 10195000160831
    $9.02
    CONNECTOR-PLUG,REGULATOR - 5000160831×1
  • 10205100042121
    $46.45
    COVER, FUSE BOX - 5100042121×1
  • 10215100042123
    $37.77
    COVER, FUSE BOX, 48 WAY - 5100042123×1
  • 10225000160831
    $9.02
    CONNECTOR-PLUG,REGULATOR - 5000160831×1
  • 10235100042124
    $16.26
    Connector - 5100042124×1
  • 10245100018251
    $59.60
    CONNECTOR, HD - 5100018251×1
  • 10251000277443
    $22.68
    protecting cap - 1000277443×2
  • 10265100041948
    $16.26
    Connector - 5100041948×1
  • 10281000330258No la vendemos
    Cable-Wanda×1
  • 10291000312256No la vendemos
    Adapter wiring harness×1
