CRTv 36-26A Trowel, w/Wheel Kit

Despiece de Frame/Panel cpl. · CRTV36-26A

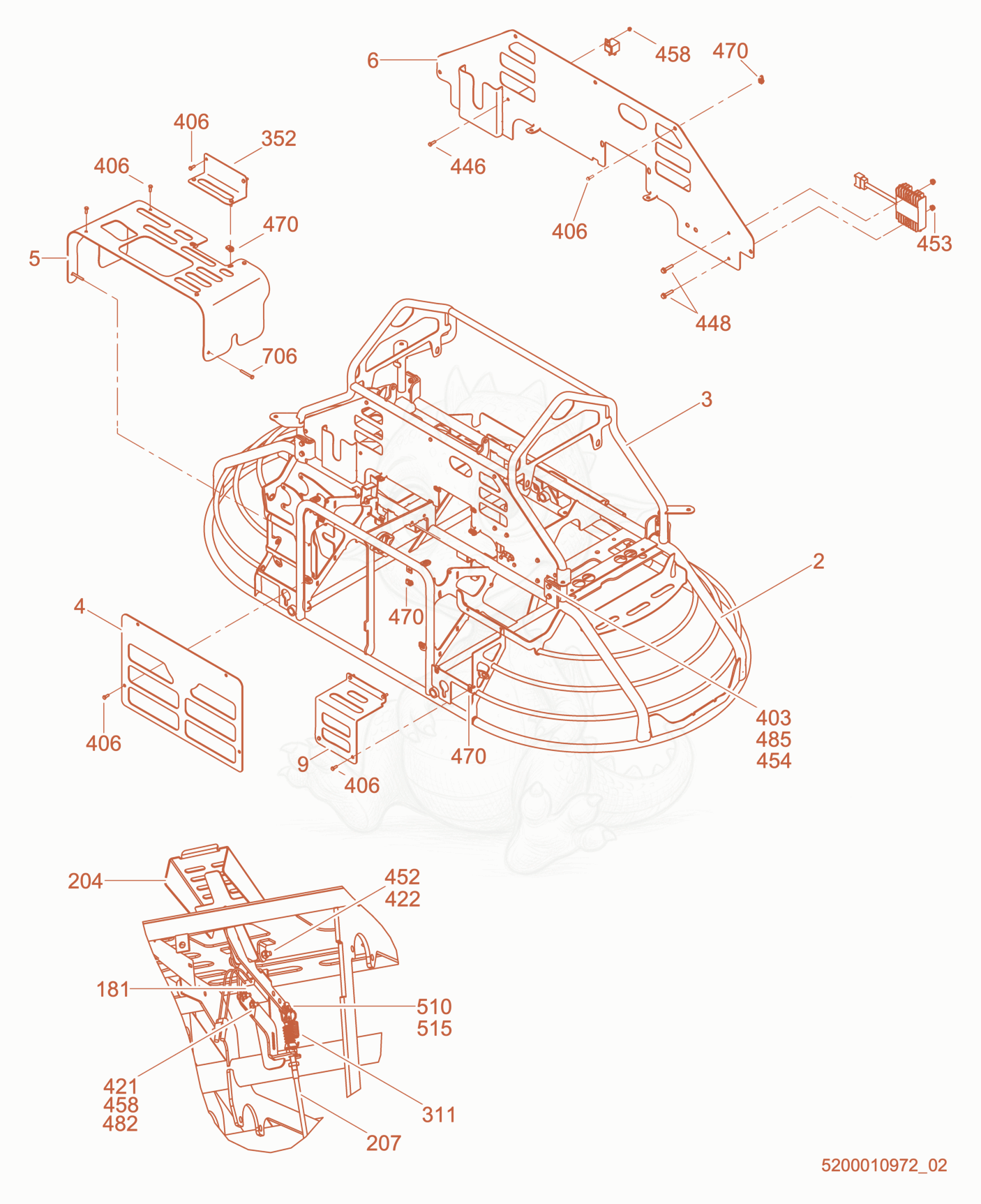

Despiece del Frame/Panel cpl. de una máquina Wacker Neuson CRTV36-26A, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

25000164844
$1,536.21
FRAME,CRT36 P-5000176420 - 5000164844×1
35000164845
$596.22
FRAME,CRT36 UPPER P-5000176420 - 5000164845×1
45000164886
$263.98
PLATE-FRONT,CRT36 P-5000112006 - 5000164886×1
55000164893
$158.99
PLATE-FOOT ASSY,36 P-5000176420 - 5000164893×1
65000164887
$164.28
PLATE-ASSY,MID,CRT36 P-5000112006 - 5000164887×1
95000164889
$29.38
PANEL-DECK,LFT P-5000176420 - 5000164889×1
1815000117384
$146.99
SWITCH-THROTTLE SENSE - 5000117384×1
2045000165241
$180.92
LEVER-PEDAL ASSEMBLY P-5000176420 - 5000165241×1
2075000165510
$15.81
CABLE-THROTTLE - 5000165510×1
3115000165320
$7.08
SPRING-EXTENSION - 5000165320×1
3525000172321
$15.44
PLATE-FILTER ACCESS P-5000176420 - 5000172321×1
4035000011457
$1.49
SCREW M8 X 25 HX.HD. - 5000011457×8
4065000028949
$0.29
SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×21
4215000011476
$0.09
SCREW M5 X 16 HX.HD. - 5000011476×2
4225000165319
$1.90
SCREW M6 X 50 SOC HD - 5000165319×1
4465000011477
$0.06
SCREW M5 X 12 HX.HD. - 5000011477×1
4485000111218
$1.68
SCREW M6 X 30,HX.HD,SER - 5000111218×2
4525000010368
$0.10
NUT-LOCK M6 HEX. - 5000010368×1
4535000029117
$0.03
NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×2
4545000010367
$0.10
NUT-LOCK M8 HEX - 5000010367×8
4585000010369
$0.03
NUT-LOCK M5 HEX. - 5000010369×1
4585000010369
$0.03
NUT-LOCK M5 HEX. - 5000010369×2
4705000150959
$0.52
NUT-LOCK,M6 CLIP,PHOSPHATE - 5000150959×19
4855000010622
$0.10
WASHER-FLAT,M8,ZINC - 5000010622×4
5105000116784
$0.23
PIN-CLEVIS 1/4 X 1/2 - 5000116784×1
5155000075161
$0.20
PIN 1-3/16 LONG .073DIA,COTTER - 5000075161×1
7065000011331
$0.25
SCREW M6 X 50 HX.HD. - 5000011331×2
