CT30AGT-E,CE-TROWEL

Despiece de Drive System/Engine · CT30AGT-E

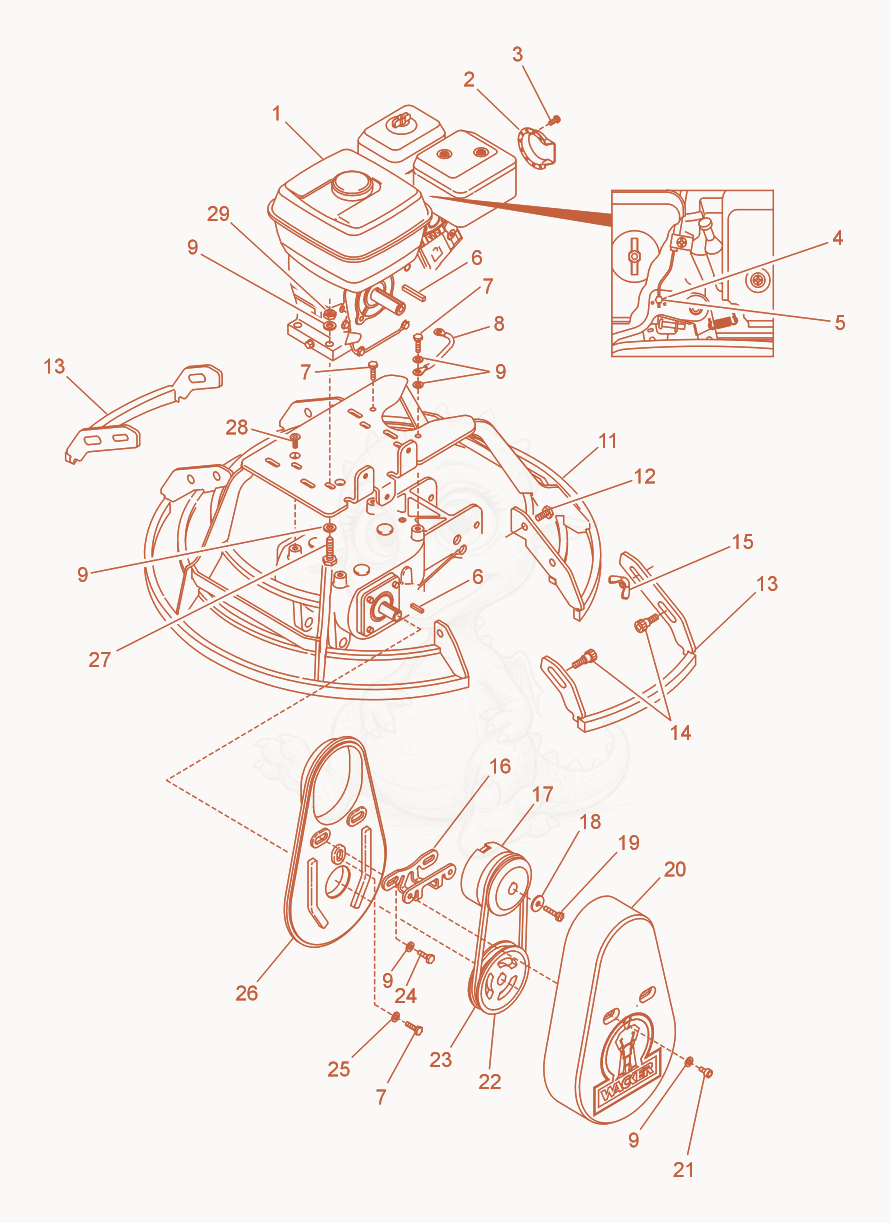

Despiece del Drive System/Engine de una máquina Wacker Neuson CT30AGT-E, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

15000089226No la vendemos
Honda engine×1
25000081756
$30.82
BAFFLE-EXHAUST - 5000081756×1
35000071073
$0.12
SCREW M4 X 6,C - 5000071073×2
45000028330
$6.86
CONNECTOR-WIRE SWIVEL - 5000028330×1
55000028329
$0.25
SCREW #8-32 X 1/4,HX.HD.MACH. - 5000028329×1
65003007018
$0.19
KEY-SQUARE 3/16 X 1-13/16 - 5003007018×2
75000011457
$1.49
SCREW M8 X 25 HX.HD. - 5000011457×3
85000079224
$6.03
WIRE-ASSEMBLY,ELECTRIC JUMPER - 5000079224×1
95000010622
$0.10
WASHER-FLAT,M8,ZINC - 5000010622×15
115000151687
$1,029.01
RING-TROWEL GUARD,CT30 - 5000151687×1
125000025555
$0.20
SCREW 3/8-16 X 1-1/4 GR5,HX.HD - 5000025555×2
135000110329
$147.97
GUARD-EDGER,CT30 - 5000110329×2
145000110356
$1.29
SCREW 3/8 X 3/8, SHOULDER - 5000110356×4
155000110519
$1.32
NUT-WING 3/8-16,LOCKING - 5000110519×2
165000085965
$115.66
MOUNT-BELTGUARD - 5000085965×1
175000074019
$252.82
CLUTCH-CENTRIFUGAL W/.75 BORE - 5000074019×1
185000072319
$7.18
WASHER 5/16 X 1-1/8 X 11GA - 5000072319×1
195000054147
$7.78
SCREW 5/16-24 X 1-1/4,HX.LOCK - 5000054147×1
205000118605
$113.36
CASTING-BELTGUARD - 5000118605×1
215000011543
$0.39
SCREW M8 X 20 SOC.HD. - 5000011543×2
225000154290
$38.12
PULLEY, AK34 X 3/4 - 5000154290×1
235000154289
$38.30
BELT-V A23 - 5000154289×1
245000011456
$0.29
SCREW M8 X 30 HX.HD. - 5000011456×2
255000025636
$0.04
WASHER 5/16 NOM,ST,FLAT - 5000025636×1
265000073585
$80.00
CASTING-PLATE,BELT GUARD MOUNT - 5000073585×1
275000011453
$0.47
SCREW M8 X 45 HX.HD. - 5000011453×4
285000021563
$0.25
SCREW M8 X 20 FLAT HD. - 5000021563×2
295000010367
$0.10
NUT-LOCK M8 HEX - 5000010367×4
