CT36-400E

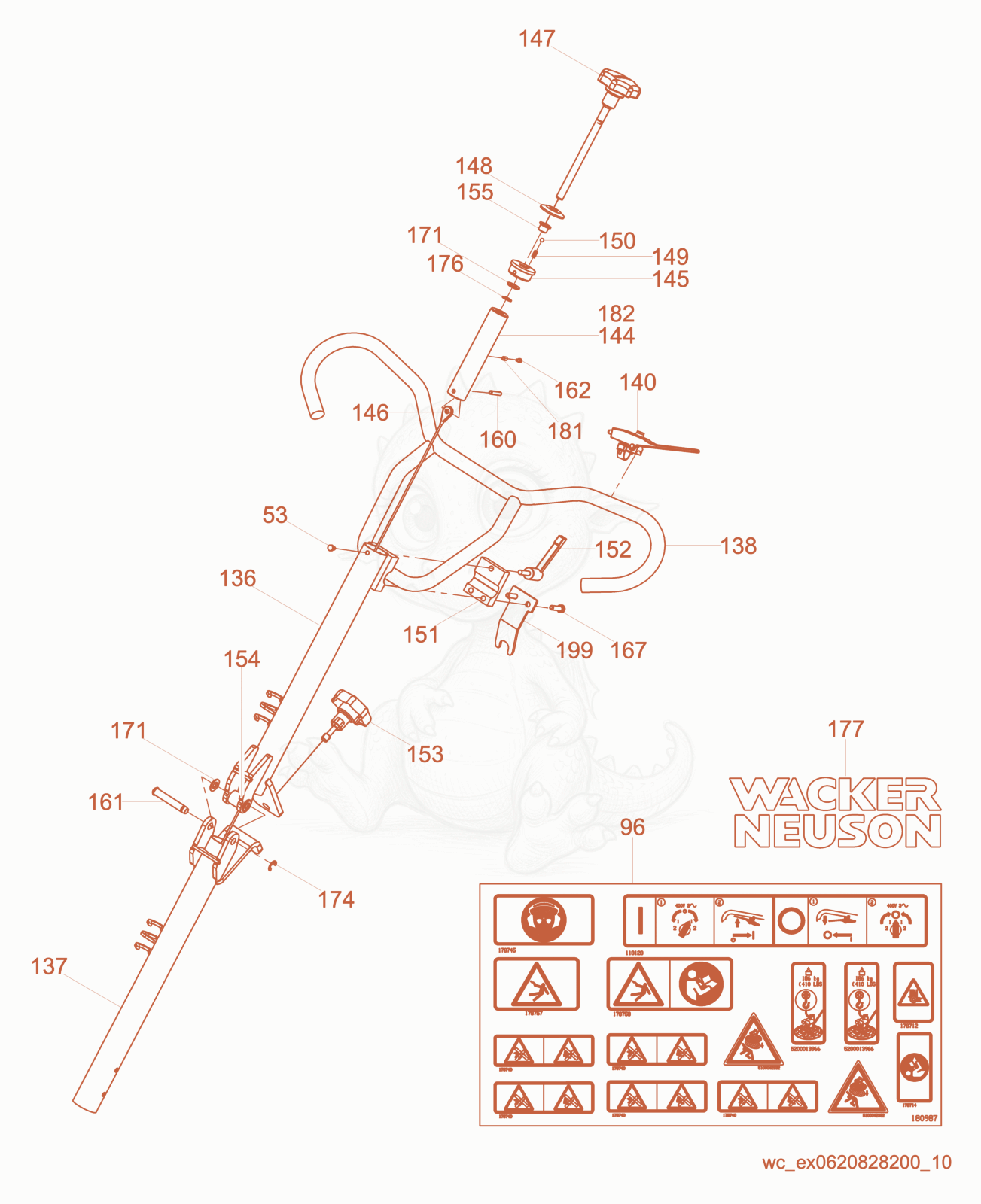

Despiece de Handle-Electric · CT36-400E
- SCREW M6 X 10 HX.HD. - 5000012356×1
- LABEL-SHEET,EU CT-ELECTRIC - 5000180987×1
- HANDLE-TROWEL,TWIST,ADJ,FOLD - 5000170008×1
- HANDLE-TROWEL,ELEC,LOWER - 5000170011×1
- HANDLE-ADJUSTABLE,ELECTRIC P-5000176420 - 5000165502×1
- LEVER,DEADMAN CONTROL - 5000118180×1
- NUT-PITCH,SMALL - 5000165276×1
- HOLDER-HANDLE BEARING - 5000154747×1
- CABLE-PITCH CONTROL - 5000154741×1
- KNOB-PITCH CONTROL - 5000153077×1
- PLATE-PITCH DETENT - 5000160300×1
- SPRING-COMPRESSION - 5000157000×1
- BALL-DETENT - 5000157008×1
- BLOCK-LOWER P-5000176420 - 5000163959×1
- HANDLE-LEVER,CLAMP - 5000164837×1
- KNOB-CLAMP FOLDING - 5000164205×1
- PULLEY-NYLON - 5000164196×1
- BEARING-FLANGE - 5000154748×1
- PIN 1/4 D.X1-3/8 LG,ROLL-PLAIN - 5000165406×1
- PIN-CLEVIS - 5000164207×1
- SCREW M4 X 16 SOC.HD. - 5000011570×1
- SCREW M8 X 35 HX.HD. - 5000011340×2
- WASHER B13 FLAT - 5000010620×3
- RING-RETAINING - 5000164208×1
- RET.RING-EXT 9MM - 5000155138×1
- LABEL-LOGO 40MM,RAL 9006 - 5000222107×2
- SPACER-1/4 OD X .171 ID X 3/8 LG - 5000165404×1
- SLEEVE-WEB,3/4 TO 2 DIA X9 LG - 5000165405×1
- BRACKET-FITTING P-5000176420 - 5000164950×1
