DF16

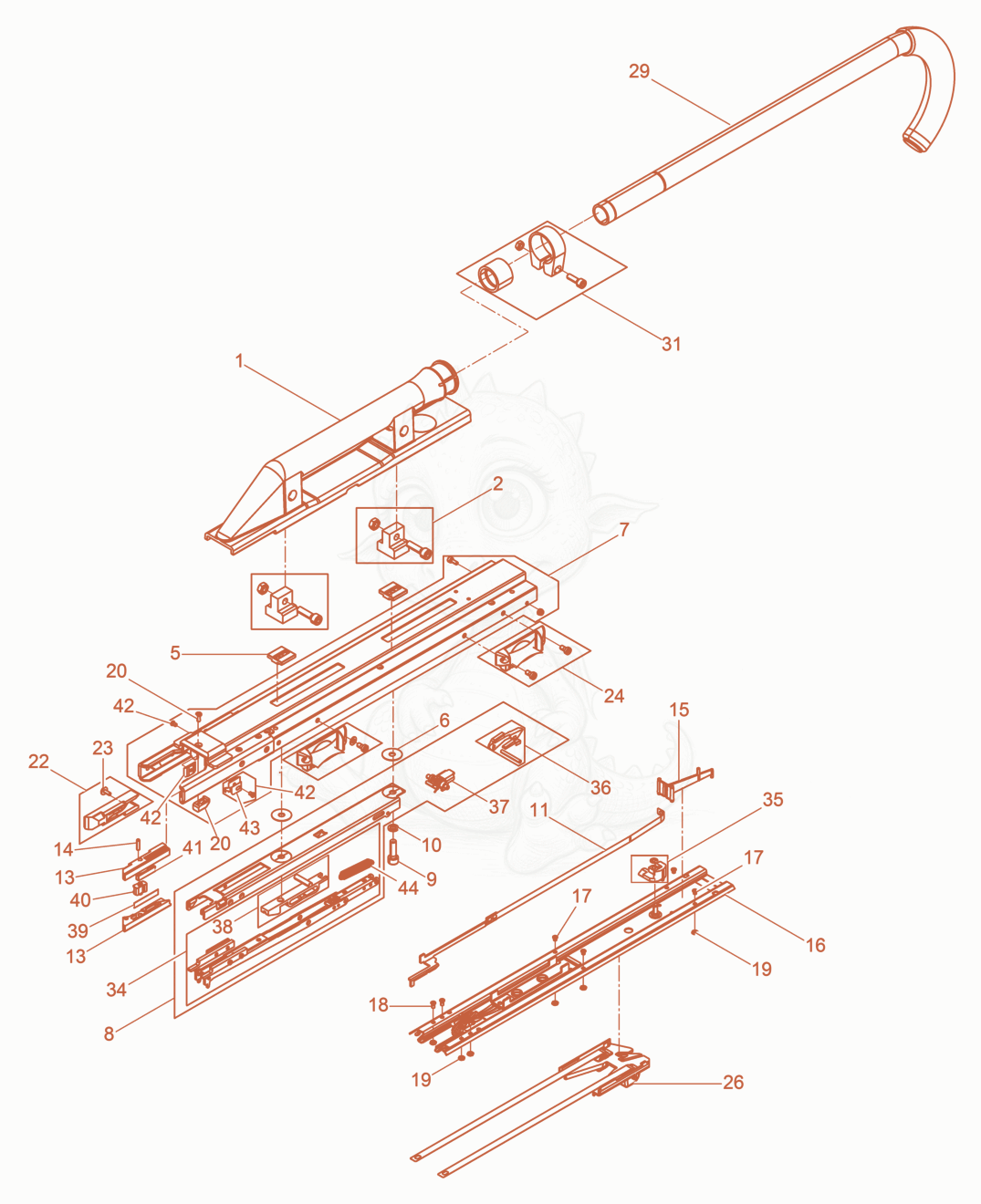

Despiece de Upper Part · DF16
- HANDLE-STARTER - 5000218690×1
- NUT-T - 5000218676×1
- SCREW M6 X 22 SOC.HD. - 5000012373×2
- slideway - 5000209440×2
- WASHER - 5000208455×2
- Housing - 5000218692×1
- RAIL-ADVANCE - 5000208457×1
- SCREW - 5000219190×2
- WASHER-SPRING - 5000209442×1
- ROD-PULL,CPL. - 5000209434×1
- BLOCK-SLIDING,RIGHT - 5000218694×1
- PIN-ROLL - 5000209452×1
- Lock - 5000208453×1
- COVER CPL. - 5000208480×1
- BOLT-COUNTERSUNK - 5000209406×4
- BOLT-COUNTERSUNK - 5000209474×4
- NUT-HEXAGON - 5000209445×8
- block cpl. - 5000218678×1
- BLOCK-SLIDING,LEFT - 5000218679×1
- SCREW - 5000209450×2
- FIXING DEVISE CPL. - 5000218680×2
- MAGAZINE TENSIONER - 5000208447×1
- HANDLE CPL-TUBULAR - 5000215981×1
- RING CPL-CLAMPING - 5000218681×1
- VANE CPL. - 5000209427×1
- Deflector - 5000218677×1
- Spring cpl. - 5000218698×1
- CATCH CPL. - 5000218699×1
- Control unit cpl. - 5000218700×1
- ADJUSTING SYSTEM - 5000218695×1
- TUMBLER - 5000209317×1
- VALVE-RELAY - 5000215991×1
- GUIDE COMPLETE - 5000218702×1
- Spring - 5000208472×1
- Spring - 5000208468×1
