DPS1850H-VIBROPLATE

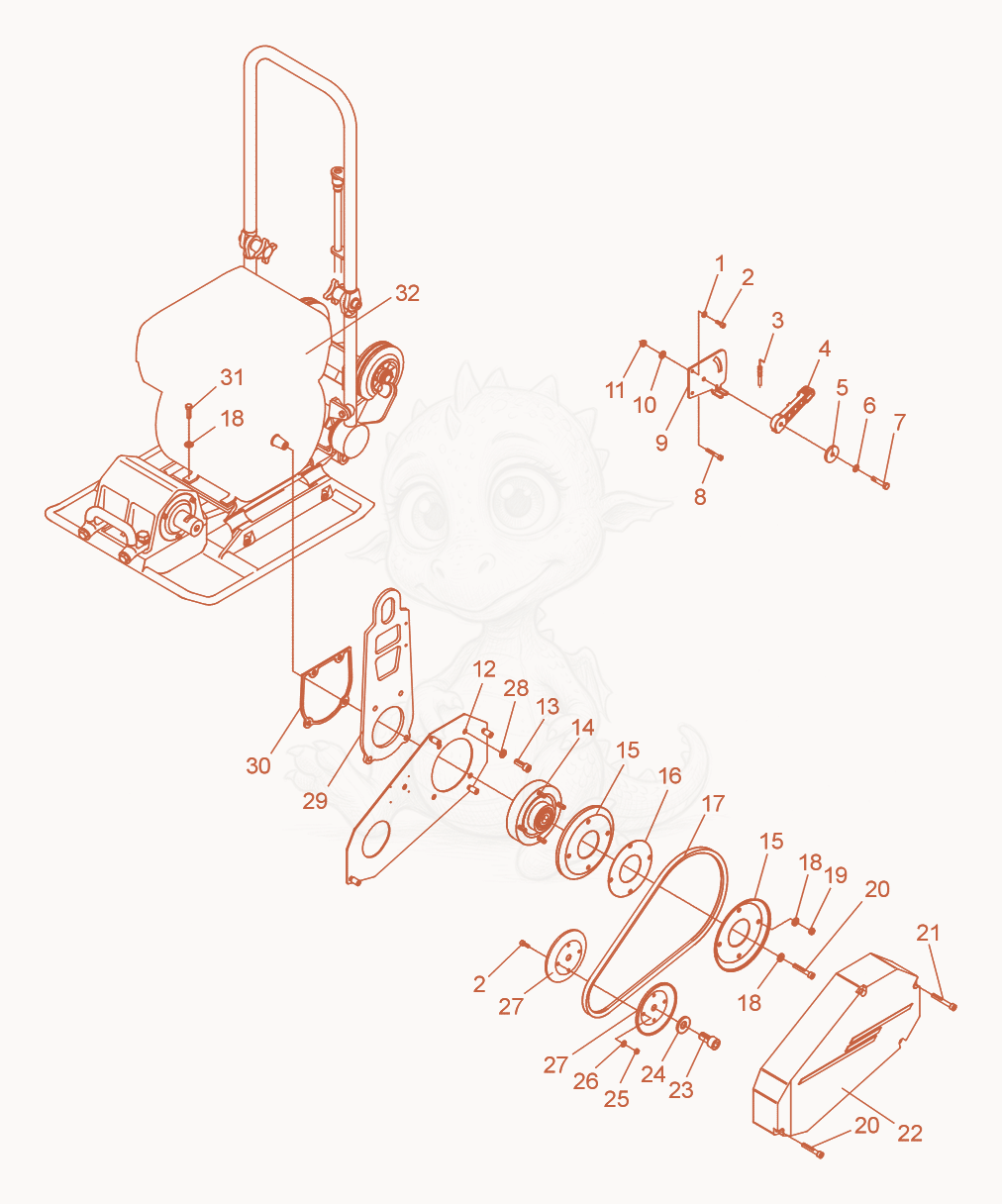

Despiece de Vibratory Plate cpl. · DPS1850H
- 5000011554$0.13SCREW M6 X 12 SOC.HD. - 5000011554×1
- WASHER B6.4 FLAT - 5000010624×1
- SCREW M6 X 16 SOC.HD. - 5000011553×5
- CABLE-BOWDEN - 5000125809×1
- CONTROL-THROTTLE - 5000111202×1
- WASHER M8 X 1.5 - 5000105194×1
- SPRING DISC C16,0 GR1 - 5000104978×1
- SCREW M8 X 40 HX.HD. - 5000011341×1
- SCREW M6 X 35 SOC.HD. - 5000011548×1
- 95000125807No la vendemosBearing×1
- WASHER-FLAT,M8,ZINC - 5000010622×1
- NUT-LOCK VM8 HEX - 5000033356×1
- 125000108251No la vendemosFixing plate cpl.×1
- SCREW M10 X 35 SOC.HD. - 5000011533×4
- Centrifugal clutch - 5000108162×1
- 155000047280No la vendemosV-belt pulley half×2
- 165000047282No la vendemosDistance washer×3
- BELT-V,DPU2430 - 5000058322×1
- WASHER-LOCK B8 - 5000033198×9
- NUT M8 8,HEX - 5000010882×4
- 205000011537No la vendemosCheese head screw×2
- SCREW M8 X 60 SOC.HD. - 5000013575×3
- 225000099791No la vendemosBelt guard×1
- SCREW M16 X 30 SOC.HD. - 5000044634×1
- WASHER-LOCK 16 - 5000043353×1
- NUT M6 8,HEX - 5000010880×4
- WASHER-LOCK 6 FST - 5000058381×4
- 275000099828No la vendemosV-belt pulley half×2
- WASHER-LOCK 10 - 5000033988×8
- 295000108293No la vendemosLifting point×1
- 305000108275No la vendemosAdaptor×1
- SCREW M8 X 25 SOC.HD. - 5000011542×4
- 325000126190No la vendemosDiesel engine×1
