Vibroplate DPU100-70

Despiece de Upper Mass cpl. · DPU100-70

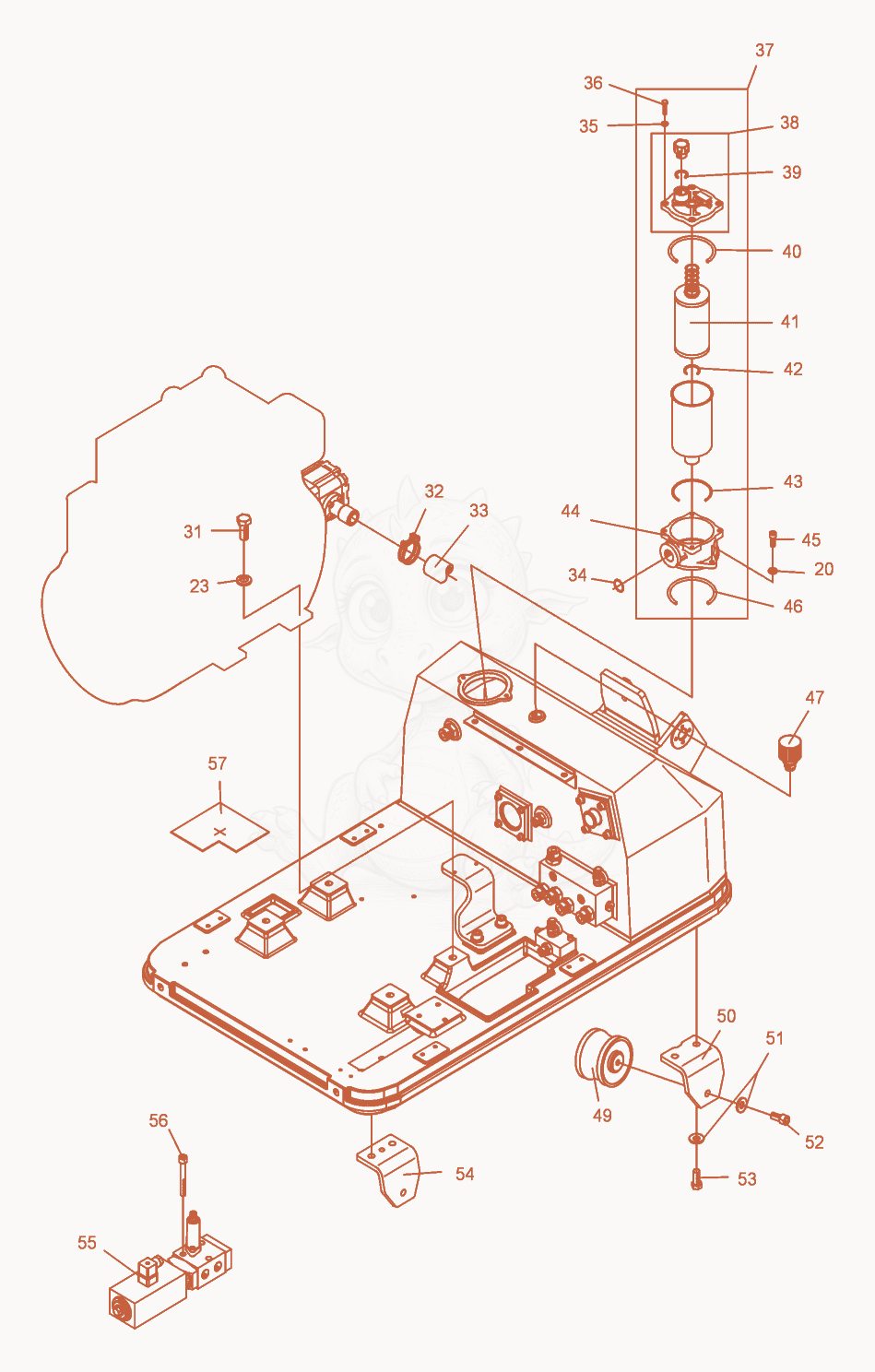

Despiece del Upper Mass cpl. de una máquina Wacker Neuson DPU100-70, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 315000011522
    $0.62
    SCREW M16 X 35 HX.HD. - 5000011522×4
  • 325000095966
    $14.52
    CLIP-HOSE - 5000095966×2
  • 335000097505
    $52.78
    CLIP-HOSE - 5000097505×1
  • 345000047262
    $0.97
    SEAL-RING 27 X 32 - 5000047262×2
  • 355000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×4
  • 365000011469
    $0.09
    SCREW M6 X 25 HX.HD. - 5000011469×4
  • 375000095970
    $121.20
    FILTER-RETURN - 5000095970×1
  • 385000048072
    $13.06
    Cover - 5000048072×1
  • 395000048071
    $3.23
    O-RING 108 X 2-70 Sh - 5000048071×1
  • 405000048073
    $10.44
    O-RING 109 X 2-70 Sh - 5000048073×1
  • 415000102302
    $41.88
    INSERT-FILTER,HYDRAULIC - 5000102302×1
  • 425000048078
    $0.88
    O-RING 109 X 5-70 Sh - 5000048078×1
  • 435000048077
    $1.38
    O-RING 109 X 3-70 Sh - 5000048077×1
  • 445000048074
    $94.77
    FLANGE-HYD.OIL FILTER - 5000048074×1
  • 455000012629
    $0.44
    SCREW M8 X 22 SOC.HD. - 5000012629×2
  • 465000048075
    $3.05
    O-RING 109 X 4-70 Sh - 5000048075×1
  • 475000095495
    $82.95
    VENT PLUG - 5000095495×1
  • 495000044640
    $207.45
    SHOCKMOUNT 100 X 67-45SH,FRM C - 5000044640×4
  • 505000105856
    $257.39
    BRACKET-REAR - 5000105856×2
  • 515000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×16
  • 525000011530No la vendemos
    Cheese head screw×8
  • 535000011423
    $0.75
    SCREW M12 X 30 HX.HD. - 5000011423×8
  • 545000097253
    $298.86
    BRACKET-FRONT - 5000097253×2
  • 555000105833
    $2,508.83
    VALVE-CONTROL SLIDE - 5000105833×1
  • 565000102444
    $59.53
    SCREW M10 X 70,SOC.HD. - 5000102444×3
  • 575000099720
    $10.32
    COVER - 5000099720×1
