DPU 100-70Le VIBROPLATE

Despiece de Upper Mass · DPU100-70

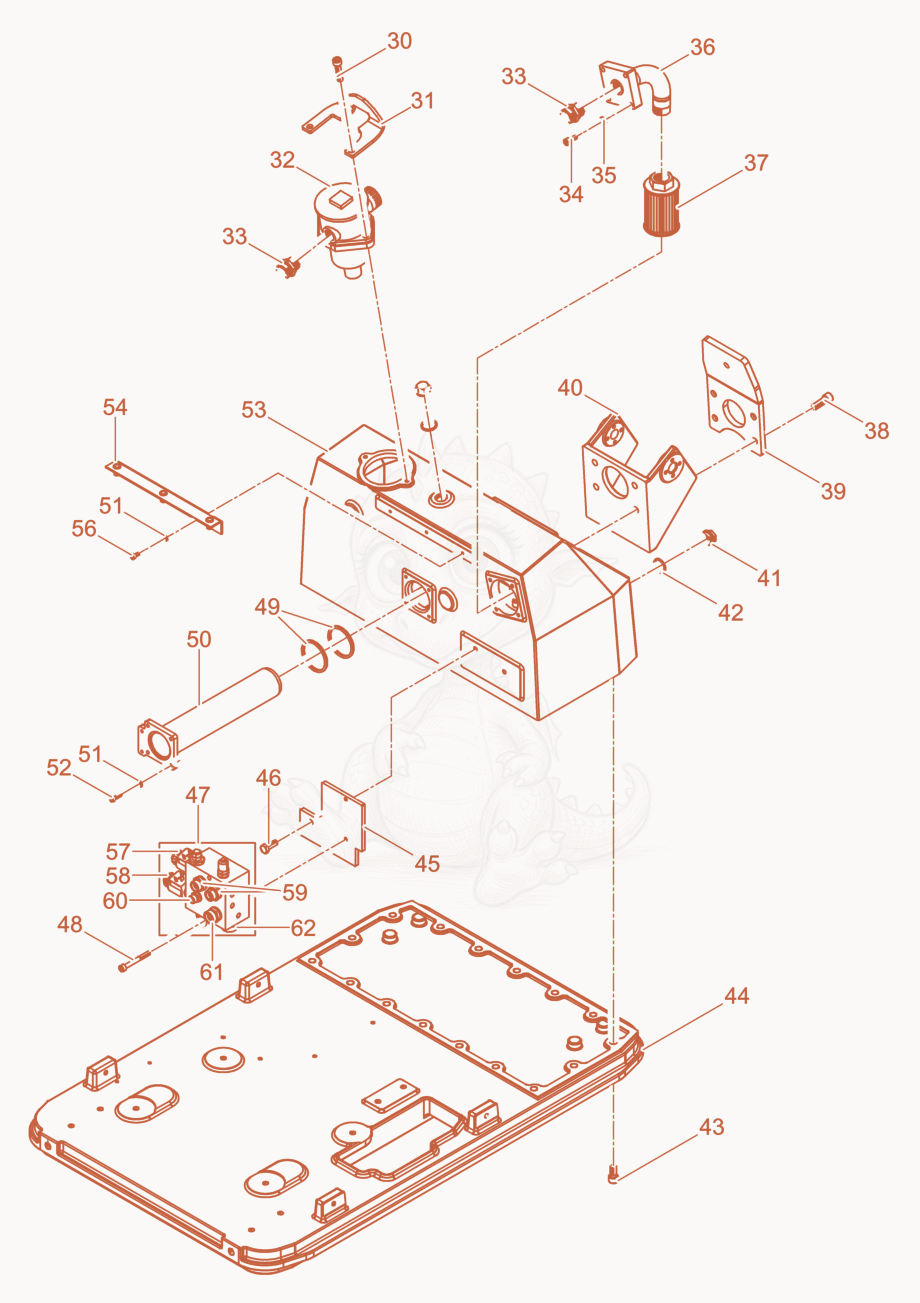

Despiece del Upper Mass de una máquina Wacker Neuson DPU100-70, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

305000011532
$0.96
SCREW M10 X 40 8.8,SOC - 5000011532×2
315000204137
$78.62
PLATE GUARD - 5000204137×1
325000201838
$546.28
X-5000220469 FILTER-RETURN - 5000201838×1
335000046094
$9.00
FITTING-PIPE L22R - 5000046094×2
345000011541
$1.06
SCREW M8 X 30 SOC.HD. - 5000011541×4
355000010622
$0.10
WASHER-FLAT,M8,ZINC - 5000010622×4
365000201529
$333.53
PIPE-INTAKE - 5000201529×1
375000019178
$136.24
INSERT-VACUUM FILTER - 5000019178×1
385000011528
$0.92
SCREW M12 X 35 SOC.HD. - 5000011528×4
395000129816
$354.72
LOCK-PLATE - 5000129816×1
405000200613
$622.63
BRACKET - 5000200613×1
415000024838
$30.76
PLUG M26 X 1.5 HX.HD. - 5000024838×2
425000032006
$2.09
SEAL-RING 26 X 31 - 5000032006×2
435000011530No la vendemos
Cheese head screw×16
445000203249
$4,664.18
CONSOLE-UPPER MASS - 5000203249×1
455000129177
$219.35
PLATE-INTERMEDIATE - 5000129177×1
465000011440
$0.36
SCREW M10 X 25 HX.HD. - 5000011440×2
475000129176
$2,209.67
block-hydraulic - 5000129176×1
485000013576
$0.99
SCREW M8 X 70 SOC.HD. - 5000013576×2
495000097643
$0.66
GASKET - 5000097643×2
505000097267
$242.40
tube - 5000097267×1
515000058381
$0.13
WASHER-LOCK 6 FST - 5000058381×7
525000011551
$0.20
SCREW M6 X 20 SOC.HD. - 5000011551×4
535000201534
$3,286.58
Tank - 5000201534×1
545000098355
$73.67
ANGLE - 5000098355×1
565000011554
$0.13
SCREW M6 X 12 SOC.HD. - 5000011554×3
575000204841
$2,047.68
VALVE 1 - 5000204841×1
585000204842
$490.83
VALVE 2 - 5000204842×1
595000046093
$9.67
FITTING-PIPE L15R - 5000046093×2
605000046461
$6.50
FITTING-PIPE L10R - 5000046461×1
615000063739
$10.59
FITTING-PIPE L18R - 5000063739×1
625000046094
$9.00
FITTING-PIPE L22R - 5000046094×1
