Vibration Plate DPU 2440F WGB

Despiece de Vibratory Plate cpl. · DPU2440F

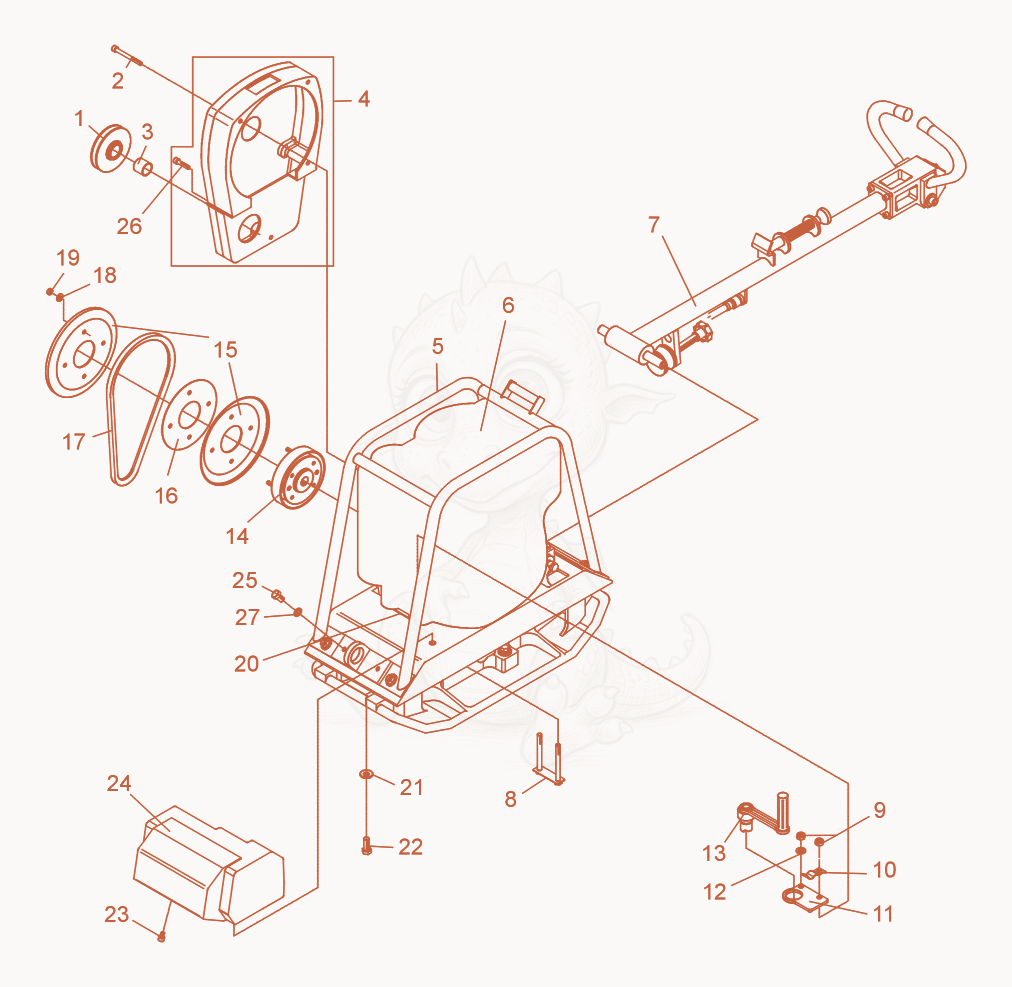

Despiece del Vibratory Plate cpl. de una máquina Wacker Neuson DPU2440F, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15000047051
    $181.03
    PULLEY,DPU2430 - 5000047051×1
  • 25000012379
    $1.13
    SCREW M8 X 80 SOC.HD. - 5000012379×3
  • 35000047081
    $6.06
    RING BN32 X 12 - 5000047081×1
  • 45000047277No la vendemos
    Belt guard×1
  • 55000047127
    $2,231.99
    Frame Protective 5000047127×1
  • 65000200580
    $6,186.41
    Engine-Diesel - 5000200580×1
  • 85000044713
    $159.43
    FITTING - 5000044713×2
  • 95000106740No la vendemos
    Hexagon nut×4
  • 105000038544
    $9.37
    CLAMP-CRANK HOLDER SPRING CLIP - 5000038544×1
  • 115000038427
    $9.91
    HOLDER-CRANK - 5000038427×1
  • 125000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×3
  • 135000058288
    $577.14
    CRANK,DPU2430 - 5000058288×1
  • 145000047083
    $1,041.85
    CLUTCH,DPU2430 - 5000047083×1
  • 155000045746
    $50.85
    BELT-V,PULLEY-HALF - 5000045746×2
  • 165000045710
    $14.32
    WASHER - 5000045710×2
  • 175000058322
    $14.55
    BELT-V,DPU2430 - 5000058322×1
  • 185000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×8
  • 195000010882
    $0.05
    NUT M8 8,HEX - 5000010882×8
  • 205000103540
    $19.12
    plate - 5000103540×2
  • 215000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×11
  • 225000011423
    $0.75
    SCREW M12 X 30 HX.HD. - 5000011423×3
  • 235000013574
    $0.44
    SCREW M8X12 SOC.HD - 5000013574×1
  • 245000099265No la vendemos
    Supplementary weight×1
  • 255000014316
    $0.98
    SCREW M12 X 16 HX.HD. - 5000014316×2
  • 265000011540
    $0.55
    SCREW M8 X 35 SOC.HD. - 5000011540×1
  • 275000010740
    $0.23
    WASHER 13 - 5000010740×2
