Vibratory Plate DPU 3050Hw US Army

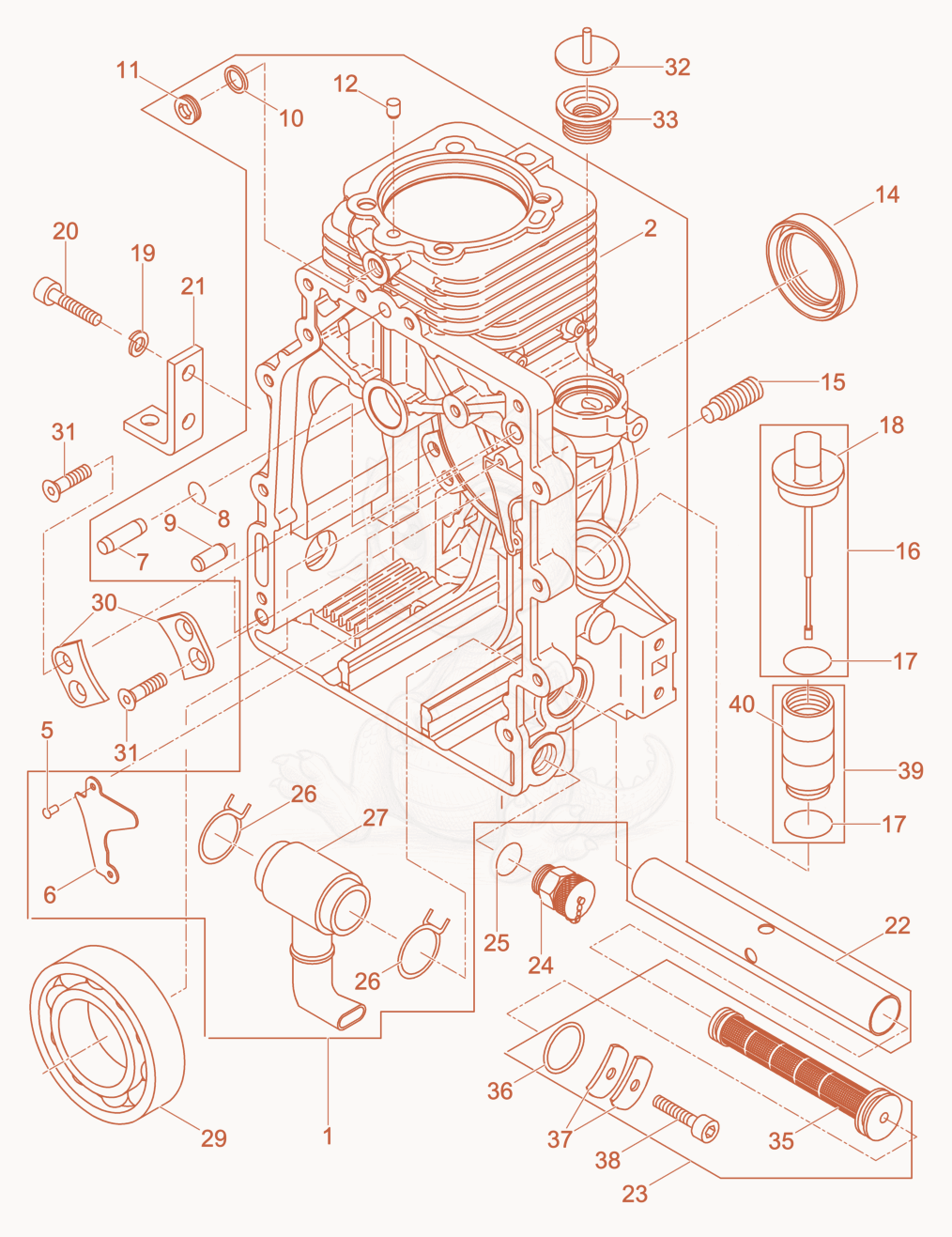

Despiece de Crankcase · DPU3050HWUSARMY
- HOUSING-CRANKCASE - 5000202331×1
- RIVET-BLIND,3.2 - 5000151209×2
- Cover - 5000227663×1
- PIN-CYLINDER,8 M6 X 24 - 5000128964×1
- O-RING 8 X 1.5 - 5000108696×1
- PIN-CYLINDER, 8M 6X20 - 5000108694×1
- SEAL-RING A10 X 13.5,COPR - 5000071121×1
- SCREW M10X1 5.8 A3C - 5000151213×1
- SEAL-OIL, 40X55X10 - 5000151215×1
- SCREW-GRUB - 5000108680×1
- dipstick - 5000128995×1
- RING-SEALING - 5000151217×1
- WASHER-SPRING - 5000151218×8
- SCREW M8 X 35,ALLEN - 5000108683×8
- BRACKET-ENGINE - 5000108682×4
- TUBE-OIL FILTER - 5000151221×1
- X-5100016522 FILTER-OIL - 5000108685×1
- VALVE-DRAIN OIL - 5000128998×1
- SEAL-OIL - 5000202416×1
- CLIP-HOSE - 5000108688×2
- HOUSING INTAKE COMPLETE - 5000209846×1
- BEARING-BALL,GROOVED - 5000151226×1
- PLATE - 5000108692×2
- SCREW-COUNTERSUNK M6 X 16 - 5000209740×4
- COVER - 5000108676×1
- Diaphragm - 5000094884×1
- O-RING, 20X4 - 5000151229×1
- SPRING-PLATE - 5000151230×2
- SCREW-ALLEN, M6X16 - 5000151231×1
- OIL FILTER EXTENSION - 5000129023×1
