V.Plate DPU 4045Ye

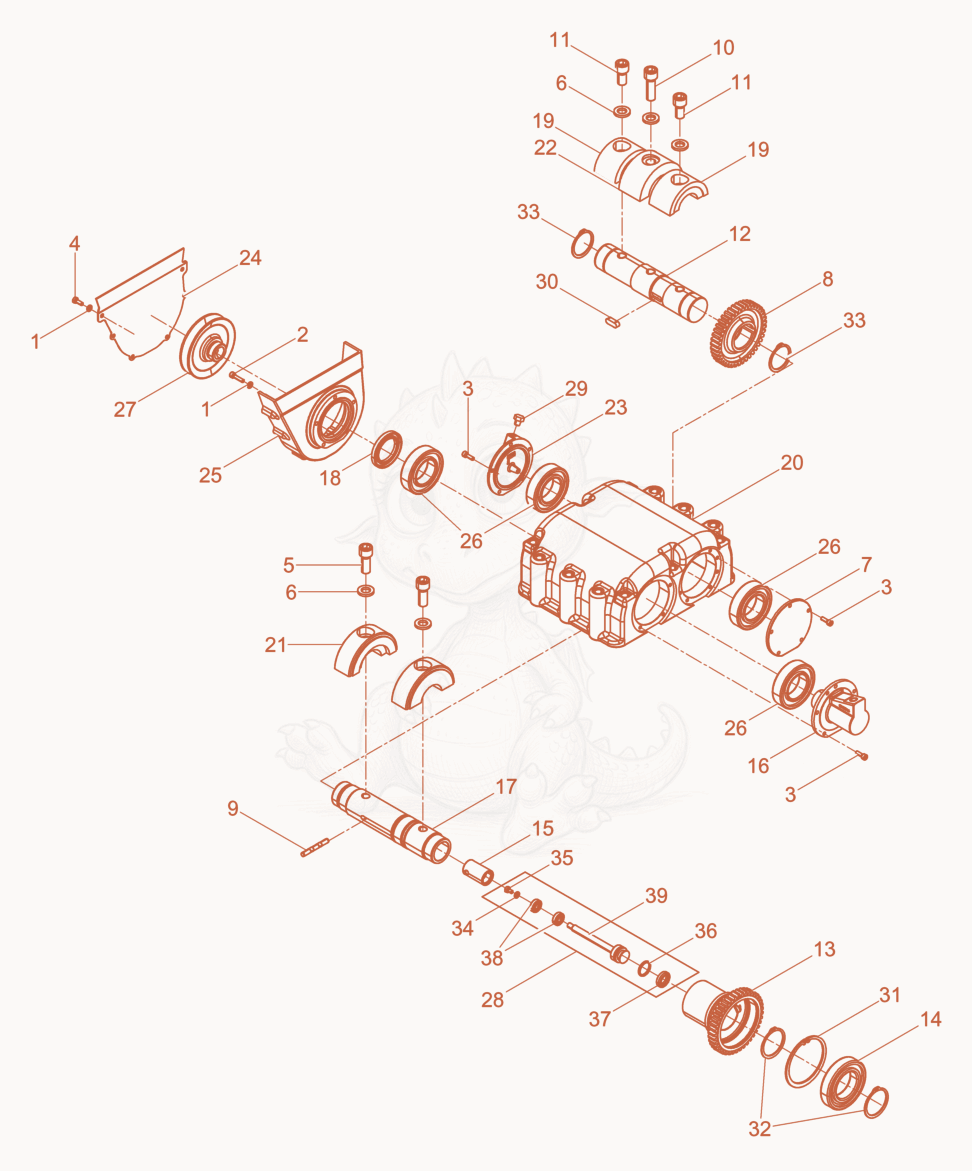

Despiece de Exciter · DPU4045YE
- WASHER B6.4 FLAT - 5000010624×11
- SCREW M6 X 25 SOC.HD. - 5000011550×5
- SCREW M6 X 18 SOC.HD. - 5000011552×15
- SCREW M6 X 16 HX.HD. - 5000014663×6
- SCREW M16 X 40 SOC.HD.X-5100034546 - 5000018224×2
- WASHER-LOCK HS16,HIGH TENSION - 5000021988×5
- Cover - 5000039110×1
- GEAR - 5000039116×1
- PIN - 5000043382×1
- SCREW M16 X 50 10.9,SOC - 5000043812×1
- SCREW M16 X 30 SOC.HD. - 5000044634×2
- SHAFT-EXCITER NO.1 - 5000046359×1
- SLEEVE-EXCITER ADJUSTMENT - 5000046363×1
- BEARING-RADL BALL 6211 - 5000046366×1
- PIN - 5000048546×1
- COVER - 5000048604×1
- SHAFT-EXCITER NO. 2 - 5000129858×1
- SEAL-SHAFT 48 X 72 X 7,4B - 5000048854×1
- ECCENTRIC WEIGHT - 5000126262×2
- HOUSING-EXCITER - 5000099059×1
- 215000209496No la vendemosEccentric weight III×2
- 225000209494No la vendemosEccentric weight I×1
- COVER-VENTED - 5000102144×1
- PLATE-COVER - 5000102721×1
- BELTGUARD - 5000102724×1
- BEARING-CYL.RLR,NJ2210-ECP-C4 - 5000103469×4
- V-belt pulley - 5000216567×1
- PISTON BOLT ASSY.COMPL. - 5000105195×1
- SCREW - 5001103030×1
- KEY A10 X 8 X 30 - 5002001399×1
- RET.RING-INT 100MMX3MM, - 5002001725×1
- RET.RING-EXT 55MMX2MM, - 5002004822×2
- RET.RING-EXT 50MMX2MM, - 5002006113×2
- WASHER B6.4 FLAT - 5000010624×1
- SCREW M6 X 10 HX.HD. - 5000012356×1
- RET.RING-INT 24MMX1.2MM, - 5000037136×1
- Lip seal ring 30x20x6,5 - 5000043203×1
- BEARING-RADIAL BALL - 5000105193×2
- PISTON - 5000105206×1
