DPU4545Heh

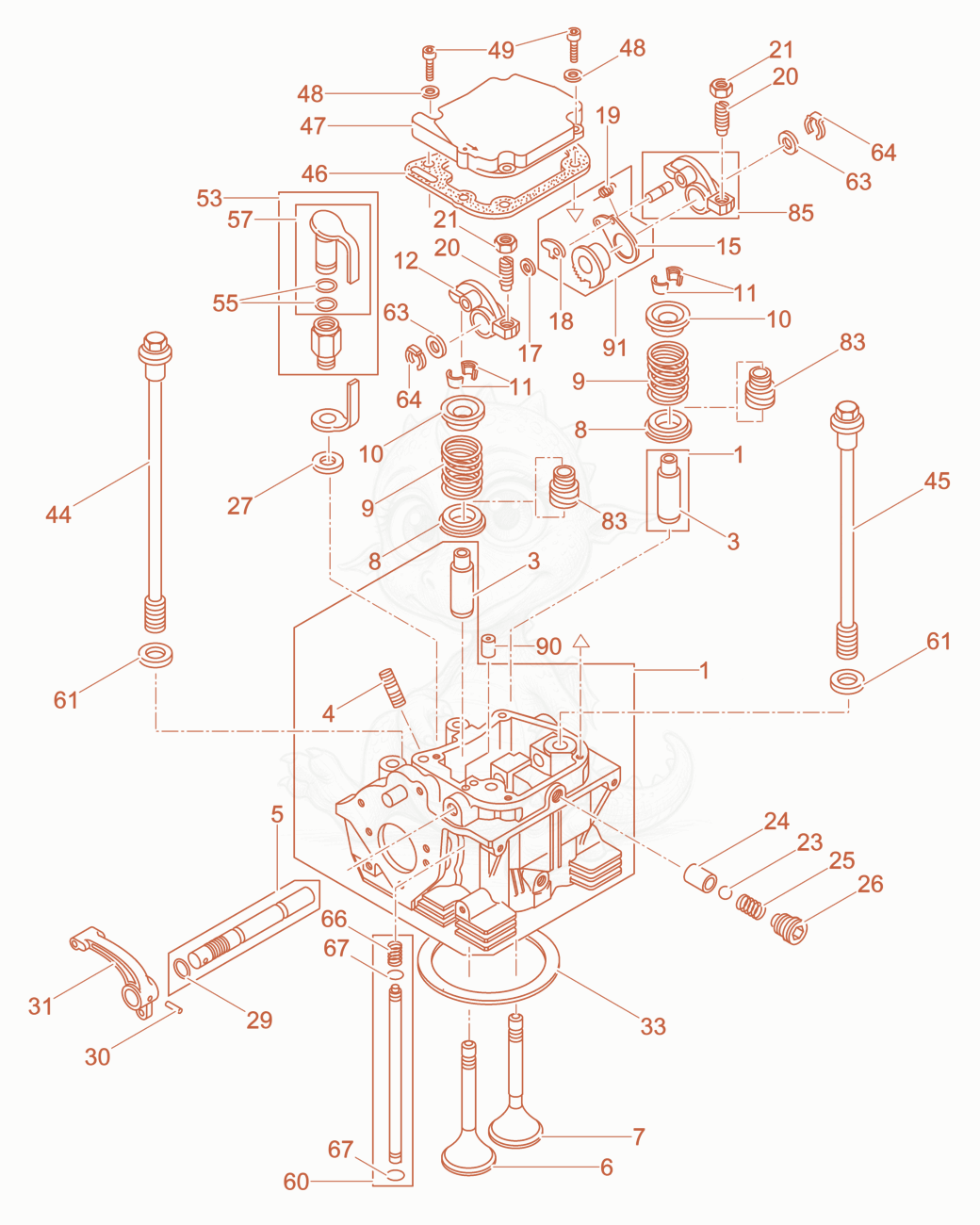

Despiece de Cylinder head · DPU4545HEH
- CYLINDER HEAD CPL. - 5000226582×1
- GUIDE-VALVE - 5000126916×2
- STUD M8 X 40 - 5000201378×1
- SHAFT ROCKER - 5000106565×1
- VALVE-INLET - 5000207806×1
- VALVE-EXHAUST - 5000207807×1
- 85000094902No la vendemosWasher×2
- SPRING-VALVE - 5000104370×2
- PLATE-SPRING - 5000104369×2
- SET-VALVE CONES - 5000047964×2
- ROCKER ARM INTAKE - 5000098449×1
- HOLDER - 5000094895×1
- CLIP-RETAINING - 5000202427×1
- RATCHET-PAWL - 5000094897×1
- Spring - 5000094894×1
- SCREW-ADJUSTING - 5000094891×2
- NUT-LOCK 5/16X24 - 5004101500×2
- Ball - 5000066801×1
- Bush - 5100032122×1
- Spring - 5000094887×1
- Screw - 5000094888×1
- SEAL-RING 12 X 15.5 - 5000013186×1
- O-RING 8X2 - 5000108801×1
- SLEEVE-DOWEL,SPR.4X22 - 5000020183×1
- LEVER-DECOMPRESSION - 5000094909×1
- GASKET 1.25 - 5000207803×1
- GASKET 1.15 - 5000207802×1
- GASKET 1.05 - 5000207801×1
- GASKET 0.95 - 5000207800×1
- GASKET 0.85 - 5000207799×1
- GASKET 0.75 - 5000207798×1
- GASKET 0.65 - 5000207797×1
- GASKET 0.55 - 5000207796×1
- GASKET 0.45 - 5000207795×1
- GASKET 0.35 - 5000207794×1
- SEAL 1.3MM - 5000104387×1
- SEAL 1.2MM - 5000104386×1
- SEAL 1.1MM - 5000104385×1
- SEAL 1.0MM - 5000104384×1
- SEAL 0.9MM - 5000104383×1
- SEAL 0.8MM - 5000104382×1
- SEAL 0.7MM - 5000104381×1
- SEAL 0.6MM - 5000104380×1
- SEAL 0.5MM - 5000104379×1
- SEAL 0.4MM - 5000104378×1
- SEAL 0.3MM - 5000104377×1
- BOLT-CYLINDER HEAD - 5000104363×2
- Cylinder head bolt - 5100032123×2
- 465100051932No la vendemosGasket×1
- COVER-VALVE - 5000098444×1
- WASHER-SPRING, A6 - 5000151290×4
- SCREW-ALLEN HD,M6X25-8.8 A3C - 5000129010×4
- PRIMER-FUEL - 5000102468×1
- O-RING 11.3 X 2.4 - 5000107390×2
- PLUG - 5000102469×1
- TUBE-OIL - 5000104373×1
- Washer - 5000104365×4
- 635000104388No la vendemosWasher×2
- RET.RING - 5000104389×2
- Spring - 5000094903×1
- O-Ring - 5000094905×2
- Seal - 5000104371×2
- ROCKER ARM EXHAUST - 5000098448×1
- pin - 5000202405×1
- GEAR SEGMENT - 5000126917×1
