Vibroplate DPU5045

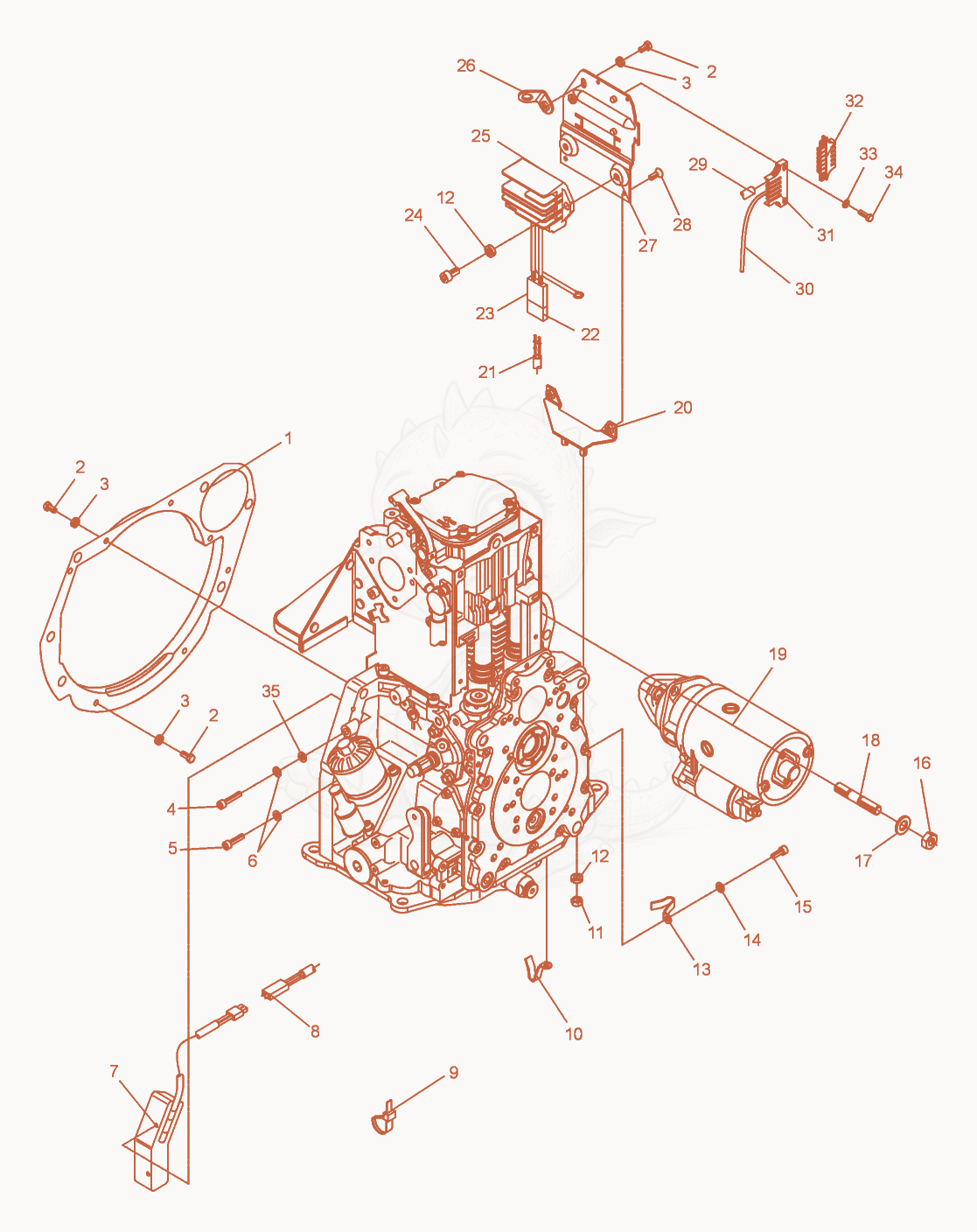

Despiece de Starter · DPU5045H
- PLATE-BAFFLE - 5000104432×1
- SCREW M6 X 12 HX.HD. - 5000012357×6
- WASHER-LOCK B6 - 5000010649×6
- SCREW M6X30 SOC.HD - 5000011268×1
- SCREW M6 X 25 SOC.HD. - 5000011269×1
- Washer - 5000099521×2
- Coil - 5000129024×1
- Plug - 5000102471×1
- CABLE-TIE 4.0 X 130MM,NO MOUNT - 5000038489×8
- Clamp - 5000102472×2
- NUT M8 8,HEX - 5000010882×2
- WASHER-LOCK B8 - 5000012397×4
- Clamp - 5000097590×2
- WASHER B6.4 FLAT - 5000010624×1
- SCREW M6 X 12 SOC.HD. - 5000011554×1
- NUT - 5000097428×2
- WASHER B13 FLAT - 5000010620×1
- NLA STUD M12 X 50 - 5000095076×2
- STARTER COMPLETE - 5000129926×1
- RETAINER - 5000104435×1
- WIRE-ELECTRICAL - 5000097594×1
- PIN-BUSHING - 5000099522×1
- Plug - 5000102473×1
- SCREW M8 X 16 SOC.HD. - 5000011544×2
- 255000097589No la vendemosRegulator×1
- ANGLE - 5000104436×1
- PLATE - 5000097592×1
- SCREW M6 X 12 FLAT HD. - 5000013479×2
- CABLE - 5000102474×1
- CABLE-ELE. - 5000095075×1
- CONNECTOR-PIN - 5000095074×1
- PLUG-PIN - 5000095073×1
- WASHER B5.3 FLAT - 5000010625×2
- SCREW M5 X 16 HX.HD. - 5000011476×2
- WASHER-FLAT 6.4 - 5000151324×1
