Vibratory Plate DPU 6555Heap

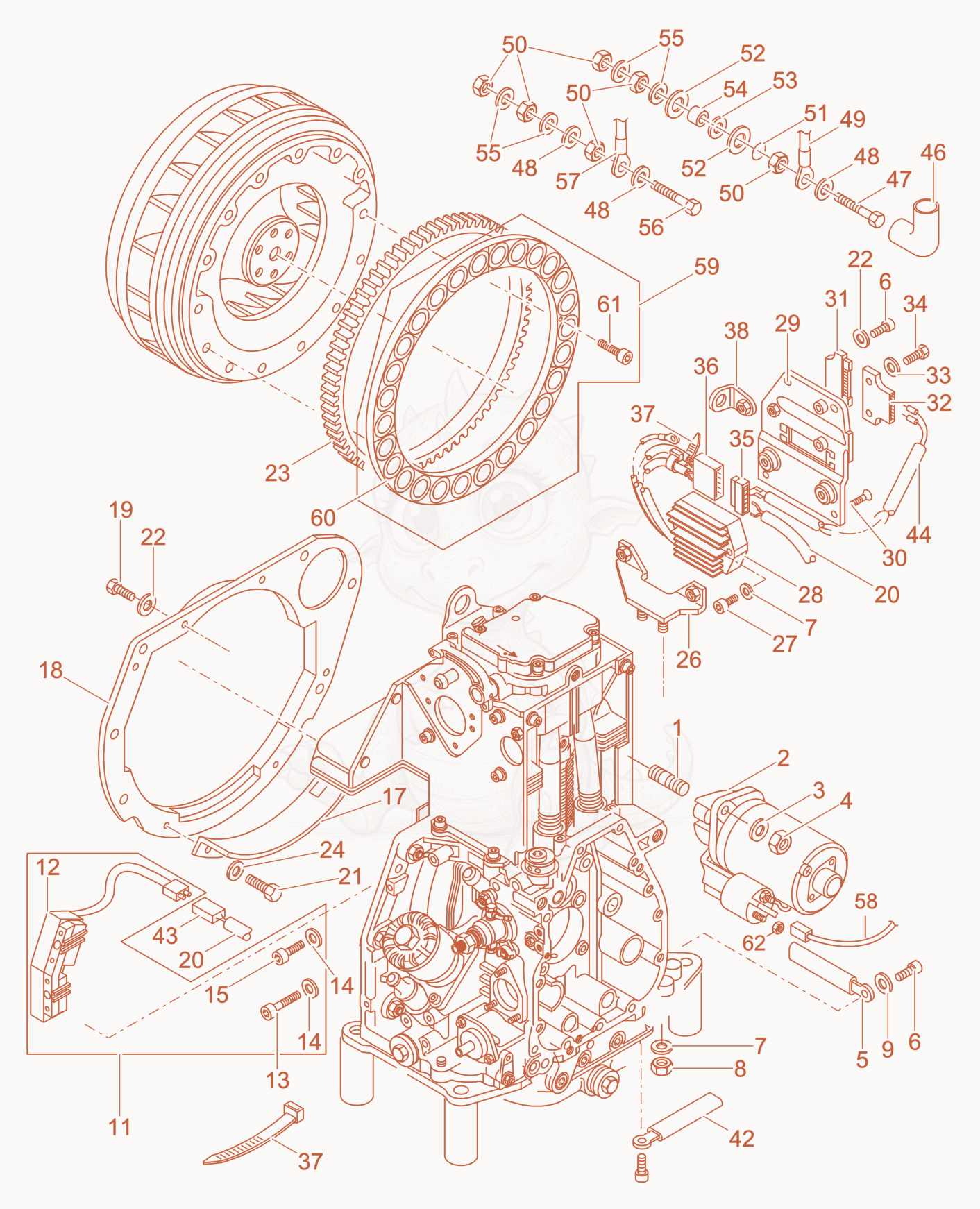

Despiece de Starter-Generator · DPU6555HEAP
- STUD M12 X 50 - 5000203131×2
- STARTER COMPLETE 1D81 ONLY - 5000129769×1
- washer A13 - 5000203132×2
- NUT - 5000097428×2
- Clamp - 5000097590×2
- SCREW-ALLEN, M6X16 - 5000151231×1
- WASHER-SPRING - 5000151218×4
- NUT M8 8 A3C - 5000151379×2
- WASHER-FLAT 6.4 - 5000151324×1
- Coil - 5000097588×1
- SCREW M6X40,SOC.HD. - 5000207612×1
- WASHER-SPRING - 5000207593×2
- SCREW-ALLEN M6X30 - 5000203134×1
- PLATE-GUARD - 5000095068×1
- PLATE-BAFFLE - 5000095067×1
- cable - 5000207562×1
- SCREW-M6 X 12 - 5000202436×5
- WASHER-SPRING 6 A3C - 5000151456×4
- GEAR-RING - 5000096597×1
- WASHER-FLAT 6.4 - 5000151324×2
- HOLDER - 5000097591×1
- SCREW-ALLEN,M8 X 35 - 5000202440×2
- 285000217094No la vendemosRegulator×1
- PLATE - 5000097592×1
- SCREW-M6X12 8.8 A3C - 5000151387×2
- CONNECTOR-PIN - 5000095074×1
- WASHER 5.3, A3C - 5000129517×2
- SCREW M5X25,HEX - 5000207590×2
- PIN-BUSHING - 5000099522×1
- Plug - 5000102473×1
- 375000109710No la vendemosTie cable×4
- Angle - 5000097593×1
- Clamp - 5000102472×2
- Plug - 5000102471×1
- CABLE - 5000102474×1
- CABLE-ELE. - 5000095075×1
- RING-MAGNET - 5000107224×1
- SCREW M4X16 A3C-8.8,CH.HD. - 5000129026×14
- Nut - 5000108848×1
- Angle - 5000097595×1
- WASHER 5.3, A3C - 5000129517×2
- SCREW M5X16,SOC.HD. - 5000207529×2
