DPU6555Hes

Despiece de Fuel System · DPU6555HES

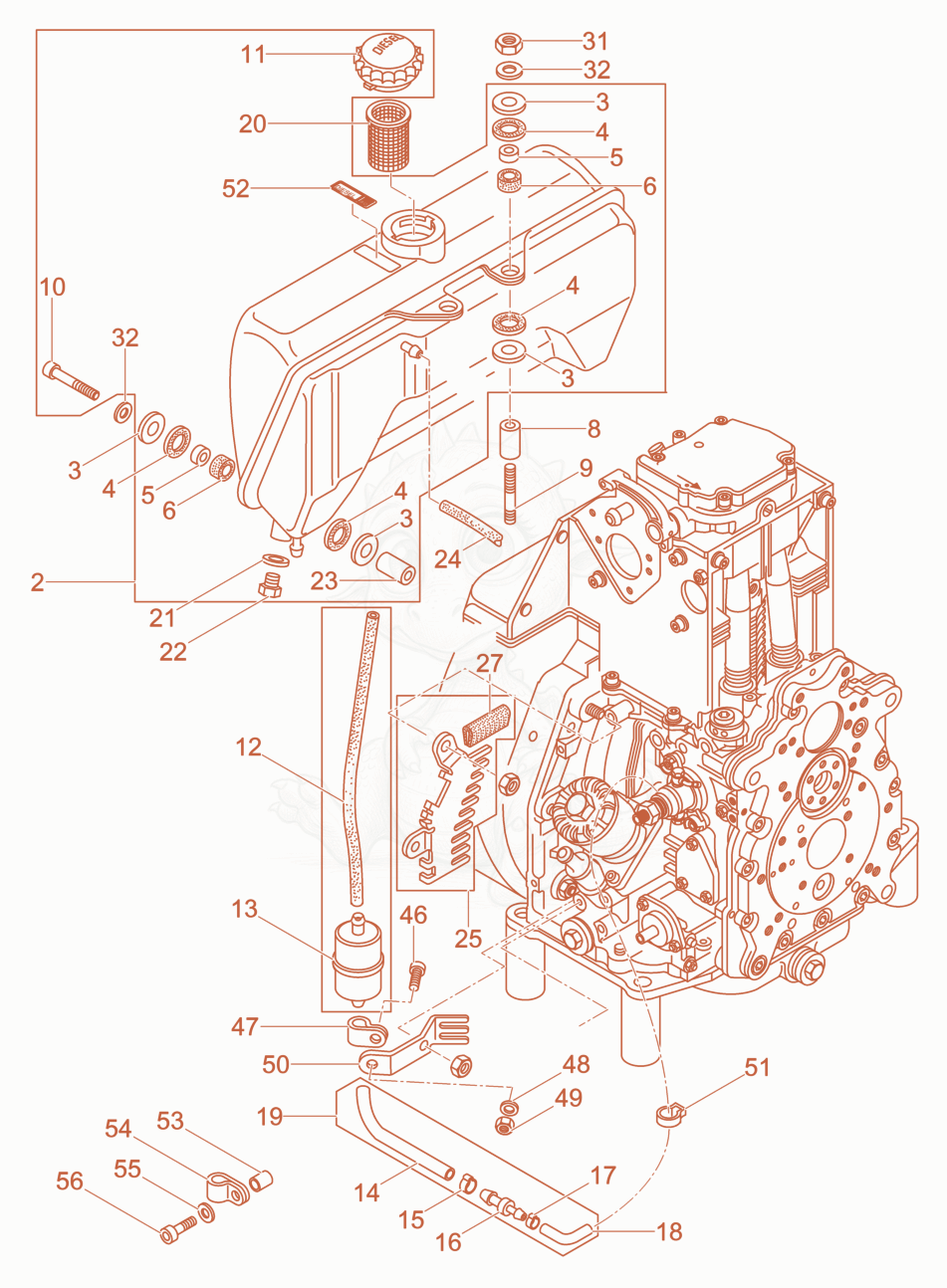

Despiece del Fuel System de una máquina Wacker Neuson DPU6555HES, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 25000095081
    $1,800.24
    TANK-FUEL - 5000095081×1
  • 35000151344
    $8.06
    washer - 5000151344×12
  • 45000095355
    $14.34
    WASHER-RUBBER - 5000095355×12
  • 55000095356
    $8.06
    BUSHING - 5000095356×6
  • 65000095357
    $7.02
    SLEEVE-RUBBER - 5000095357×6
  • 85000095082
    $24.90
    BUSHING - 5000095082×2
  • 95000031063
    $11.94
    STUD M8 X 75 - 5000031063×2
  • 105000207613
    $7.71
    SCREW M8X40,SOC.HD. - 5000207613×4
  • 115000099523
    $28.00
    CAP-TANK 60MM DIA - 5000099523×1
  • 125100051942No la vendemos
    Fuel hose×1
  • 135100046186
    $20.16
    Diesel filter - 5100046186×1
  • 145000217991
    $32.02
    HOSE - 5000217991×1
  • 155000203655
    $11.57
    CLAMP-HOSE 16.0 - 5000203655×1
  • 165000207583
    $17.38
    FITTING-NIPPLE - 5000207583×1
  • 175000207586
    $11.94
    CLAMP-HOSE - 5000207586×1
  • 185100032126No la vendemos
    Fuel hose×1
  • 195100051958No la vendemos
    Fuel hose cpl.×1
  • 205000095358
    $46.04
    STRAINER 50MM DIA. - 5000095358×1
  • 215000020071
    $8.06
    SEAL-RING 10 X 16 - 5000020071×1
  • 225000202413
    $36.45
    PLUG-DRAIN - 5000202413×1
  • 235000099786
    $11.94
    BUSHING - 5000099786×4
  • 245000207574
    $6.82
    HOSE-FUEL LINE 5 X 50 - 5000207574×1
  • 255000207536
    $32.65
    COVER-PROTECTION - 5000207536×1
  • 275000104421No la vendemos
    Profiled joint×1
  • 315000151379
    $8.06
    NUT M8 8 A3C - 5000151379×2
  • 325000151218
    $8.06
    WASHER-SPRING - 5000151218×6
  • 465000202338
    $8.06
    SCREW M6 X 16 DIN933,HEX - 5000202338×1
  • 475000107451
    $11.94
    Clamp - 5000107451×2
  • 485000151324
    $8.06
    WASHER-FLAT 6.4 - 5000151324×1
  • 495000151323
    $8.06
    NUT-HEX M6 8 A3C - 5000151323×1
  • 505000207537
    $37.53
    COVER-PROTECTION - 5000207537×1
  • 515000226598
    $11.94
    CLAMP-HOSE,12 - 5000226598×1
  • 525000129791
    $10.79
    LABEL-DIESEL - 5000129791×1
  • 535000207522
    $16.49
    BUSHING-DISTANCE - 5000207522×1
  • 545000107451
    $11.94
    Clamp - 5000107451×1
  • 555000151456
    $8.06
    WASHER-SPRING 6 A3C - 5000151456×1
  • 565000129010
    $8.06
    SCREW-ALLEN HD,M6X25-8.8 A3C - 5000129010×1
