DPU6555Hesh

Despiece de Upper mass · DPU6555HESH

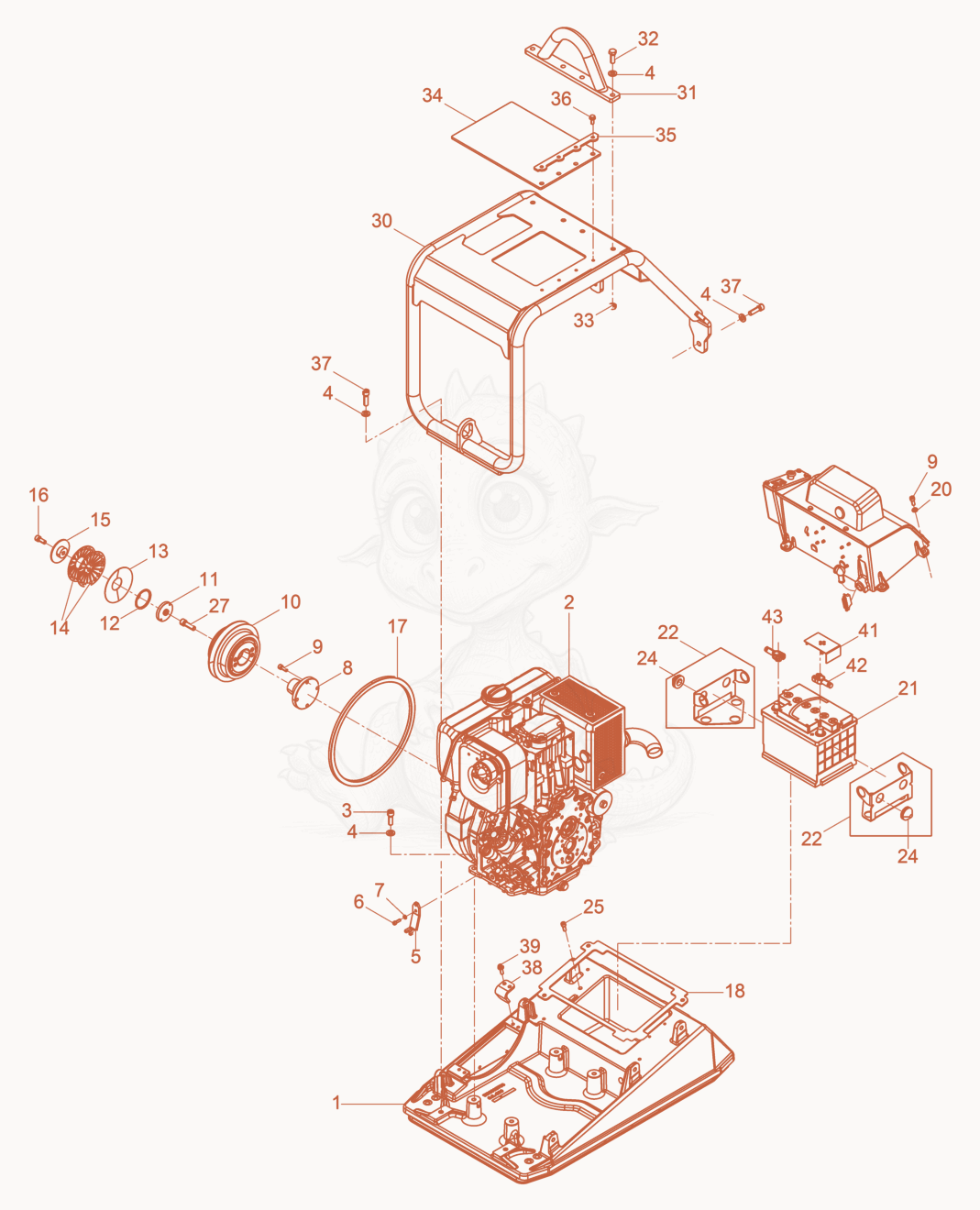

Despiece del Upper mass de una máquina Wacker Neuson DPU6555HESH, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15100003737
    $2,924.71
    Upper Mass - 5100003737×1
  • 25100043177
    $27,762.66
    Diesel Motor 1D81S - 5100043177×1
  • 35000011528
    $0.92
    SCREW M12 X 35 SOC.HD. - 5000011528×4
  • 45000021465
    $2.70
    WASHER-LOCK HS12,HIGH TENSION - 5000021465×12
  • 55000103893
    $14.90
    BRACKET-MOUNTING - 5000103893×1
  • 65000011551
    $0.20
    SCREW M6 X 20 SOC.HD. - 5000011551×2
  • 75000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×2
  • 85000069900
    $137.31
    Flange - 5000069900×1
  • 95000012629
    $0.44
    SCREW M8 X 22 SOC.HD. - 5000012629×8
  • 105000102208No la vendemos
    Coupling cpl.×1
  • 115000058546
    $68.09
    DISC-CENTRIFUGAL CLUTCH - 5000058546×1
  • 125000021147
    $1.06
    RET.RING-INT 60MMX2MM, - 5000021147×1
  • 135000048273
    $10.45
    GASKET-RUBBER - 5000048273×1
  • 145000048374
    $16.62
    SPRING-BELLEVILLE TYPE - 5000048374×2
  • 155000058547
    $127.35
    PLATE-CLUTCH FACE - 5000058547×1
  • 165000011534
    $0.94
    SCREW M10 X 30 SOC.HD. - 5000011534×1
  • 175000048539No la vendemos
    Seal×1
  • 185000220183
    $23.73
    Gasket - 5000220183×1
  • 205000010742No la vendemos
    Washer×4
  • 215100021329
    $503.87
    Battery - 5100021329×1
  • 225100011287
    $85.29
    Battery protection cpl. - 5100011287×2
  • 245000124255
    $5.64
    SHOCK ABSORBER - 5000124255×19
  • 255000013574
    $0.44
    SCREW M8X12 SOC.HD - 5000013574×1
  • 275100010091
    $1.06
    Cheese head screw M12x 40 - 5100010091×1
  • 305000220339
    $936.31
    LIFT FRAME - 5000220339×1
  • 315000099055
    $118.33
    BRACKET-LIFTING EYE - 5000099055×1
  • 325000011422
    $0.84
    SCREW M12 X 35 HX.HD. - 5000011422×4
  • 335000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×4
  • 345000099535
    $126.70
    Plate - 5000099535×1
  • 355000099047
    $77.39
    MOUNT-STRIP - 5000099047×1
  • 365000105944
    $1.01
    SCREW M8 X 20-ST, D7500 DE - 5000105944×4
  • 375000201094
    $1.60
    SCREW M12X50 10.9 - 5000201094×4
  • 385000220334
    $14.90
    Angle - 5000220334×2
  • 395000129420
    $1.55
    SCREW-CAP,SOCKET HEAD - 5000129420×4
  • 415100011307
    $4.24
    Positive pol cover - 5100011307×1
  • 425100015202
    $21.62
    Pole Terminal Positive - 5100015202×1
  • 435100015203
    $22.48
    Pole Terminal Negative - 5100015203×1
